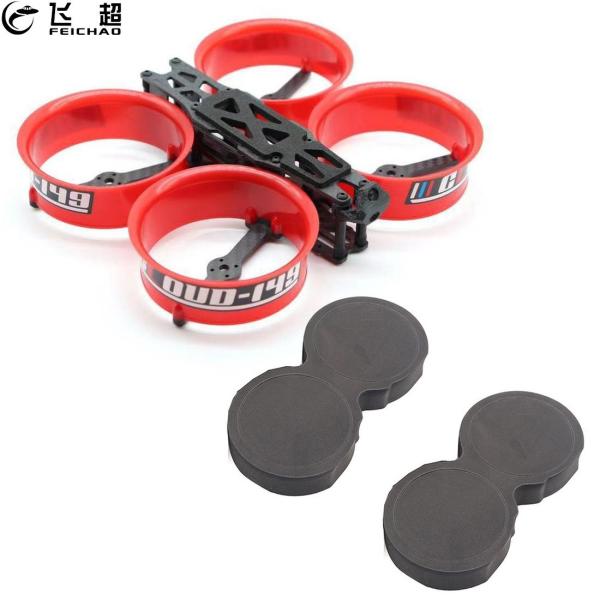

FEICHAO CLOUD-149HD CLOUD 149mm 3 Inch Frame Kit X-type ABS Carbon Fiber CLOUD 149 with Sponge for FPV RC Drone FPV Racing
Specification:
Brand Name: FEICHAO
Wheelbase: 149mm
Upper plate length:156mm
Lower plate length:156mm
Weight: 115g (Include print part)
Bottom plate: 2mm
Top plate: 2mm
Arm plate:3mm
Position of Flight Controller installation hole: 20*20mm/30.5*30.5mm
Camera mounting hole distance:20mm
Distance of installation hole of motor:12mm
Plastic parts: ABS material plastic Diversion ring
Printed parts: TPU antenna base
Features:
1. Suitable for FPV System
2. Video unocclusion
3. Beautifully designed,rugged and durable
4. High quality carbon plate,precision cutting
5. Includes 3D printed Parts for installing FPV System
Recommend Parts:
Flight Controller: 20x20mm OR 30.5x30.5mm RF / Kiss / F4 / F3 / F7 Flight Controller
Brushless ESC: 20A-50A
Propeller: 3 Inch Propeller
Brushless Motor: 1306 / 1408 / 1506 Motor
VTX & FPV Camera: FPV Air Unit
Battery: 4S 650mAh - 6S 1300mAh Lipo
The following parts are compatible: ( NOT Included)
Flight Controller & ESC Stack: 20x20mm iFlight SucceX-D Mini F7 TwinG Stack (F7+40A ESC)
Brushless Motor: MAMBA 1408 4000KV 4S Brushless Motor
Propeller: 2 Pairs iFlight MegaBee V2 Parts 3045 3x4.5 3 Inch 3-Blade Propeller
VTX & Camera: Digital FPV System Air Unit HD Camera Goggle Radio Transmitter Combo
Lipo Battery: Tattu R-Line V1.0 14.8V 850mAh 95C 4S1P Lipo Battery XT30 Plug
Package Included:
1x Top plate
2x Side plate
1x Bottom plate
2x Arm plate
4x plastic Diversion ring
1x 3D Printing TPU Antenna base
8x Aluminum pillar
1x 3D Printing TPU Mounting Base for FPV transmitter
2xEVA Empty Sponge(optional)
