Notice:
-Leader 2.5/2.5SE's power system supports 2-3S Lipo battery. We recommend run it on 2S 550/650mAh or 3s 450/550mAh Lipo battery to get the best combo of weight and speed.
-PID profile 1 is for 2S & 3S both.
PNP version without Receiver; BNF version can compatible with FRSKY FLYSKY DSM/X Transmitter, Please choose the version as your request.
Specification:

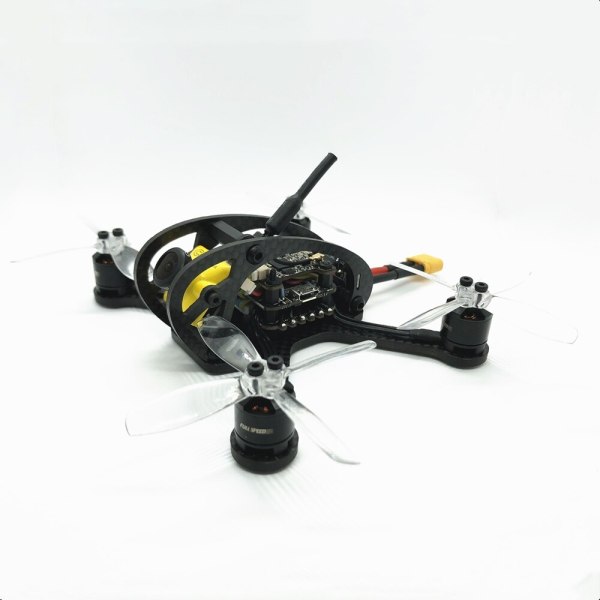

Item Name: Leader 2.5/2.5SE FPV RACING DRONE
Net Weight: Leader 2.5(80g),Leader 2.5SE(88g)
ESC: FSD 28A BLHELI_S 2-4S 4in1 ESC Dshot600
Propeller: FSD 2535
Camera: Caddx Micro F2
VTX: FSD TX600 25/100/200/400/600 switchable VTX
FSD F3 Flight controller
Size: 27.5mm * 27.5mm * 5mm
Mounting hole: 20mm * 20mm
Built-in Betaflight OSD
FSD 28A BLHELI_S 4in1 ESC
Size: 27mm * 27mm * 5mm
Mounting hole: 20mm * 20mm
Firmware: BLHELI_S
Input voltage: 2-4S
Continuous current: 28A
BEC Ouput: NO
FSD TX600 25mW-600mW VTX FPV Transmitter
Output power: PIT/25mW/100mW/200mW/400mW/600mW switchable
Control mode:BFOSD control(RX)/button
Video system: NTSC/PAL
Antenna: IPEX
BAT: 5V Recommended (Not included)
Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ
(TX600's factory set up is on lock mode(5733-5866MHZ unlock). Please follow your local laws and regulations
if you need to unlock the frequency.)
Size: 26*26mm(L*W),Hole:20*20mm
Weight: 2.3g
Package COMBO:
1 x Leader 2.5/2.5SE frame kit
1 x FSD328 F3 28A Flight tower
4 x 1106 7500KV brushless motor
2 x FSD 2535propeller (CW)
2 x FSD 2535propeller (CCW)
1 x Caddx Micro F2
1 x FSD TX600 25mW-600mW VTX FPV Transmitter
Leader 2.5(without canopy):
