RGB 5050 LED Light Board 5V 12V 3S 4S 7 Colors Switch for RC 250 QAV250 FPV Quadcopter Multicopter
Specification
100% Brand New
Input:4~6V ,10~13V, DC14~17V, 3S 4S LiPo battery
DIP switch color selection
Size: 42*10mm, 47*10mm,47*10mm
Weight: 2g
The LED is suitable for light DIY on mutirotor, airplane, helicopter, RC car etc.
This LED adopts RGB 5050 lamp beads, with DIP switch on board. According to toggle different switch combination, the LED can switch among
Function

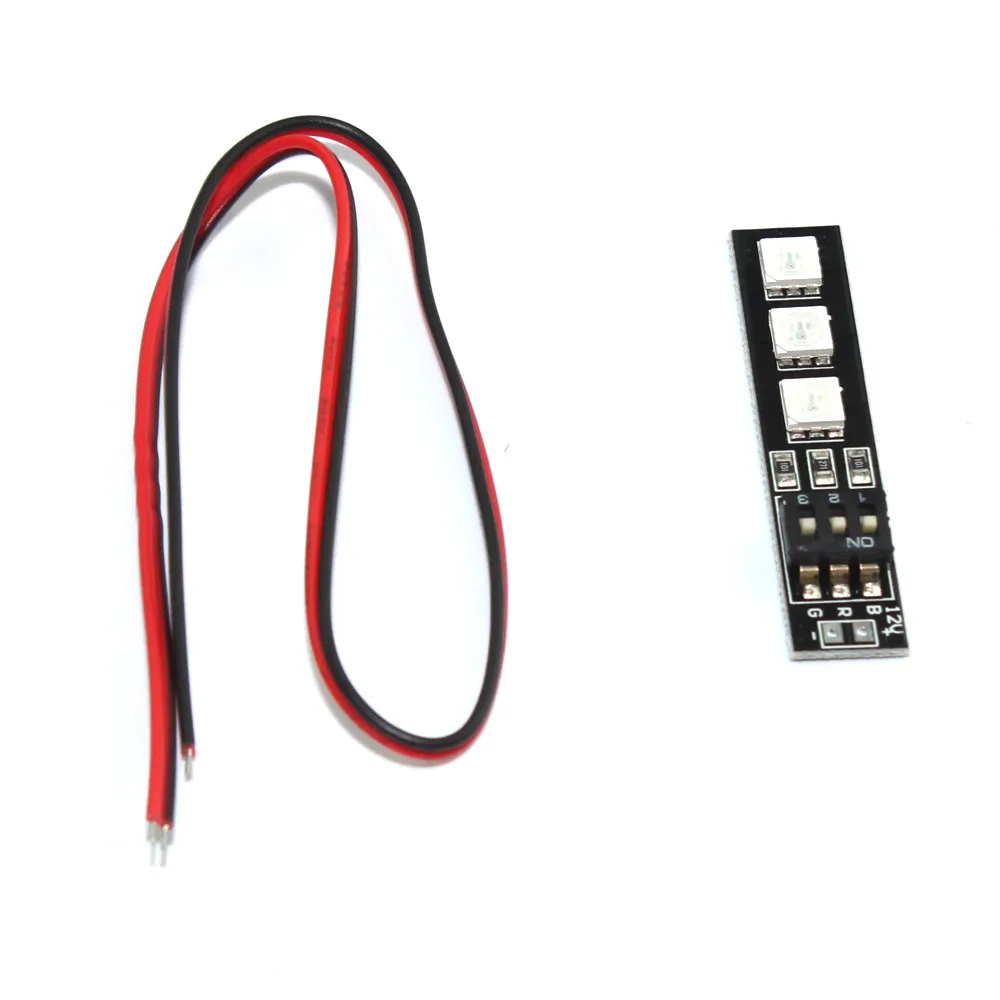

The parcel comes with a 30cm black and red power wire. User can cut it to the proper length according to real use.
Pay attention to the “+” and “-” and insulation
Toggle the switch on to different channel to choose 7 color
We suggest use double side tape to paste the LED lights on frame
The output voltage of the 12V version is between 10-13V, either 3S lipo battery or 12V BEC can power it.
When the output is 12V, the power and current of the LED:
B ON = Blue 0.35W, 0.03A
R ON = Red 0.35W, 0.03A
G ON = Green 0.35W, 0.03A
B + R ON = Purple 0.70W, 0.06A
B + G ON = Cyan 0.70W, 0.06A
R + G ON = Yellow 0.70W, 0.06A
B + R+G ON = White 1.05W, 0.09A
When the output is 5V, the power and current of the LED:
B ON = Blue 0.35W,
R ON = Red 0.35W
G ON = Green 0.35W
B + R ON = Purple 0.70W
B + G ON = Cyan 0.70W
R + G ON = Yellow 0.70W
B + R+G ON = White 1.05W
Package Content
1 x RGB 5050 LED Board 7 Colors with DIP Switch
