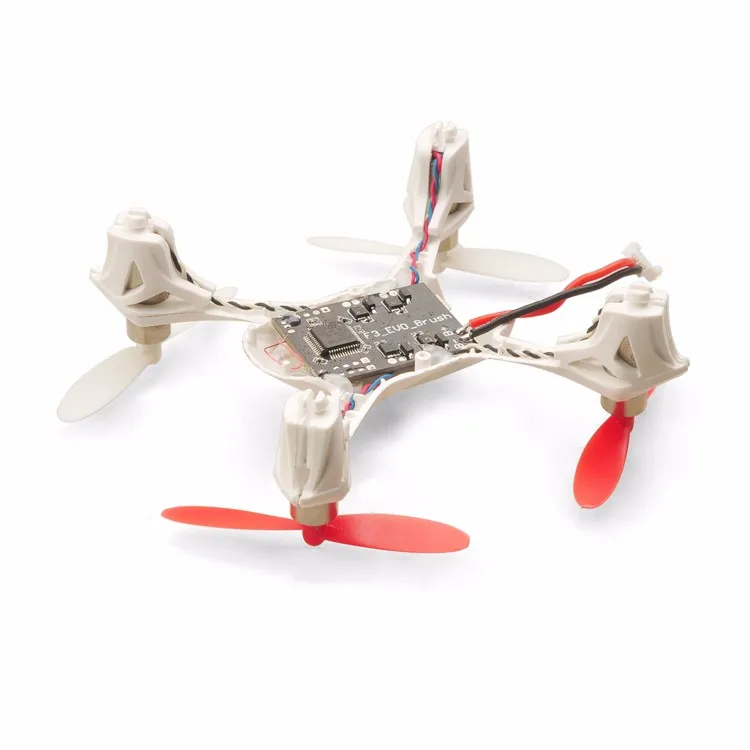

SP RACING F3 EVO Brush Flight Controller Control Through Indoor Coreless For Tiny FPV RC Quadcopter Hexacopter Aircraft
The latest version F3_EVO_BRUSHED brush flight control support 6-axis aircraft, operating current of each shaft can be up to 10A or above, improved blood pressure booster module, can reach to 500mah constand current output by using UART1 or UART2 output 5V, can meet the low-power diagram as 25mw FPV camera, support LED_STRIP function.
Caution:
1, the propeller must be removed before doing brush flight control program or calibration;
2, flight control by default brush F3 EVO 1.13.0 programs, if you want re-brush firmware, please write "set motor_pwm_rate=1000" in the CLI command control line of CF configuration software , and enter the "Save" command to save!
3. Set the throttle set the maximum value of 2000, can effectively increase the flight time.
Description:

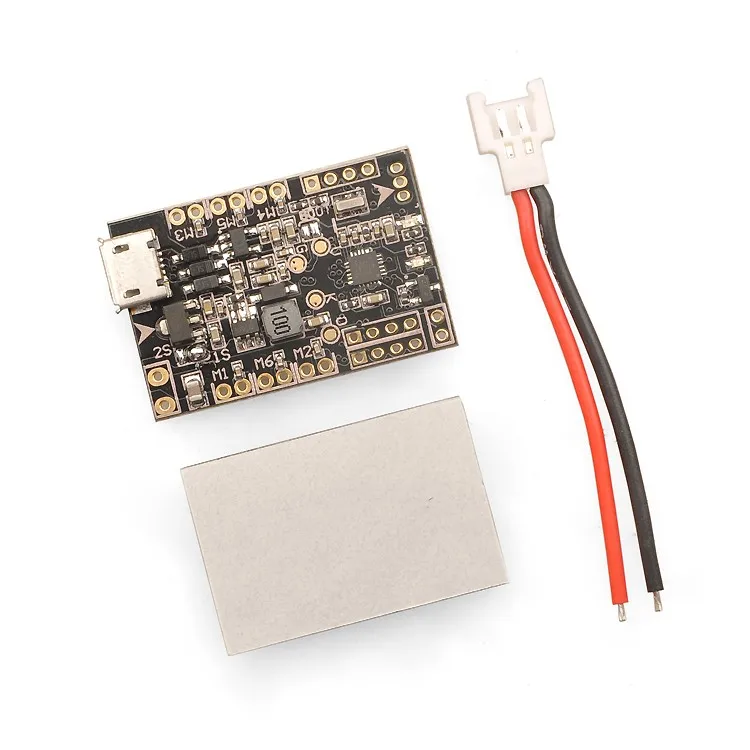

Item Name: SP RACING F3_EVO_Brush Flight Control
Dimension: 22mm*32.5mm
Thickness: 1.2mm
Weight: 3g
Features:
1, F3_EVO_Brush revision is out of the F3 EVO SP RACING based on is based on a SP RACING F3 EVO firmware 32 brush flight control;
2, Improve the power supply input scheme, so that flight control support 1S (4.2V) and 2S (8.4V) power supply, 2S power can bring more violent flying experience. Individually designed circuit configuration, comes with Buck booster technology, or both 1S 2S power input, UART1 / 2/3 output 5V, DSM output 3.3V;
3, Using STM32F303CCT6 + MPU6500, advanced hardware platform F3 guarantee more stable flight;
4, With a large current NMOS transistors, operating current of up to 10A per channel or more. Each motor and is equipped with a freewheeling diode;
5, Support for PPM, SBUS, DSM receiver input signal;
6, With battery voltage detection and buzzer interface;
7, Support for the current world face almost all coreless motors, including the 1020 and other behemoths of the hollow cup.
Notice:

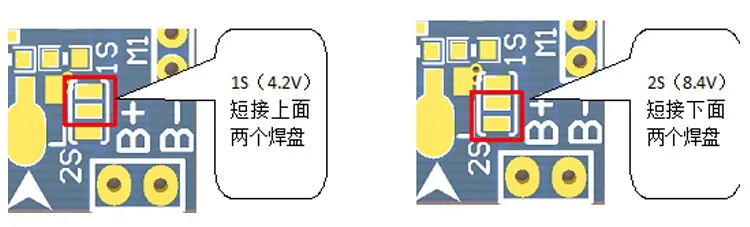

Before applying power, pay attention to the battery voltage selection:
The default shipping is 1S (4.2V); 2S first need to disconnect the short contacts 1S, 2S and then connect two pads short. Prohibit the same three pads shorted together.

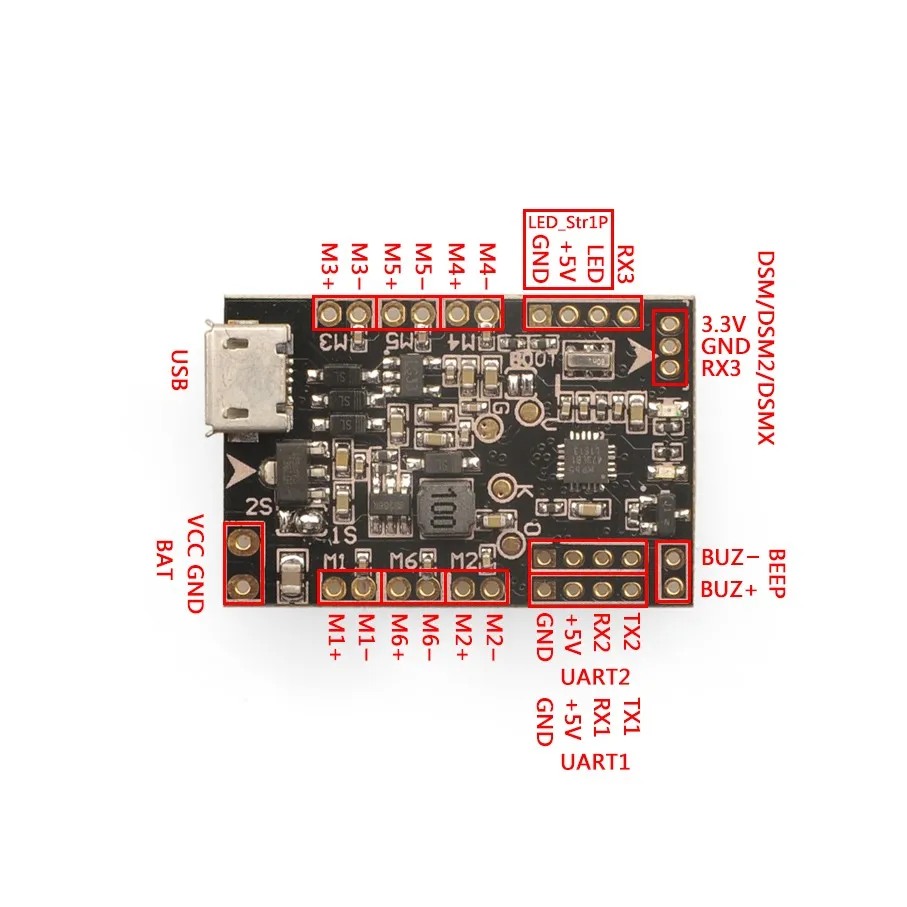

Receiver configuration:
1. DSM DSM receiver soldered directly to the interface 3.3V, GND, RX3, CF the software configuration UART3.
2. PPM and SBUS receiver welded to the UART2 GND, + 5V, RX2 above, SBUS signal CF in the software configuration.
