Flysky FS-i6S Remote Control 2.4G 10CH AFHDS Transmitter FS-IA10B Receiver for RC Airplane Quadcopter Multirotor Drone
------ 2 Version optional, include/Not include the Mobile Holder Set. Please choose the one you request.
No Holder:

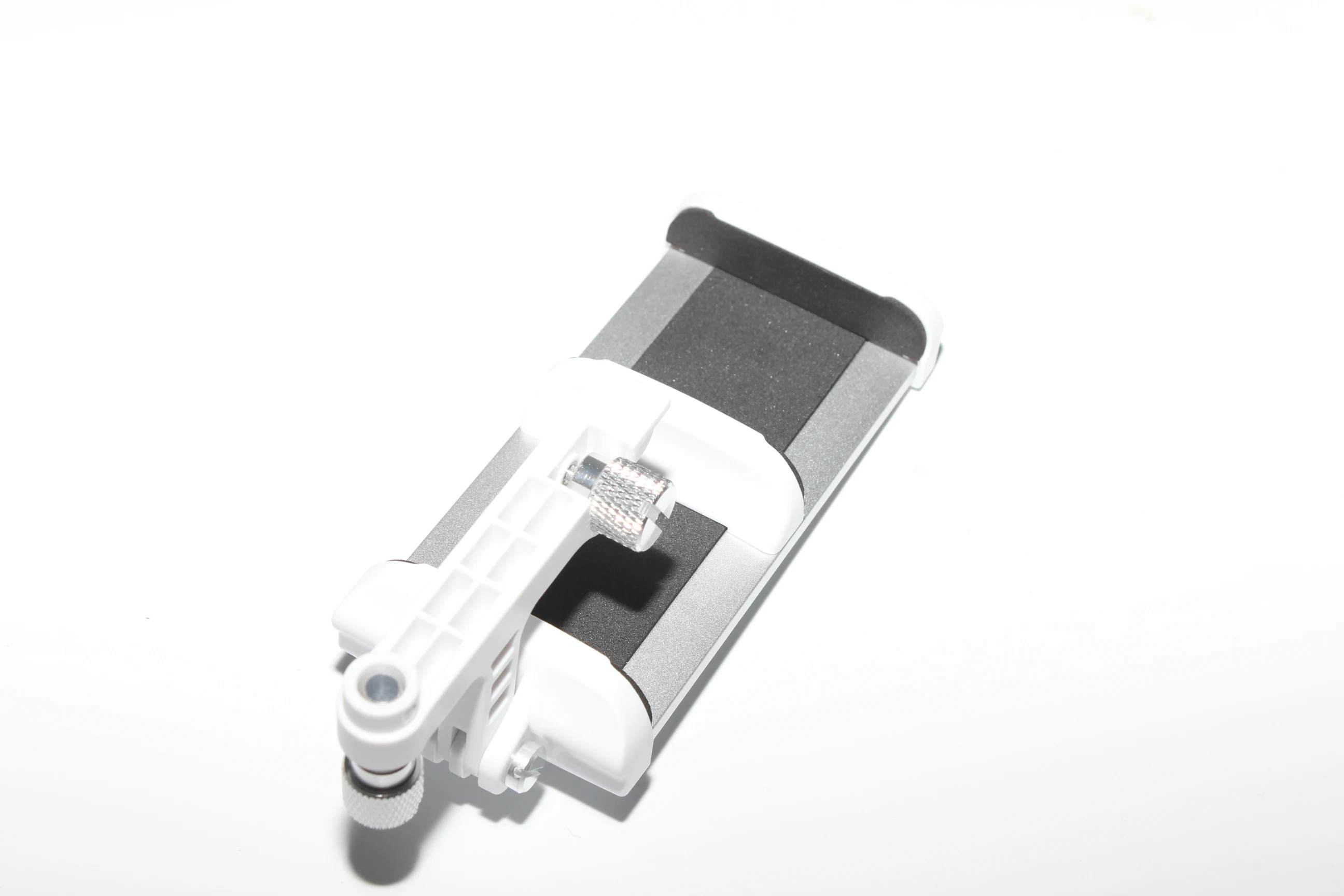

With Holder:
Overview:
Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.Silm design on transmitter for easy handling!
This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission
Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.
This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.
AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.
AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.
Description:
Brand Name: Flysky
Item Name: FS-i6S with FS-IA10B receiver
Specifications:
Transmitter
Brand Name: FlySky
Item Name: FS-i6s transmitter
Channel: 10
Model Type: Quadcopter
Channel resolution: 4096 steps
Low voltage warning: less than 4.2v
ANT length: 26 x 2mm( dual antenna)
Weight: 410g
Battery: 6v 1.5 AA x 4(not included)
Size: 179 x 81 x 161mm
Color: Sliver
Certificate: CE ,FCC
RF specification:
RF Range: 2.405 - 2.475GHz
Bandwidth: 500khz
RF Power: less than 20dBm
RF mode: AFHDS 2A
Modulation type: GFSK
RX Sensibility: -105dBm
Receiver: FS-IA10B:
Number of Channels: 10
Suitable models: Airplane / glider / helicopter Health
Frequency range :2.4-2 .48 GHz
Number of newspapers: 160
Transmitting power: not more than 20dBm
Receiver sensitivity:-105dBm
2.4G modes: automatic frequency second generation digital system
Encoding: GFSK
Antenna length: 26 mm * 2 (dual antenna)
Weight: 19.3 g
Input power :4.0-6 .5 V DC
Dimensions: 47 * 33.1 * 14.7 mm
Color: Black
Certification: CE0678, FCC
i-BUS Interface: Yes
Data acquisition interface: Yes
Features:
Full touchscreen interface,more convenient to control
Bidirectional Communication
Capable of sending and receiving data,each transmitter is capable of receiving data from temperature,altitude and many other types of sensors,servo calibration and i-BUS Support.
Multi-channel Hopping Frequency
This systems width ranges from 2.4055GHz to 2.475GHz. This is divided in 140 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean versions) in order to reduce interference from other transmitters.
Omni-directional Gain Antenna
The high efficiency Omni-directional high gain antenna cuts down on interference,while using less power and maintaining a strong reliable connection.
Unique ID Recognition System
Each transmitter and receiver has its own unique ID. Once the transmitter and receiver have been paired,they will only communicate with each other,preventing other systems accidentally connecting to or interfering with the system's operation.
Low Power Consumption
The system is built using highly sensitive low power consumption components,maintaining high receiver sensitivity,while consuming as little as one tenth the power of a standard FM system,dramatically extending battery life.
English Manual

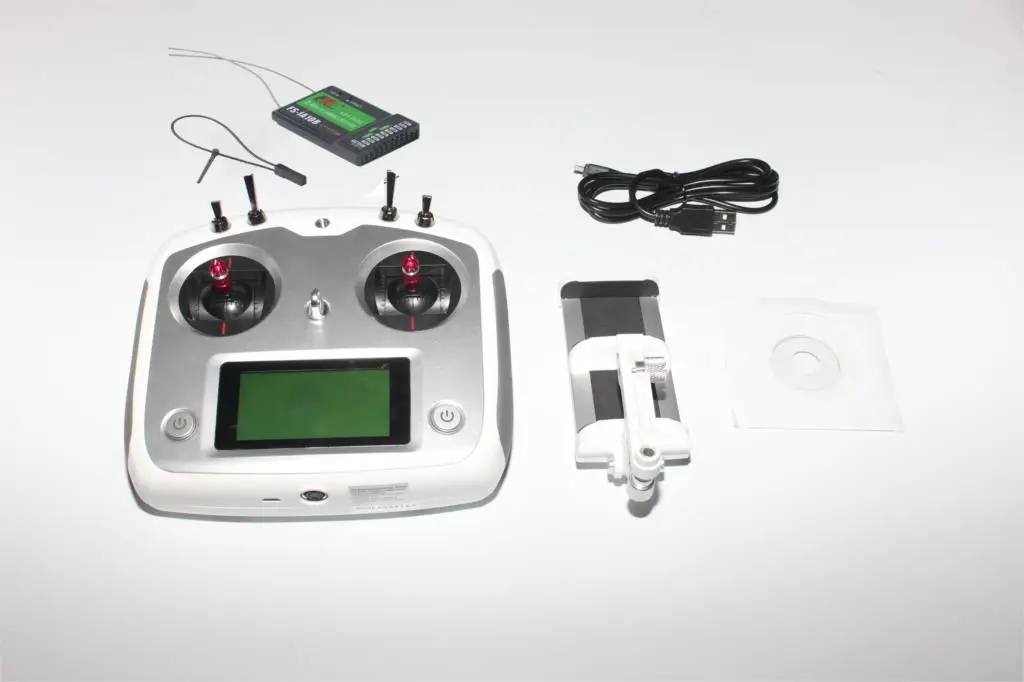

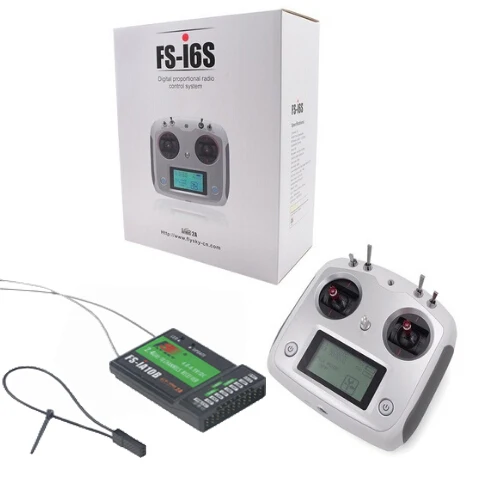

Package Included:
1x Flysky FS-i6S Transmitter
1x Flysky FS-IA10B Receiver
1x User Manual
