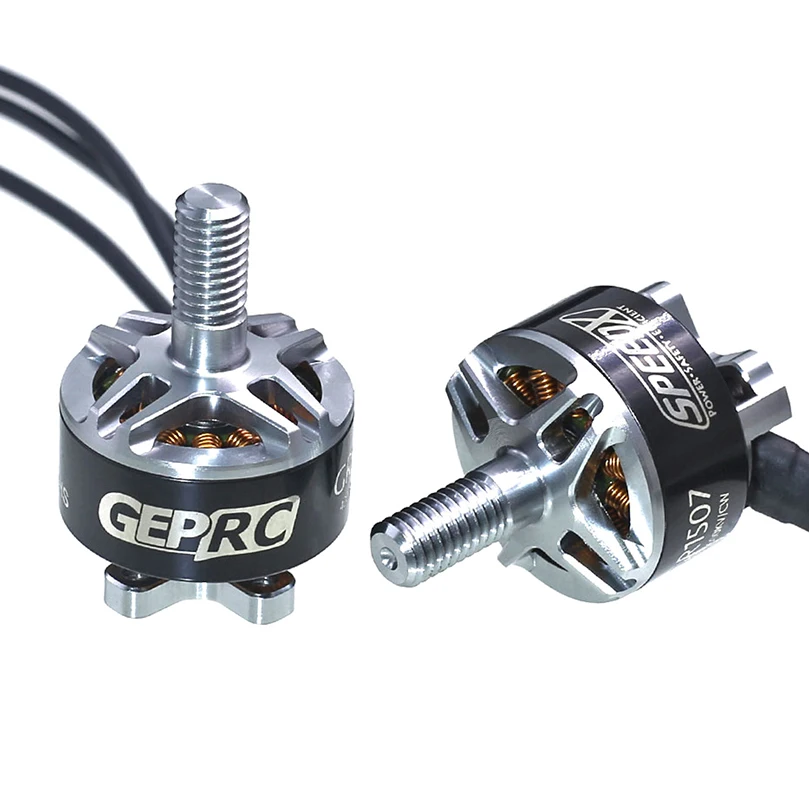

1PCS/4PCS GEPRC GEP- GR1507 2800KV/3600KV/4200kv Brushless Motor with 2mm Diameter Shaft for FPV Racing Drone Quadcopter
Specification:
Brand name: GEPRC
Item name: SPEEDX GR1507 Brushless Motor
KV: 2800KV/3600KV/4200KV
Configuration:12N14P
Stator Diamter:15mm
Stator Length:7mm
Shaft Diameter:2mm(Hollow)
Motor (Dimension(Dia.*Len)):Ö 19.6*29.1mm
No.of Cells(Lipo):3~4S
Internal Resistance:149mÙ/104mÙ/96mÙ
Max Current(15S):35A
Rotor: N52H arc magnets
Bearings:NSK
Base casing: Al 7075
Wire AWG: 24AWG
Weight(g):15.5
Features:
- Super light base design and strong power take-off
- Elegant appearance design, strong airstream, stout structure and anti-impact
- The whole fuselage is high-precision CNC processing; the aviation aluminum alloy is 7075 aluminum materials, which is high precision and high intensity
- It adopts N52H magnet, which ensures the torsion, high temperature resistance and no dropping magnet
- The effort and thrust is the best aiming at the accelerator from 50% to 90%
- The fuselage is handled with precise dynamic balancing to ensure the vibration and low noise when the electrical machine operates with high speed
- Japanese NSK bearing ensures the smooth operation of the electrical machine
- Tile shape magnet and 0.15mm air cleft, the power take-off is stronger
- Benign design of heat radiation structure, the temperature reduces 20% compared with the electrical machine in the same type
- Reliable magnetic circuit optimization and maximum electric power conversion
- The weight is 15.8g only (not include the wire)
Package Included(1PCS):
1 x GR1507 Brushless Motor
4 x M2*6 screws
1 x circlipd
1 x M5 Non-slip nuts
