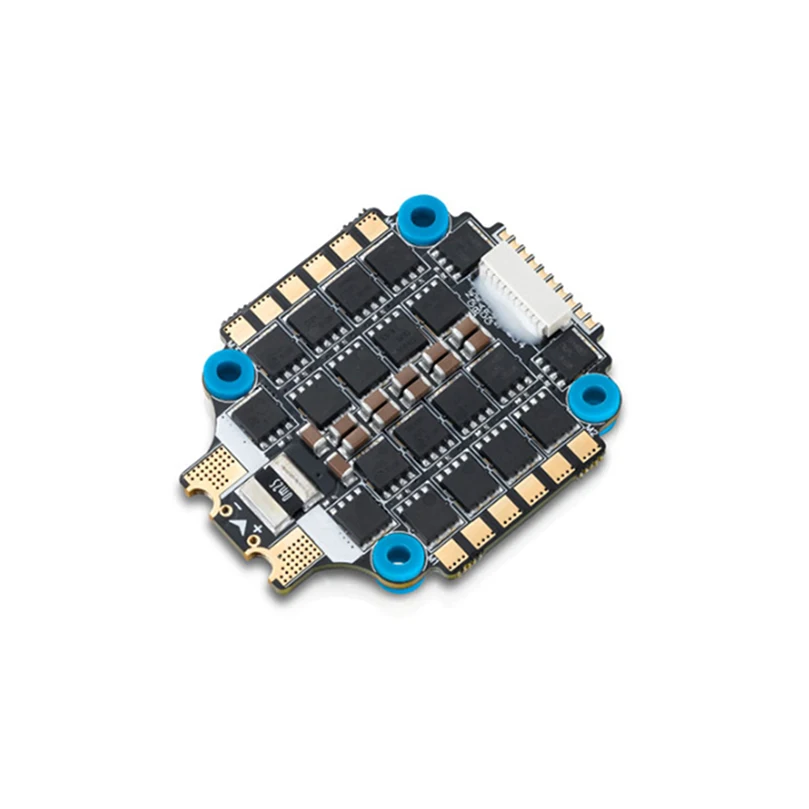

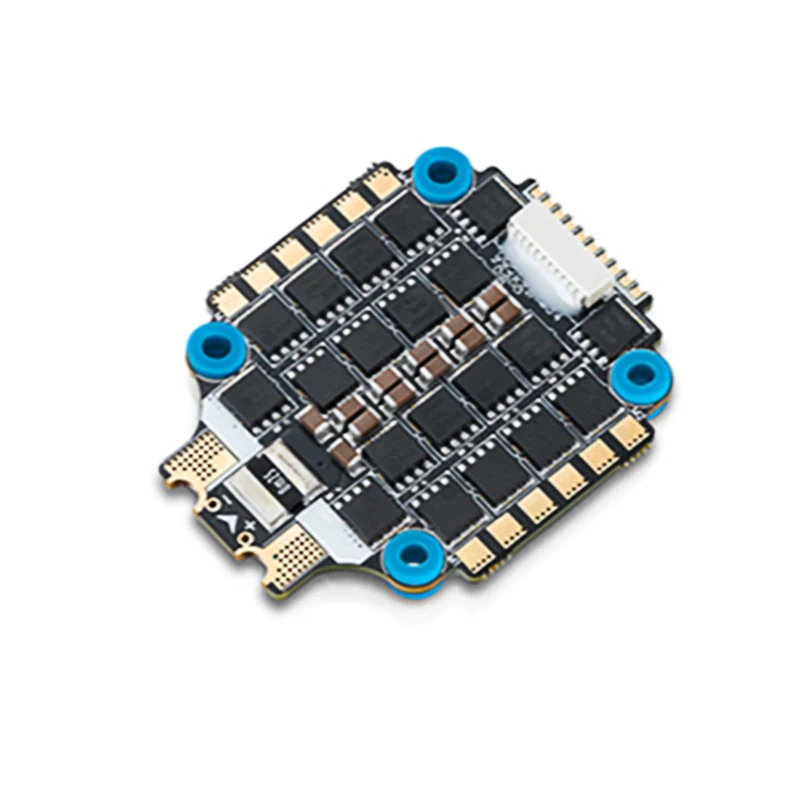

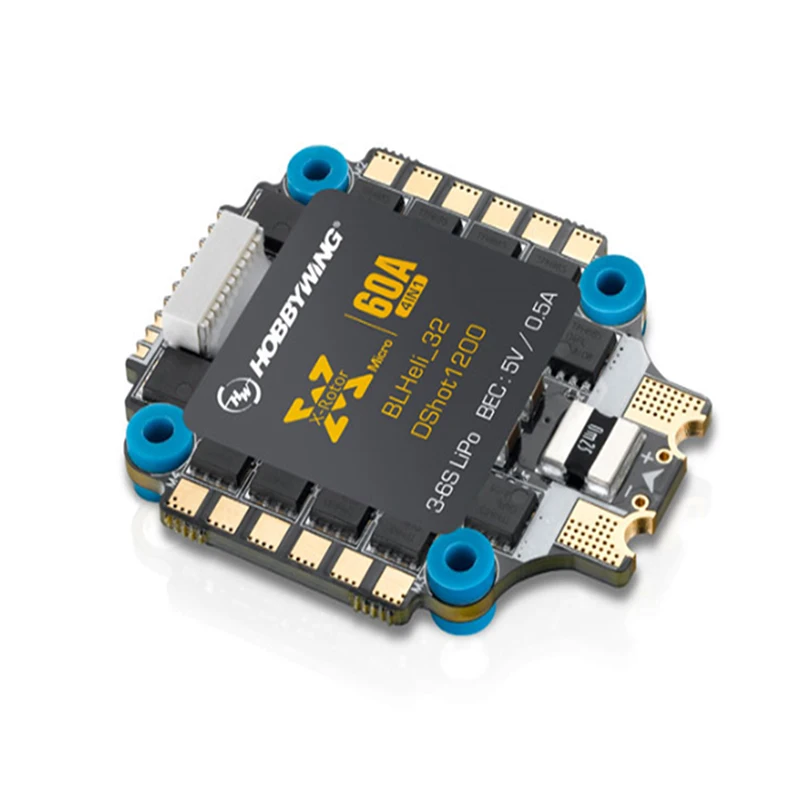

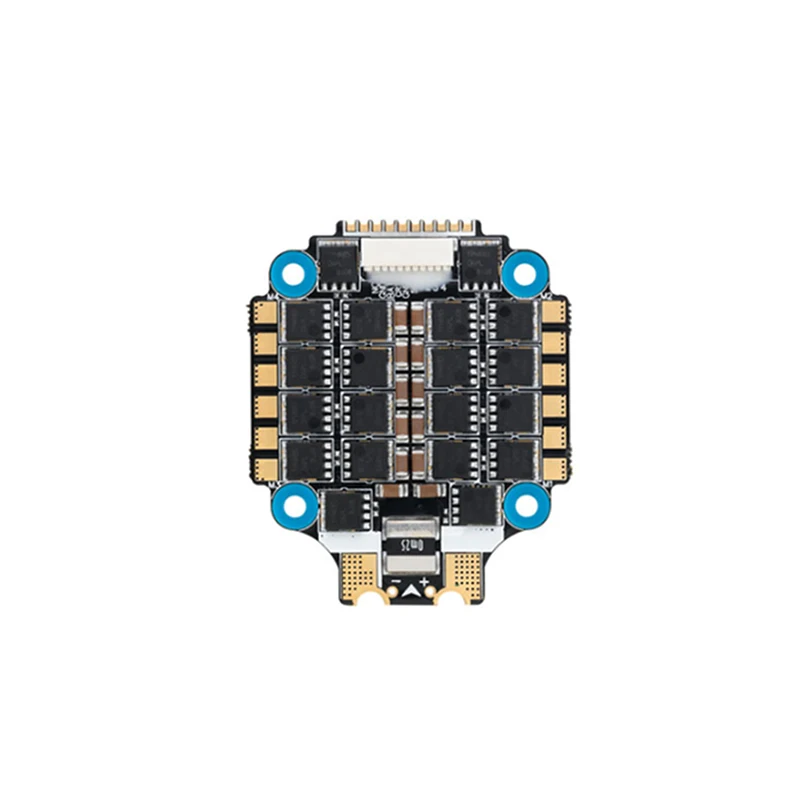

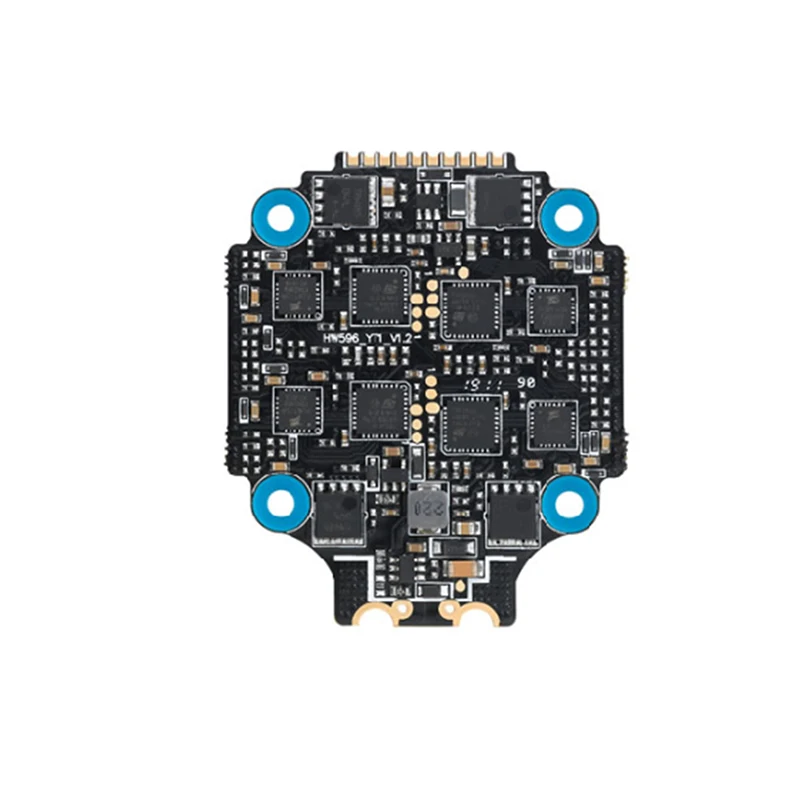

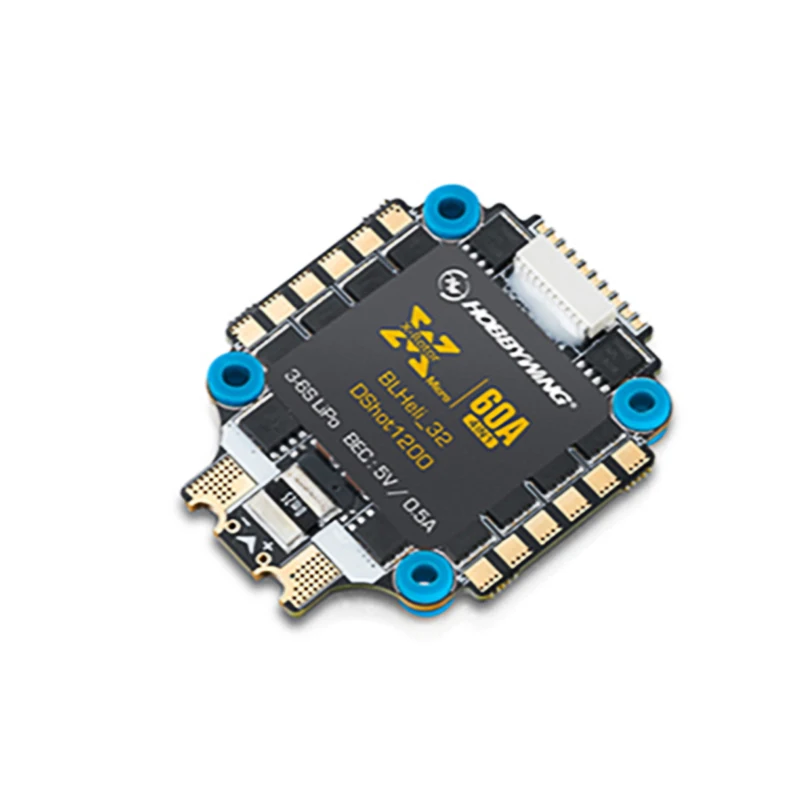

Hobbywing XRotor Micro 60A 3-6S Blheli_32 DSHOT1200 4 IN1 Brushless ESC for FPV Racing Drone Quadcopter
Product description
Highly Integrated:
With a similar size of a FC, the 4IN1 ESC includes 4 high performance 60A BLHeli_32 DShot1200 ESCs a 5V BEC which can provide power for devices (i.e. FC), and a voltmeter which allows FC to monitor the amp volt in real time. Two ways for connecting the ESC to a FC: 1) connecting via soft cables, 2)soldering via solder tabs are provided for selection. And the shock-absorbing design of mounting holes effectively reduces the external vibration’s impact on high-sensitivity components and provides great shock-absorbing protection to upper devices (i.e. FC). This ESC is designed for FPV racing.
Product Name: XRotor Micro 60A 4in1 BLHeli_32 DShot1200
Specifications:
Cont./Peak Current: 60Ax4/ 80Ax4
Input Voltage: 3-6S Lipo
BEC output: 5V & 0.6A
Wires & Connectors:
Input Wires: Red-12AWG-130mm/ Black-12AWG-130mm
Output Wires: No wires but solder tabs
Input Connectors: XT60(w/ Wires Soldered on)
Output Connectors: No
(Note: All the wire length above is the original length not the length you see from the outside.)
Features:
Firmware: Hobbywing_XRotor_BLHeli-32 Firmware
ESC Programming: BLHeliSuite32
Stick Programming: Supported
DEO: Supported
Throttle Range Calibration:Supported
Oneshot125 Mode: Supported
Oneshot42 Mode: Supported
MultiShot Mode: Supported
DShot150/300/600/1200: Supported
Timing: Supported
Motor Rotation: Supported
Size & Weight
Size: 52x42x6.6mm
Weight: 15g
Applications:
130-300mm FPVs
