Specifications

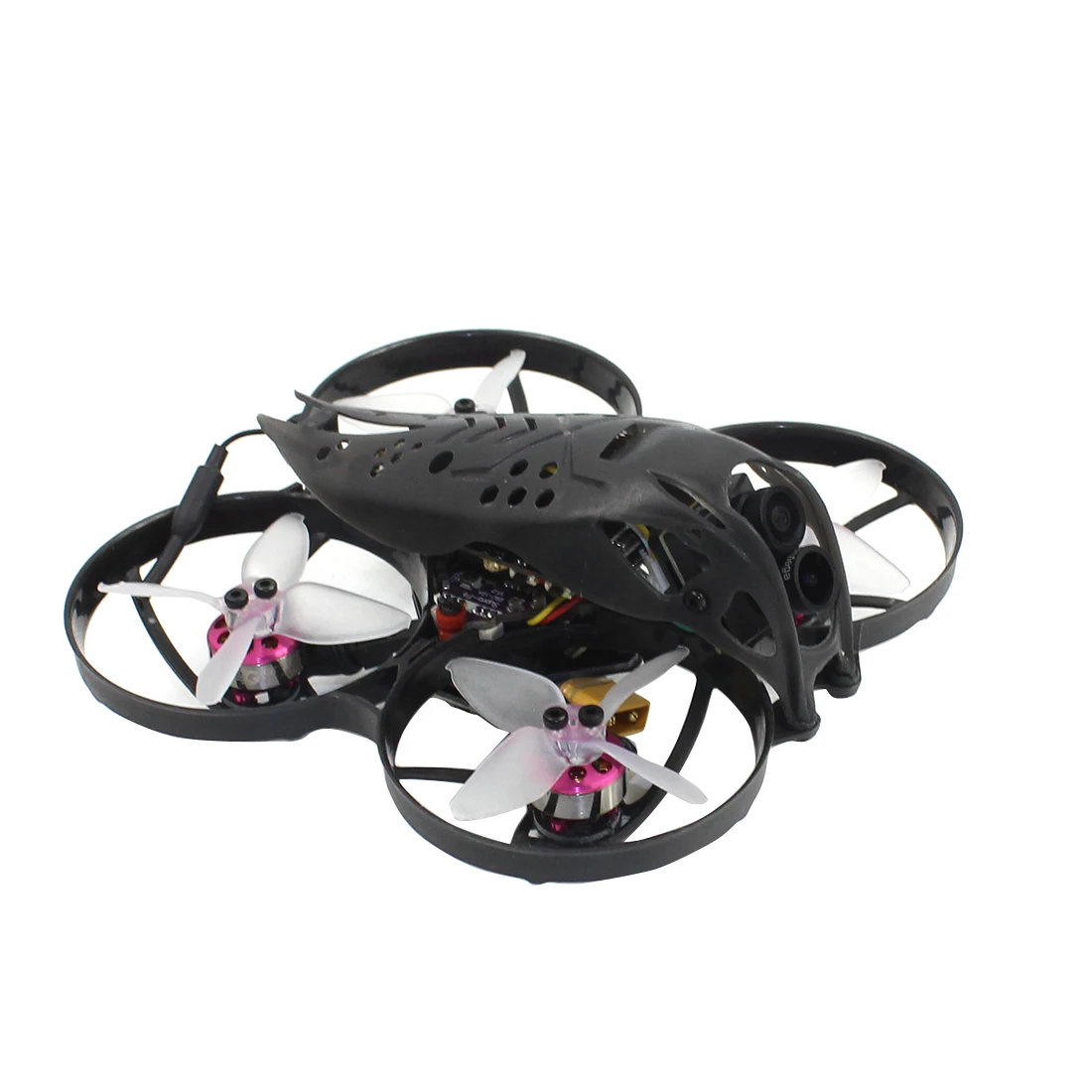

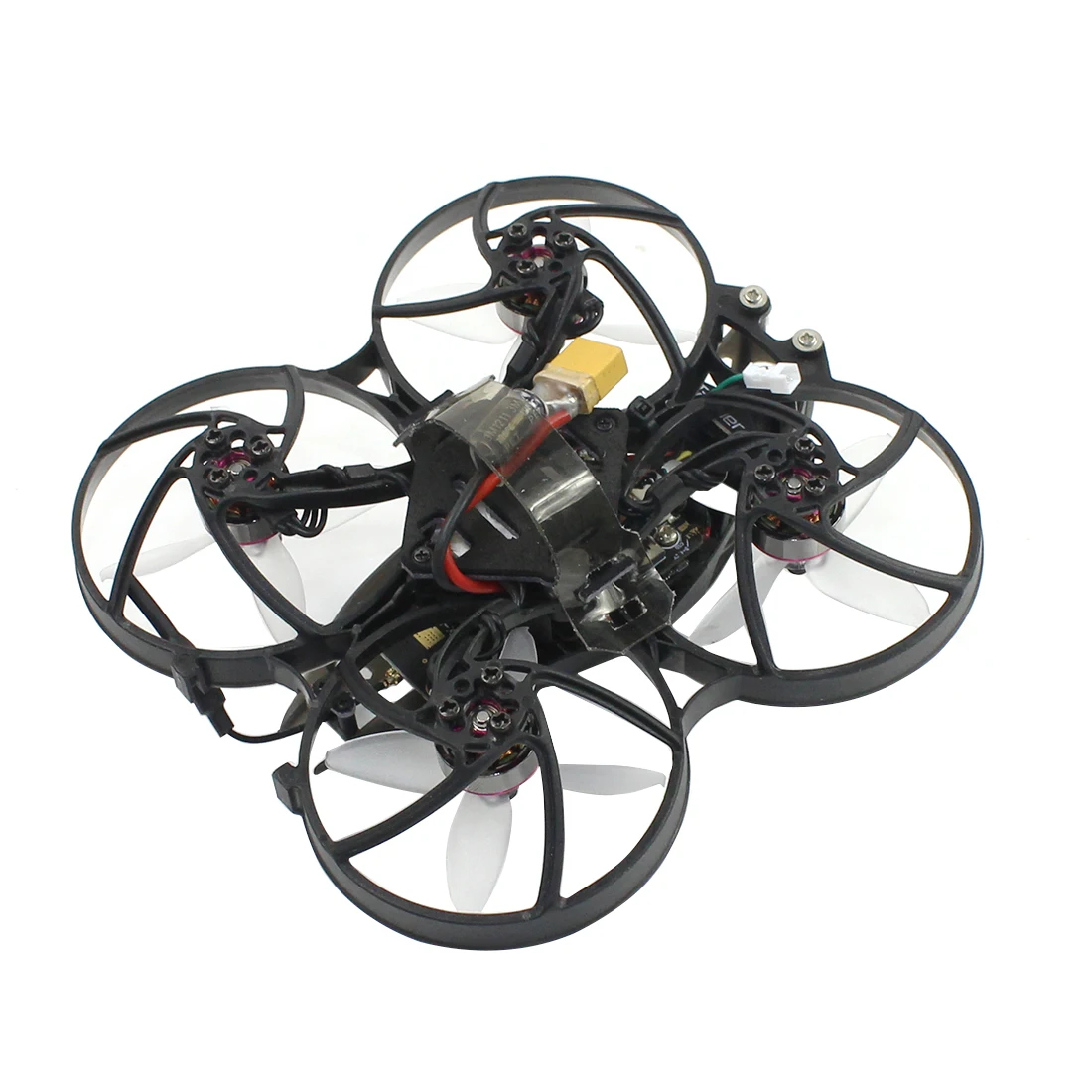

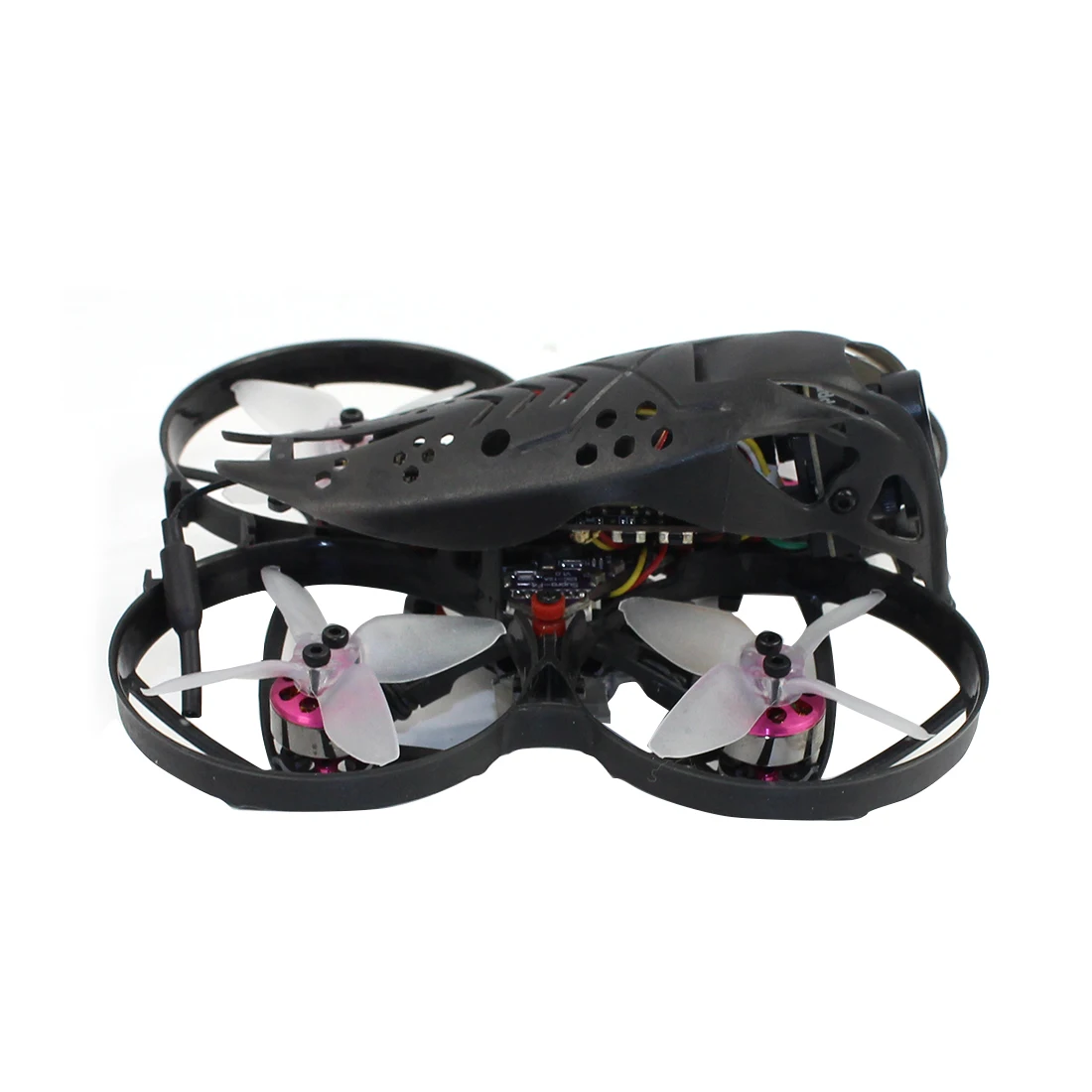

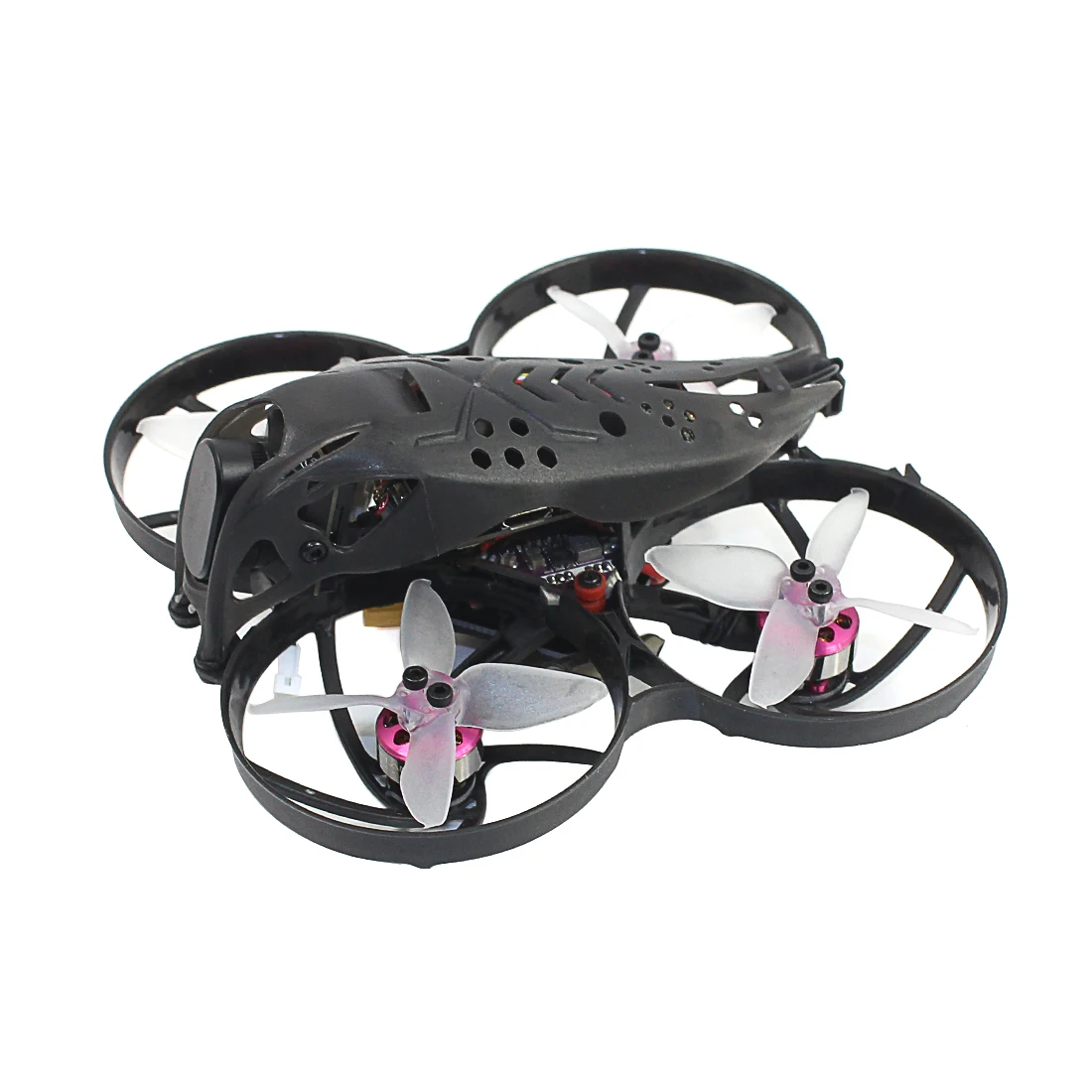

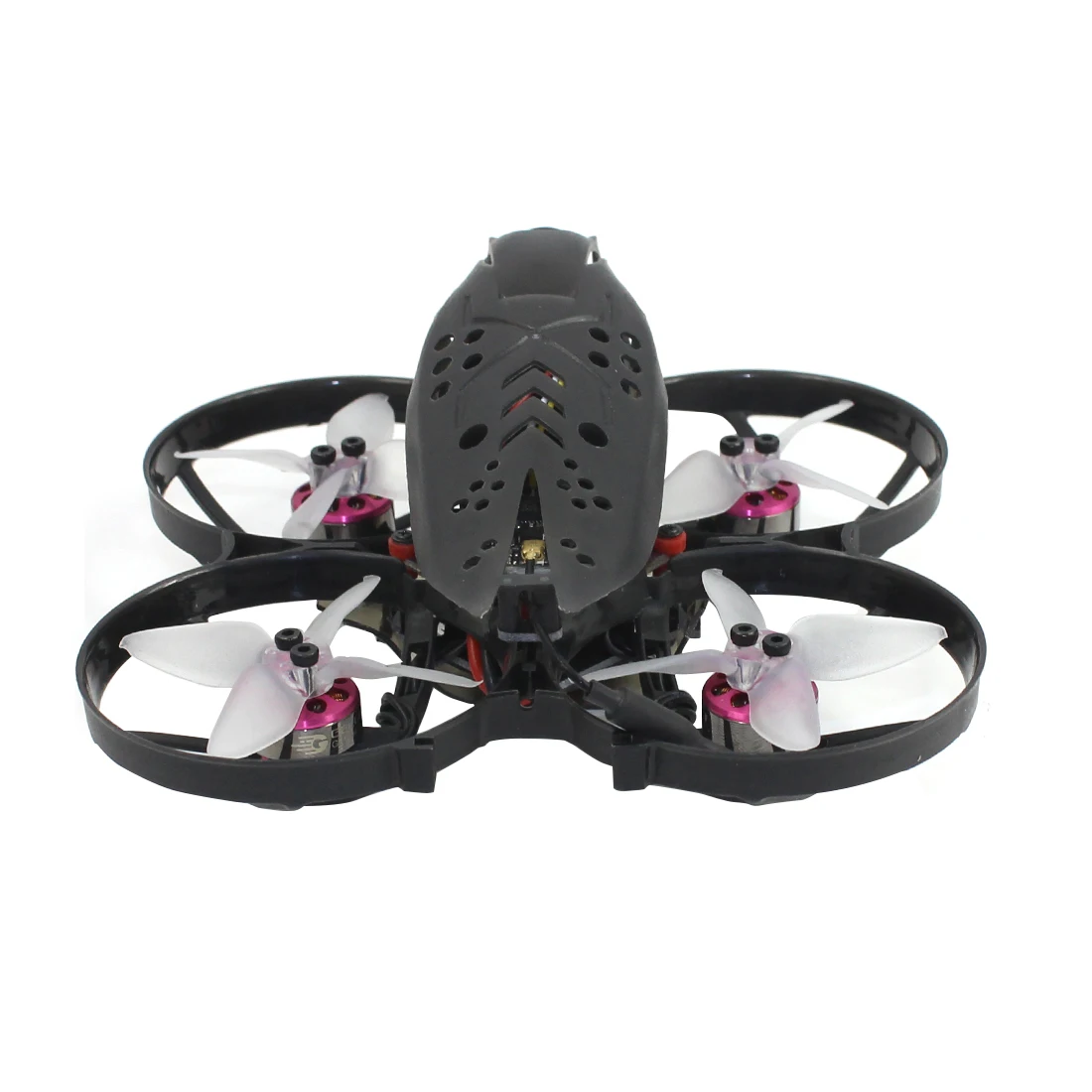

Item Name：X UFO-85X 4K Cinewwhoop
Wheelbase：85mm

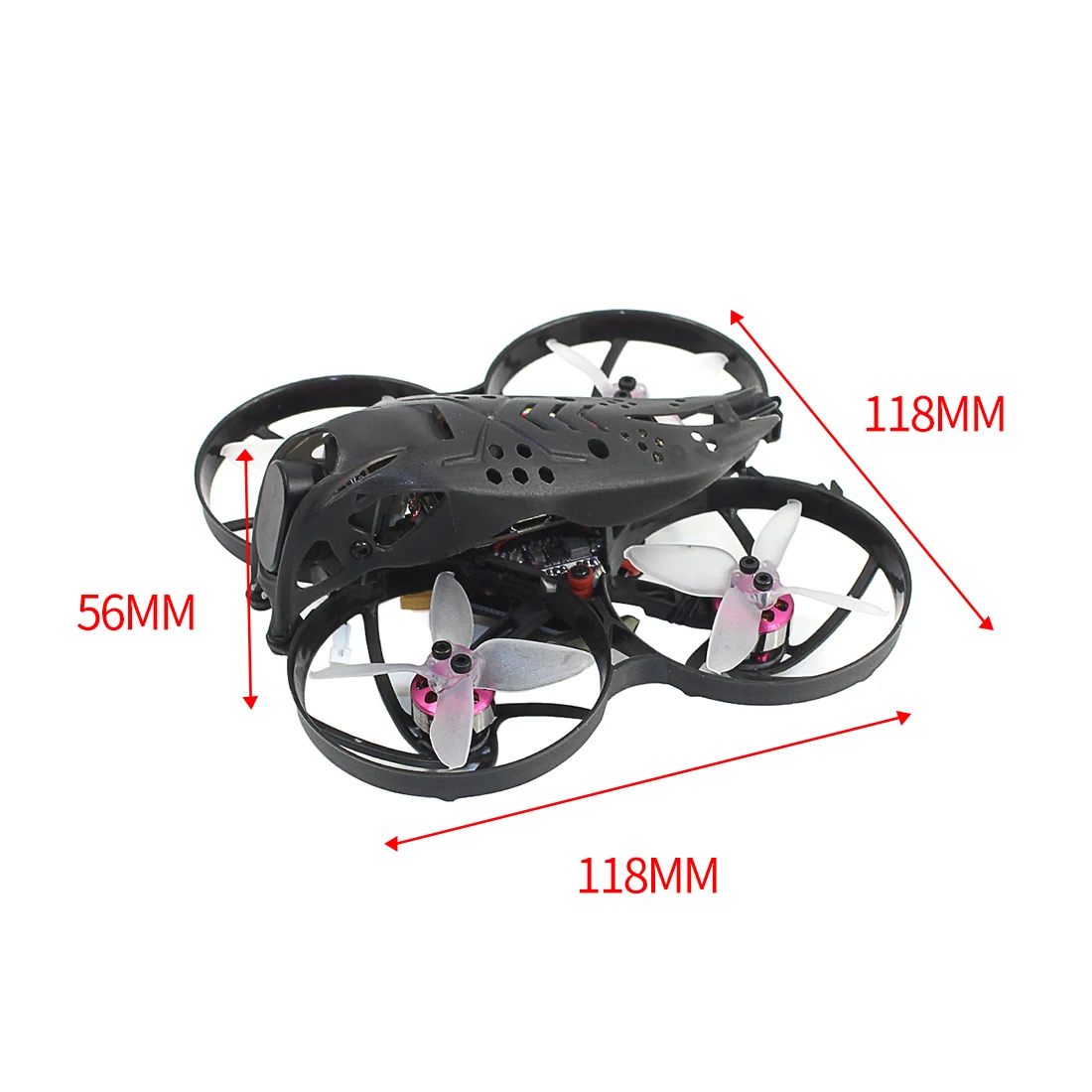

Size：118mm * 118mm * 56mm
Weight：79.2.g （without battery）
Weight：112.2g（with Original 4s 260mah Lipo battery）
Weight：130.7g（Extended use 4s 450mah lipo battery）
Spare parts specifications：
Motor Mode：GL1204 KV5000
Stator specifications：D12 * H4 0.2mm Kawasaki
Configu-ration:9N12P
Stator Diamter:12mm
Stator Length:4mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ16.0mm*15.8mm
Magent specifications: N52H
Shift specifications: 2mm High strength steel
Bearing Specifications: d2*D5*H2.5 MR52zz Japan ISC Custom made
Winding Specifications: 200℃ Class Multiple oxygen-free copper Weight(g):5.8g
No.of Cells(Lipo)：3S-4S
Flight controller：supra f4
Version:MATEKF411 4.0.2(4.0.3)
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size:28.5 * 28.5MM
Power supply: 2-4S battery input (DC 7-17V)
Built-in 12A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 70A
Current meter scale set to 480
Built-in 5V 2A BEC
Built-in voltage detection
Onboard 4in1 ESC MCU upgraded to EFM8BB21
Power supply: 2-4S LiPo/LiPo HV (7v/17v)
Current: 12A continuous peak 13A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: F_H_40_REV16_5.HEX
Default protocol: DSHOT600
External receiver matching:
Frsky （ac900）SPI receiver
Frsky D16switchable
compatible futaba s-fhss switchable
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Flysky receiver Version SPI BUS receiver
Protocol：AFHDS-2A
Channels：14ch（AFHDS-2A）
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Failsafe support
spektrum External receiver（DSM2 DSMX ）
Power Input：3.3-5V Compatible
System：DSM-X(stand by DSM2)Automatic retrieval
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
TBS Crossfire version CRSF Protocol , Official TBS transmitter compatible
PNP NO RX：No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc.
VTX Output power：25~200mw switchable
Frequency：40CH
Input voltage: 3.2V- 5.2V
Current consumption: 320mA(type)
Power switching: third gear(25MW 、 100MW 、200MW)
Antenna: RG178s antenna
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready
Weight:2g
CADDX Tarsier Image sensor: Sony sensor 12M, 1/1.8inch, 1/2.9inch
Horizontal: 1200TVL
TV system: NTSC/PAL changeable
Video Resolution: 4K/30FPS 16:9
2.7K / 60FPS 4：3 ，16:9
1440P / 60FPS，30FPS 4：3
1080P / 90FPS，60FPS，30FPS 16：9
720P / 120FPS 16：9
Power Input: DC 5-12V
FOV：4K F2.8,150 °（16：9）165°（4：3）
Weight:18g
Dimension: Camera 19x20mm / DVR 29x29mm
Dimension: Camera F2.8 / 12Mega
Audio: Dual Digital MIC
CPU: DUAL Core dual system
Lipo Battery Capacity:260mAh
Voltage:15.2v
Continuous Discharge Rate：40C
Instantaneous discharge rate：80C
Size：52mm x25mmx11mm
Weight：31g
Connector：XT30
Features:
with Beta85X 4KSame level 4KRacing drone,Sturdy and lighter construction。
Newly adopted 1204motor More efficient, feel better, more delicate。
brand new supra F4 Flight controller 2-4s Lipo compatible，Powerful and smoothly。
Side effects RGB led Dual light bar compatible with flight control adjustable play mode

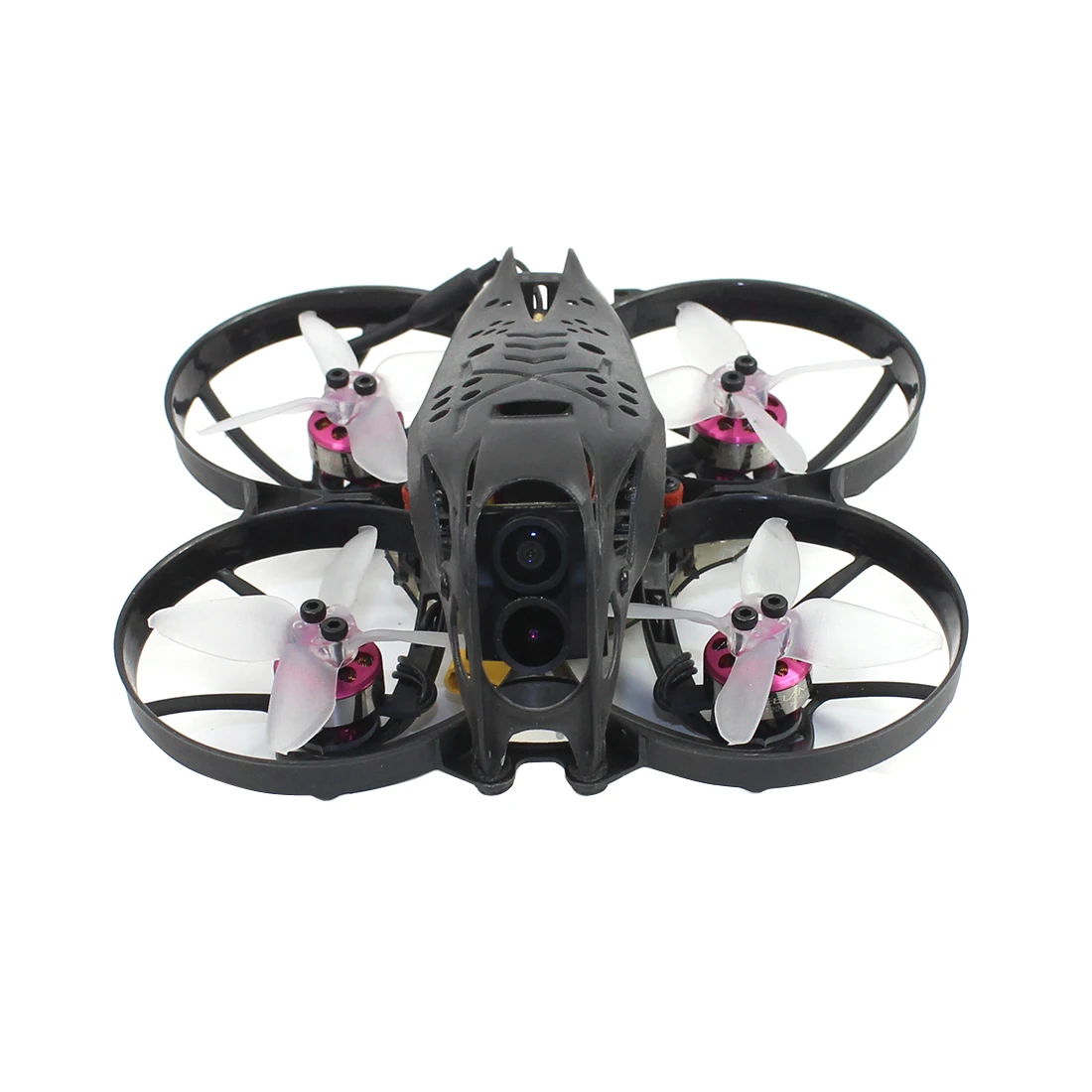

Caddx Tarsier 4K Camera & DVR ready
Betaflight OSD support ,easy to get RSSI, Voltage ,current from your goggles
Camera Angle adjustable
VTX power switchable 25mw~200mw
Smartaudio ready , change VTX bands, powers, channels via OSD
Flight controllers are more flexible with an external receiver combination
NO RX Version supports players to freely match the receiver。
compatible 3s-4s Lipo / LIHV

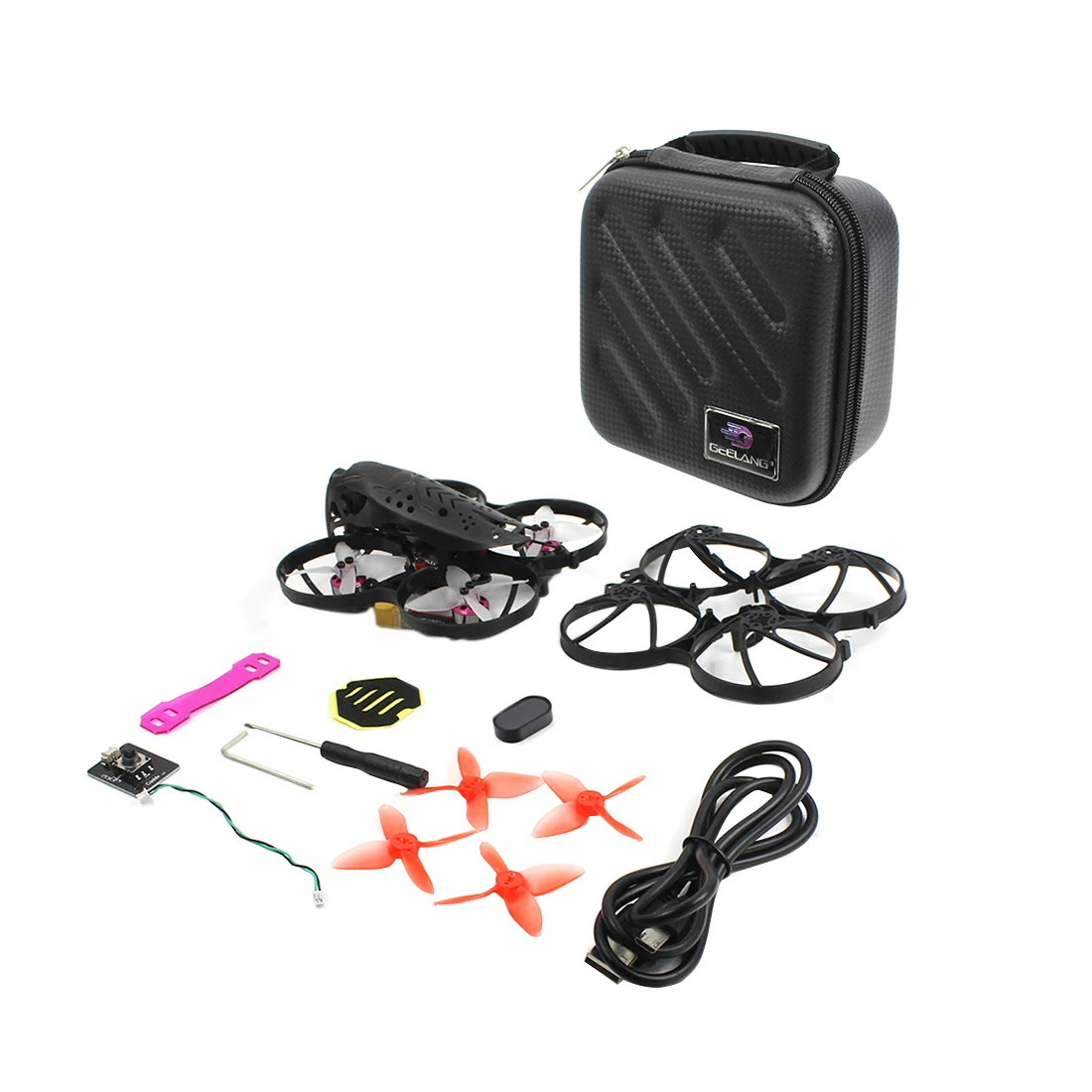

Package Included：
1 x 85X mm Frame
1 x Option1：supra f4 with external Frsky ac900RX Compatible futaba
Option2：supra f4 with external Flysky RX
Option3：supra f4 with external TBS Crossfire Nano RX
Option4：supra f4 with external spektrum Receiver DSM2 DSMX
Option5：supra f4 NO RX
4 x 1204 5000KV Motor
1 x 2 Inch propeller（4cw + 4ccw）
1 x Caddx Tarsier 4K Camera
1 x 5.8G 40ch 25mw~ 200mw VTX
1 x 4S 15.2v 260mah 40C / 80CBattery
1 x Propeller disassemble tool
1 x screwdriver
1 x ND8 Filter on the camera
1 x usb Data line
1 x Battery fixing elastic band
