FEICHAO XING X2806.5 2806 1300KV 1800KV FPV NextGen FPV Motor Brushless Motor for RC Drone FPV Racing Item NO.: F31741/F31742

Write a Review

US$ 31.99

Color:
1PCS 1300KV	US$ 31.99	Stock(499)	- +
1PCS 1800KV	US$ 31.99	Stock(499)	- +

Quantity: 0 , Subtotal 0

Product Name	FEICHAO XING X2806.5 2806 1300KV 1800KV FPV NextGen FPV Motor Brushless Motor for RC Drone FPV Racing
Item NO.	F31741/F31742
Weight	0.1 kg = 0.2205 lb = 3.5274 oz
Category	FPV Drone and Part > RC Parts
Brand	FEICHAO
Creation Time	2020-10-14

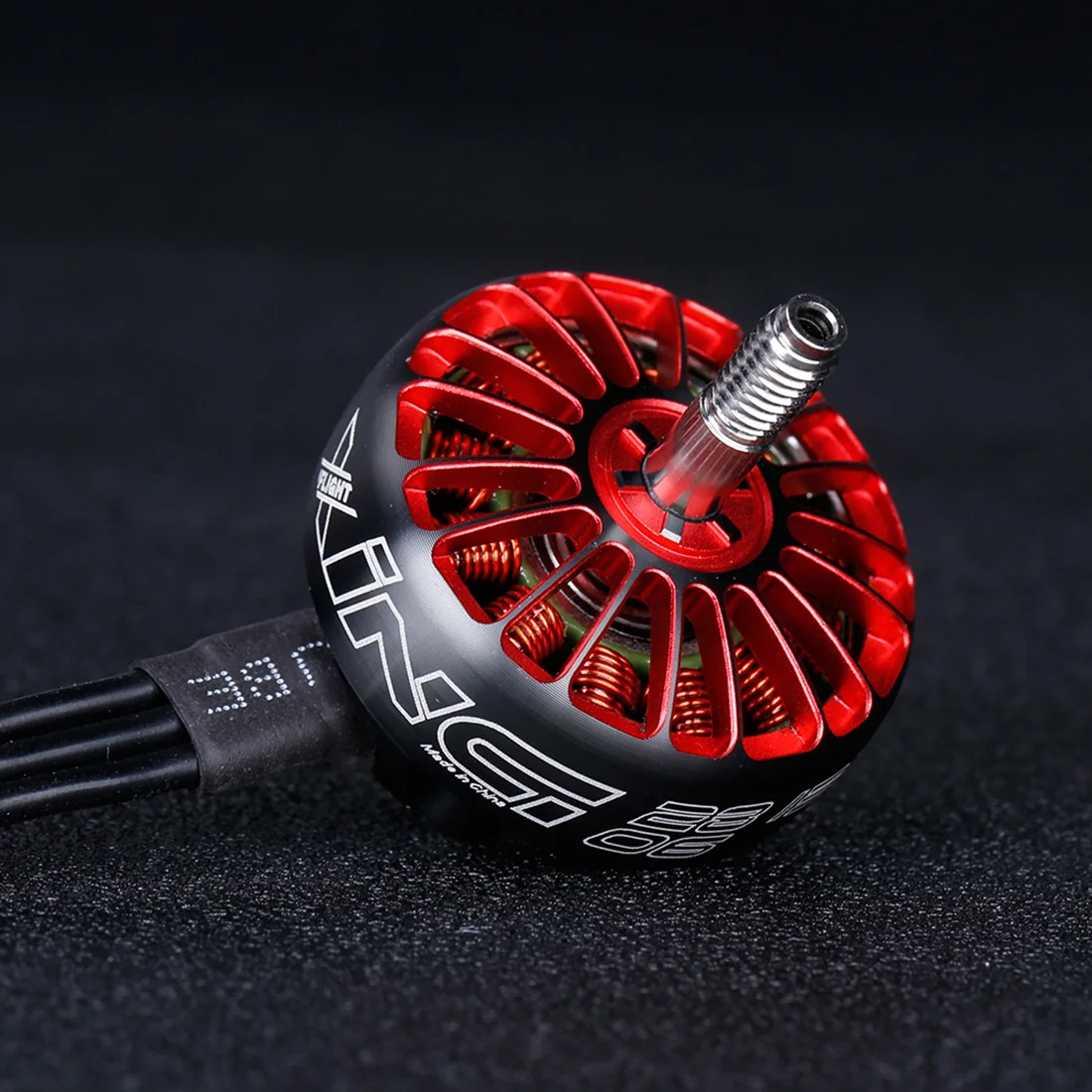

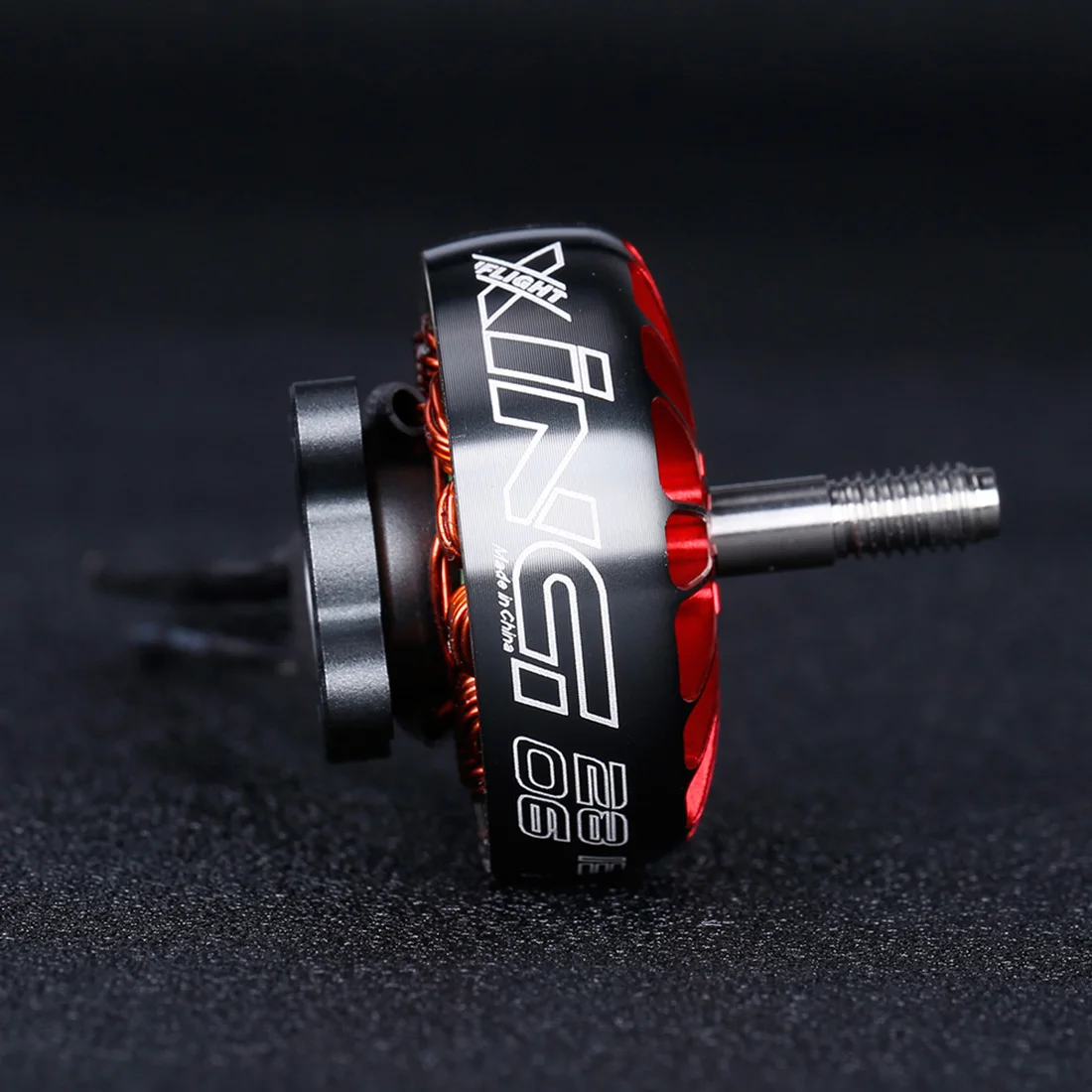

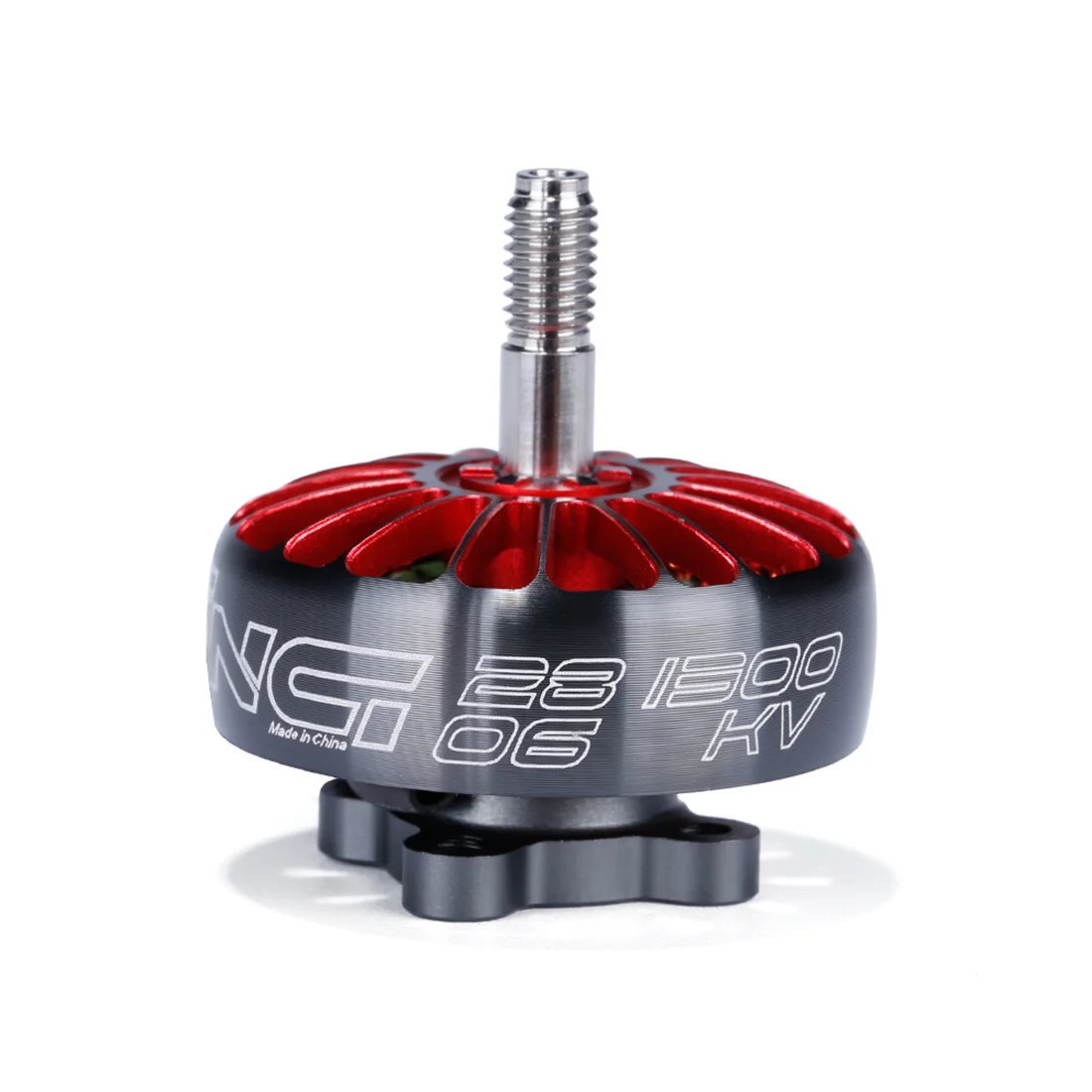

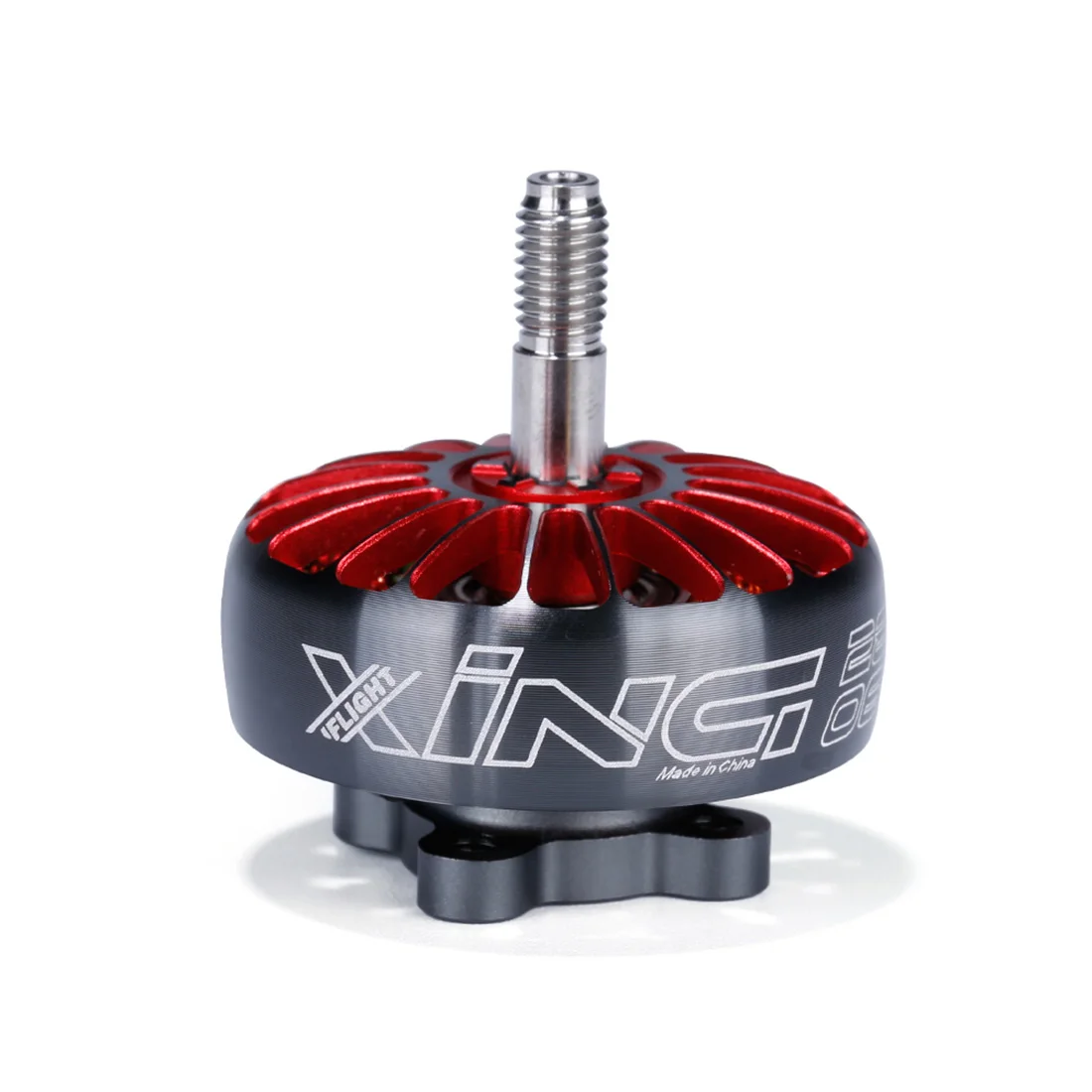

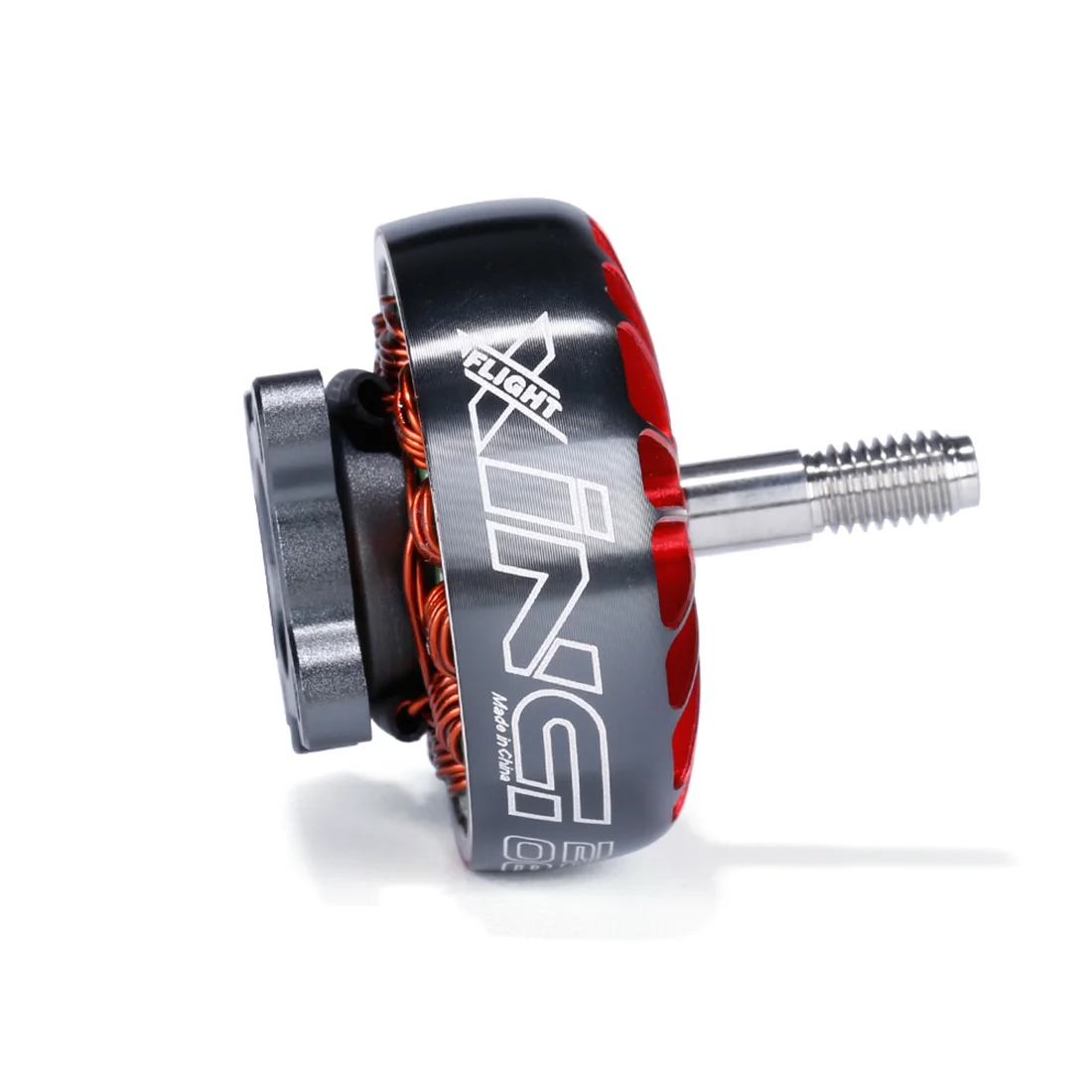

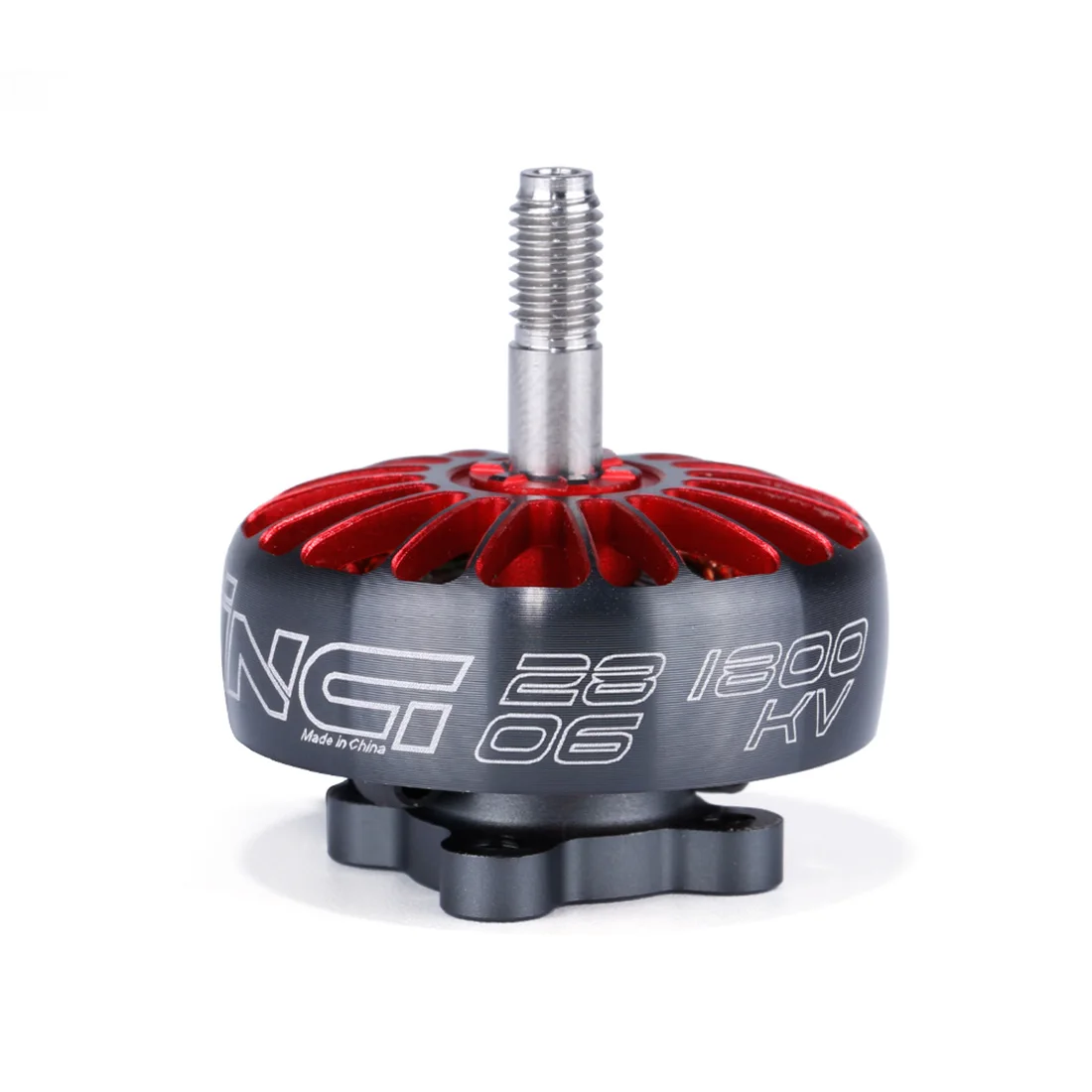

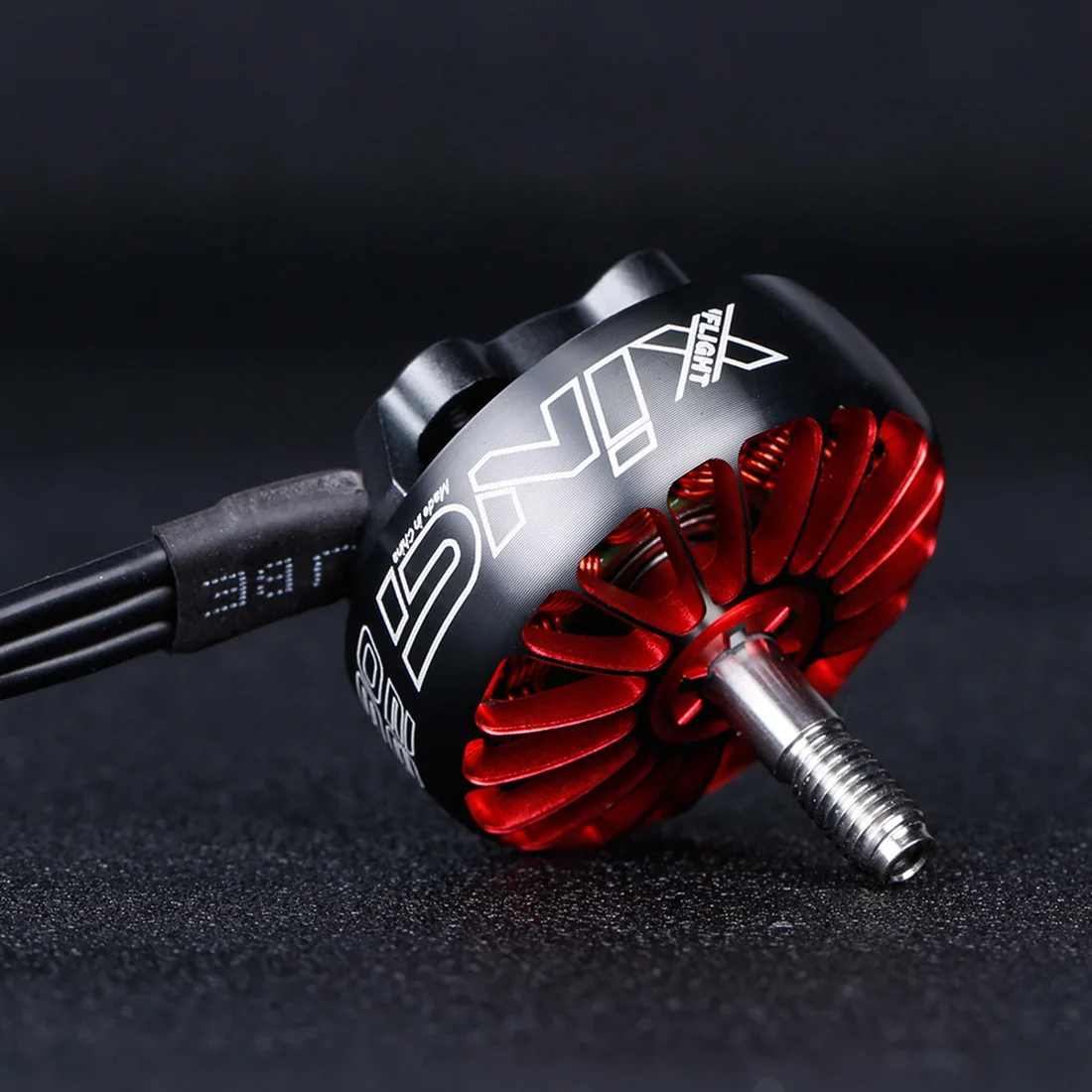

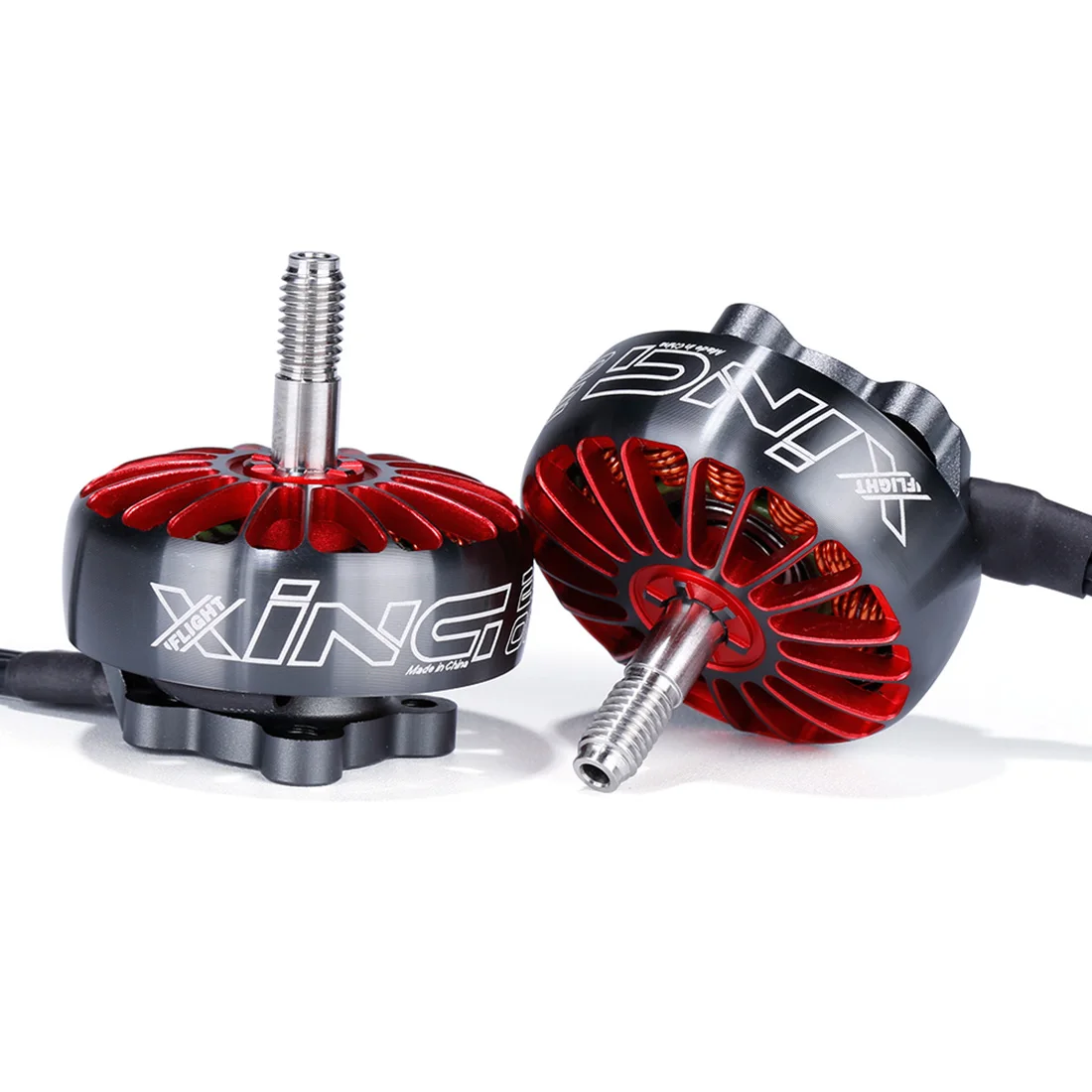

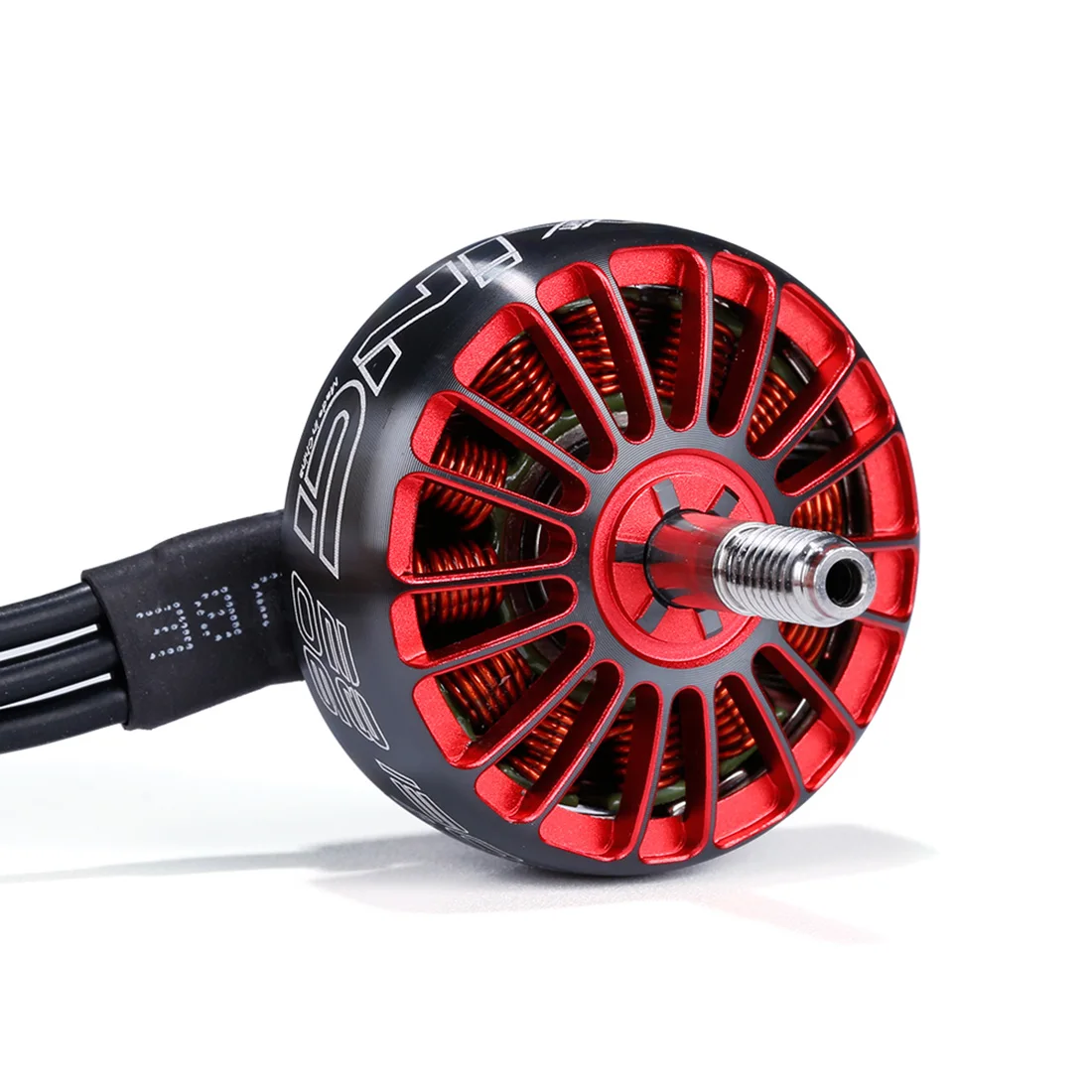

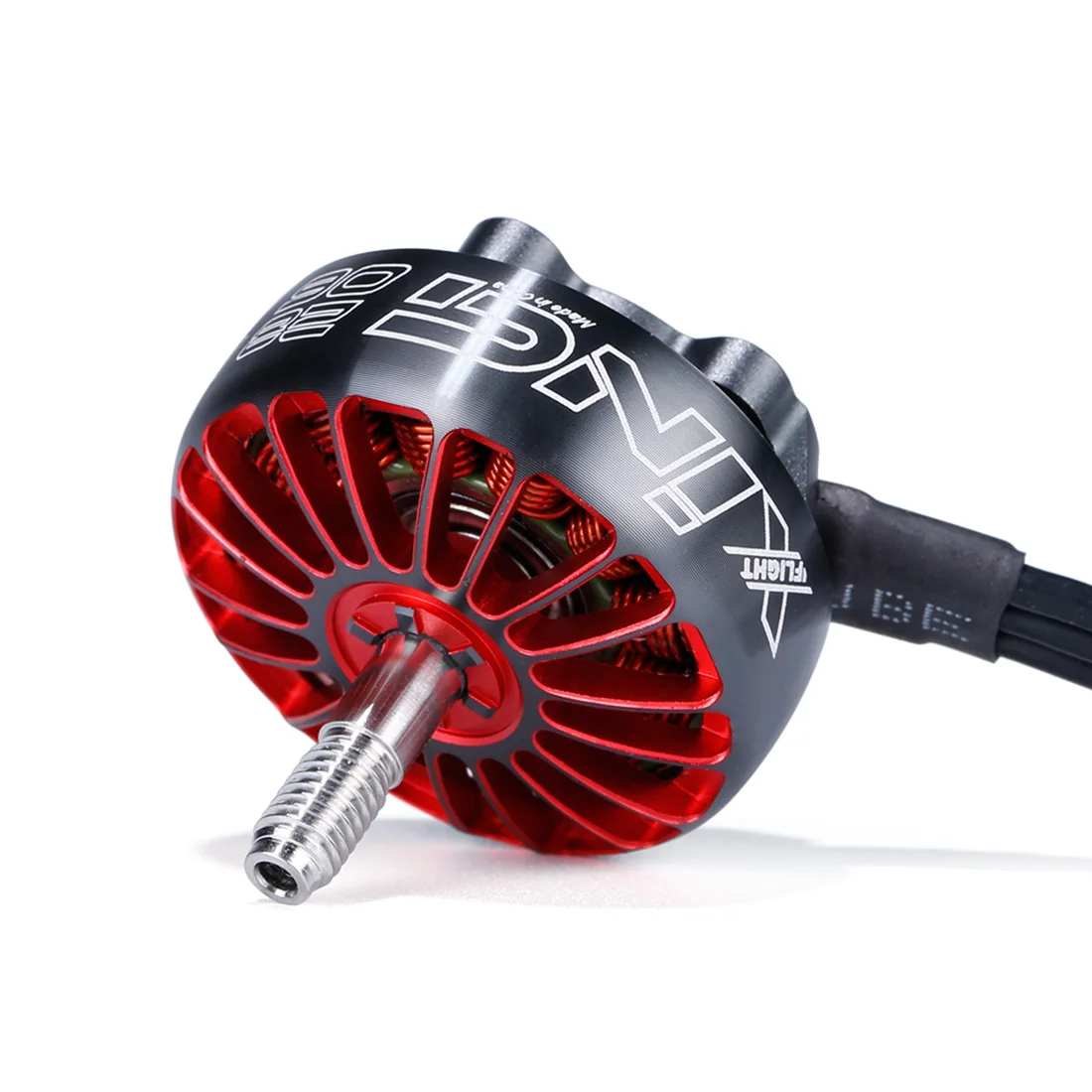

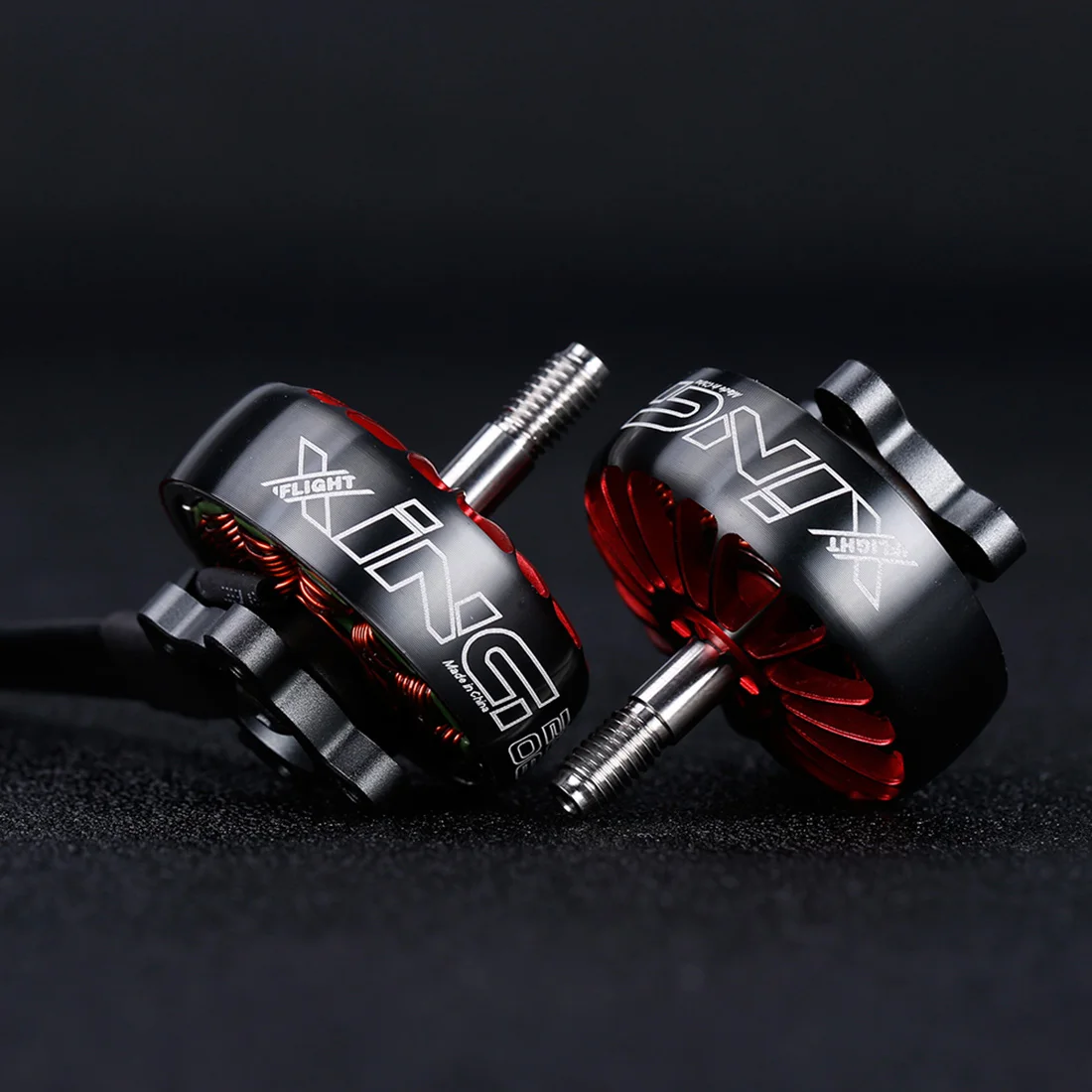

iFlight XING X2806.5 2806 1300KV 1800KV FPV NextGen FPV Motor Brushless Motor for RC Drone FPV Racing

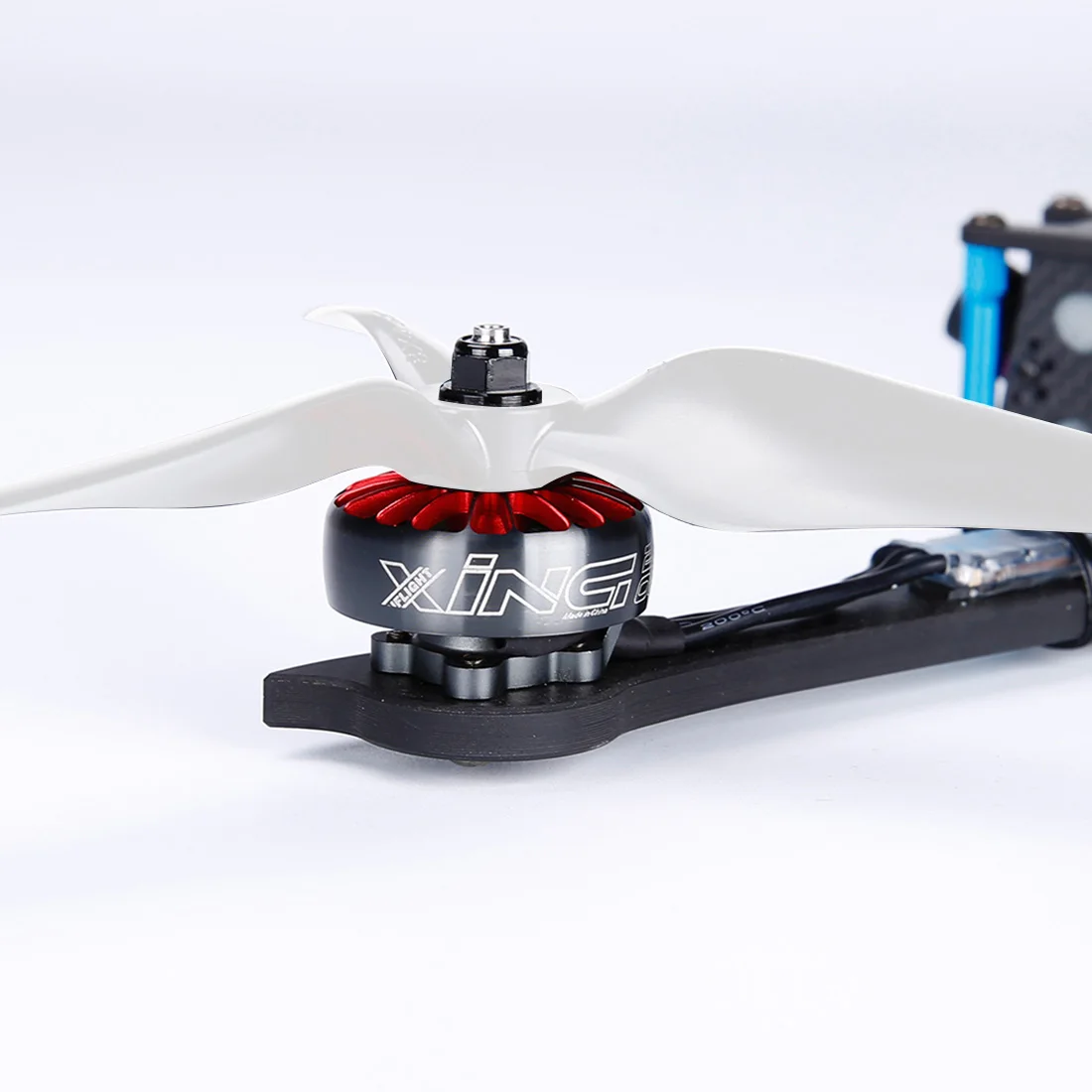

The Motor XING 2806.5 designed for bigger quads like 7-8 inch quad frames, which is with better efficiency in this range frames.The XING 2806.5 features uni-bell design and adopt Japan NSK bearing, N52H arc magnets. It offers incredible thrust number, highly responsive and extremely smooth flight characteristics. The bigger stator size 2806.5 allows it to provide instant power to save you from those crazy mountain dives last minute. It's a great motor if you're building bigger drones like 7 inch or 8 inch.

Features:

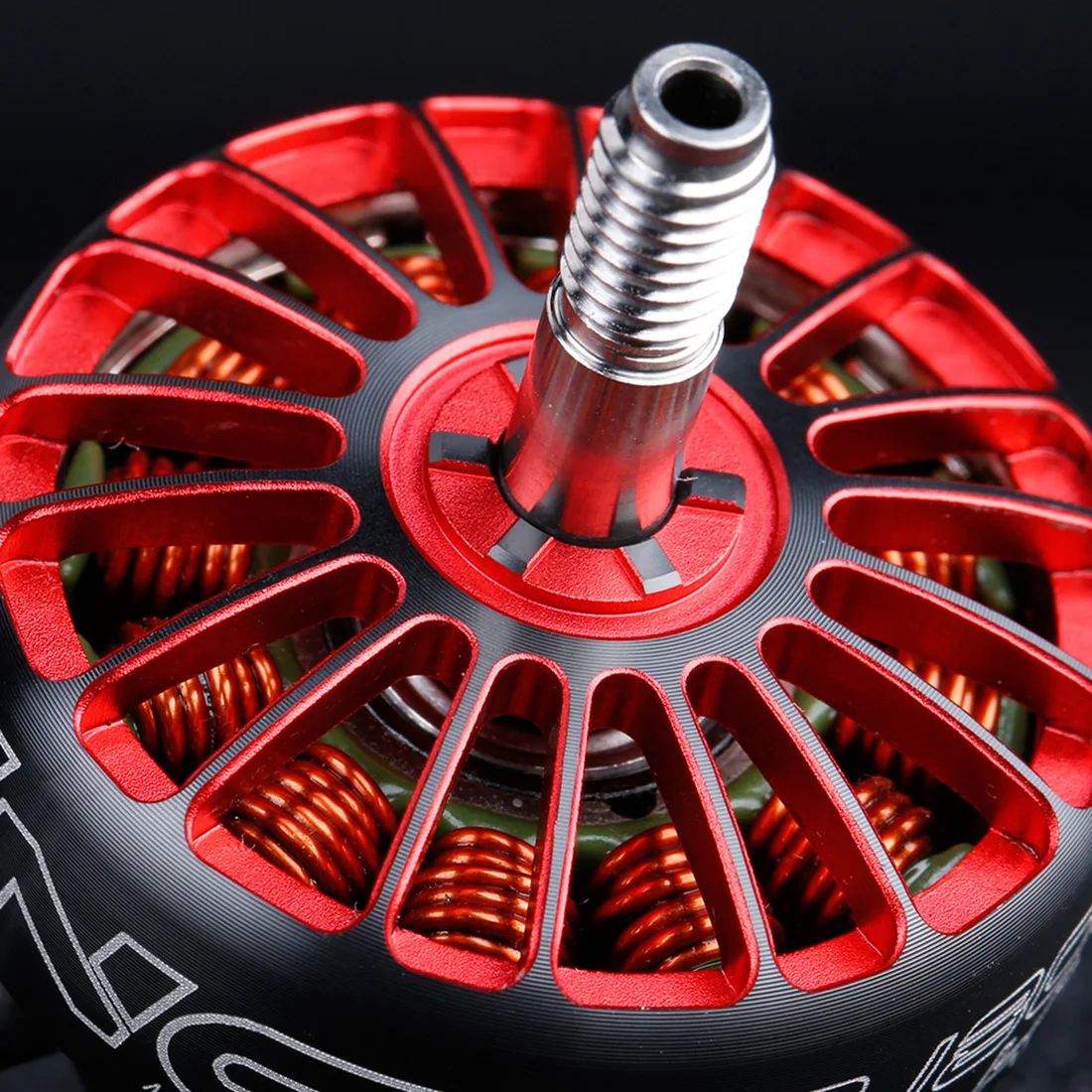

*High-strength 4mm Titanium alloy shaft

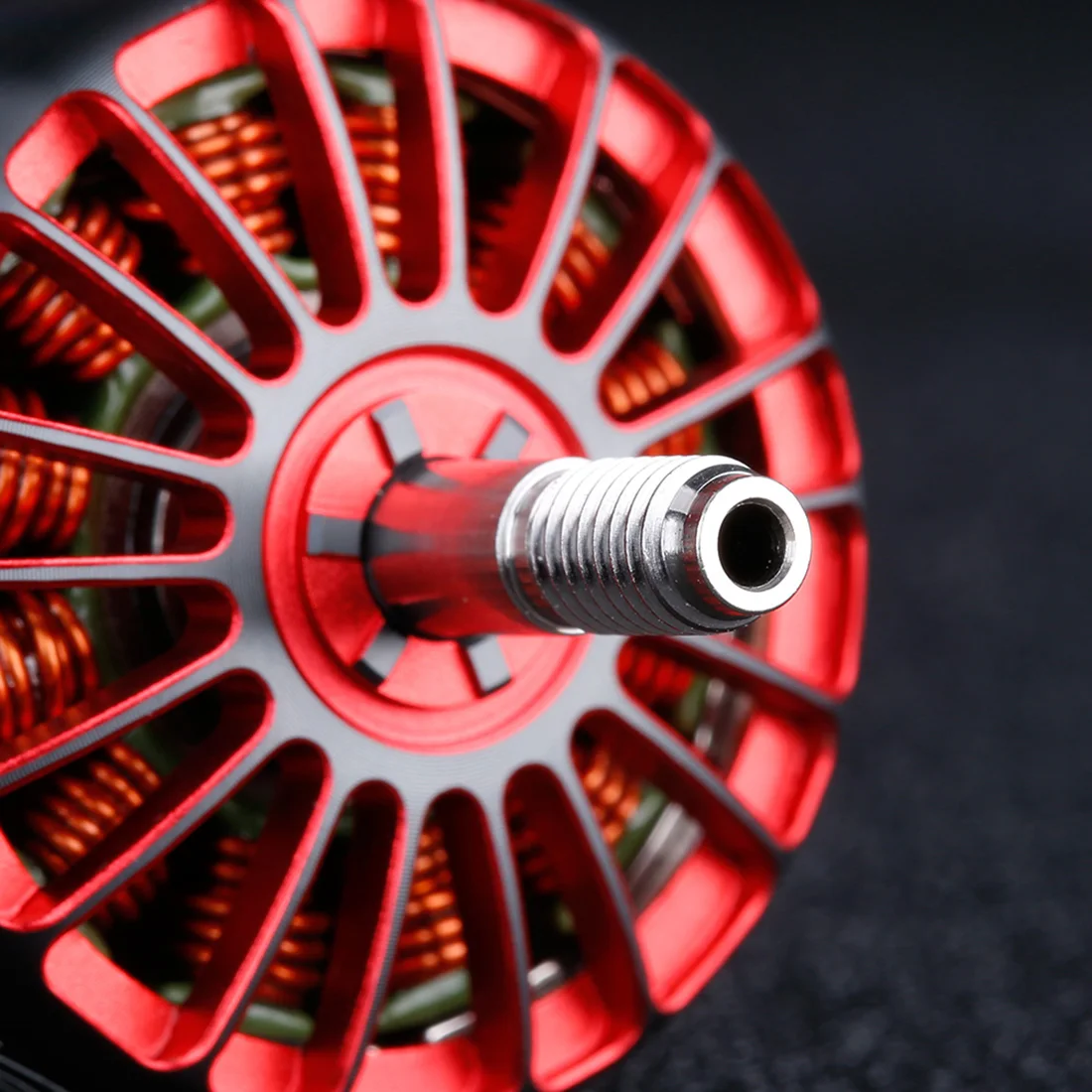

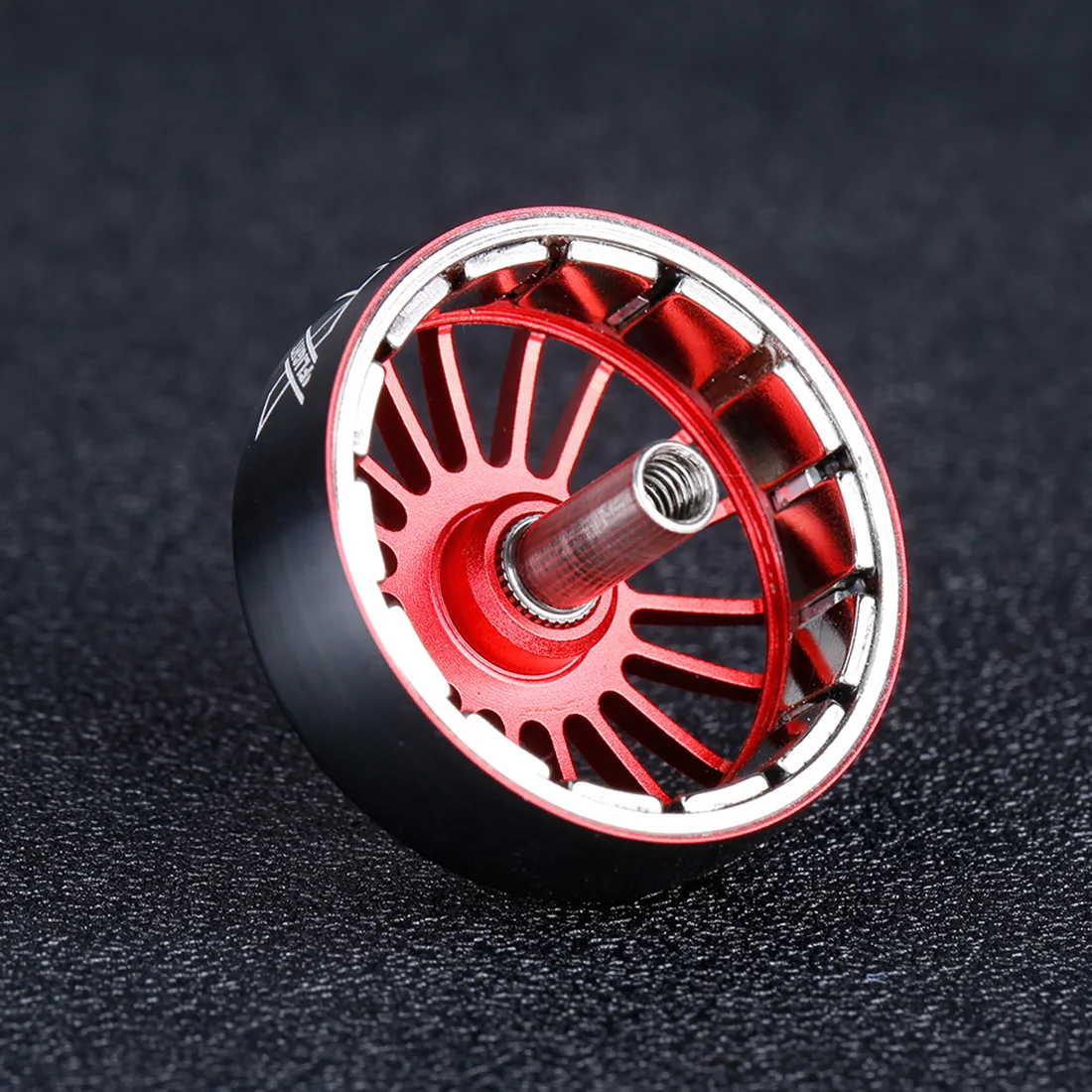

*Unibell design

* 7075 aluminum Bell and Base

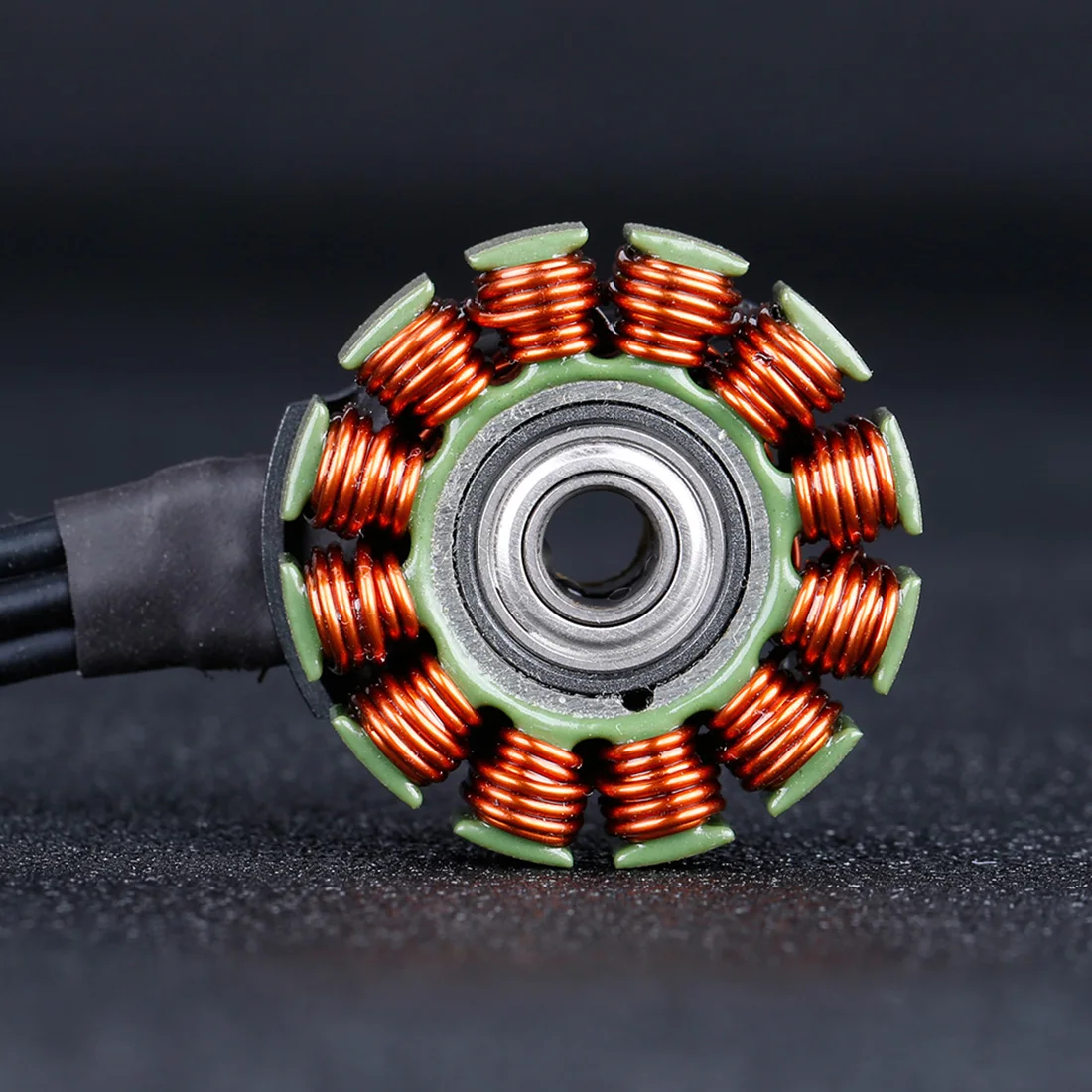

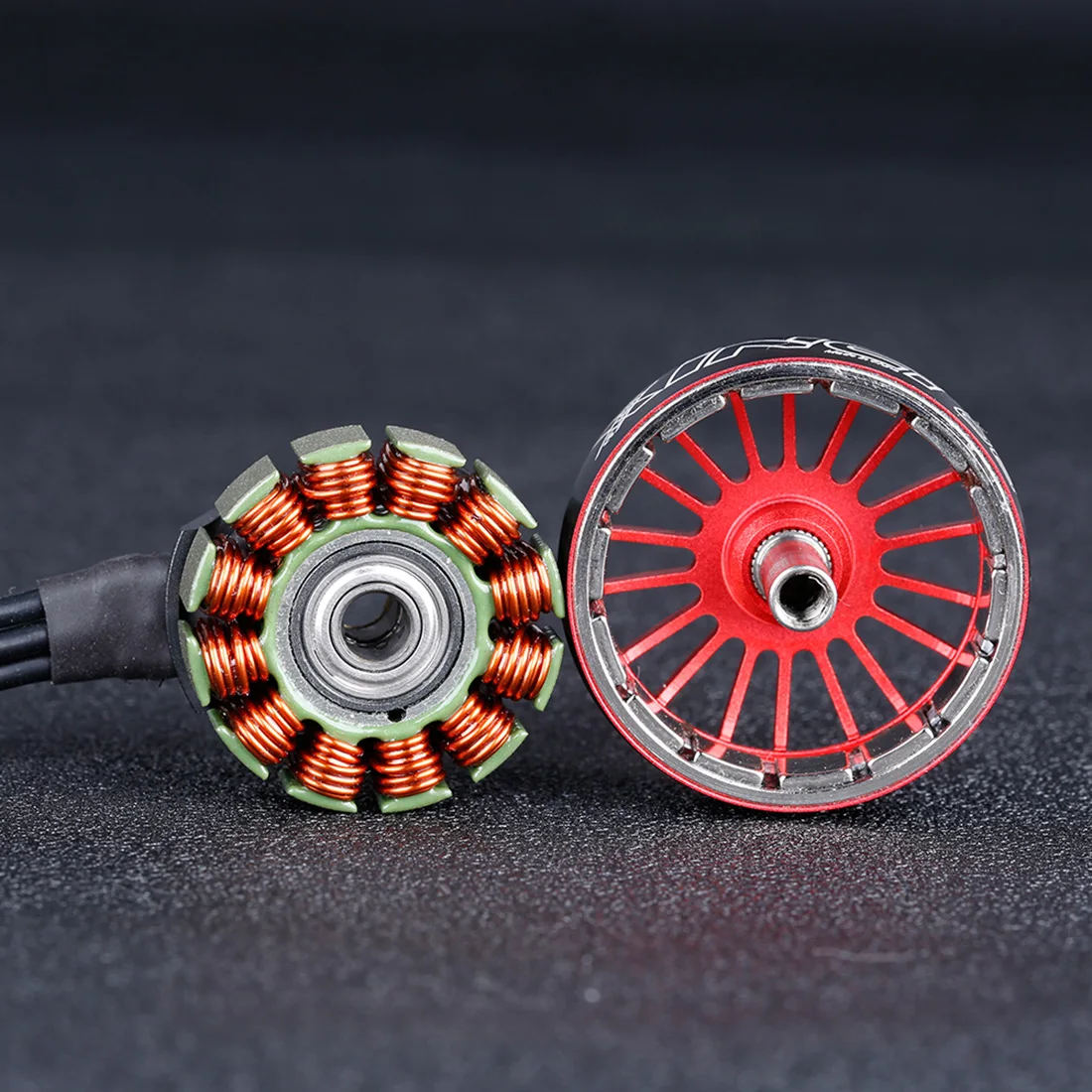

*Electromagnetically matched magnets and stator

*Japanese NSK 11*5*5 bearings

*N52H Arc curve magnets

*Motor wires protected

*Hex bolt shaft set screw

*Dynamically balanced

Specification:

-Voltage: 2-6S

-KV Option: 1300/1800

-Configuration: 12N14P

-Bearing: NSK/11*5*5

-Stator Diameter: 28

-Stator Length: 6.5mm

-Shaft Diameter: M5

-No.of Cells(Lipo): 2-6S

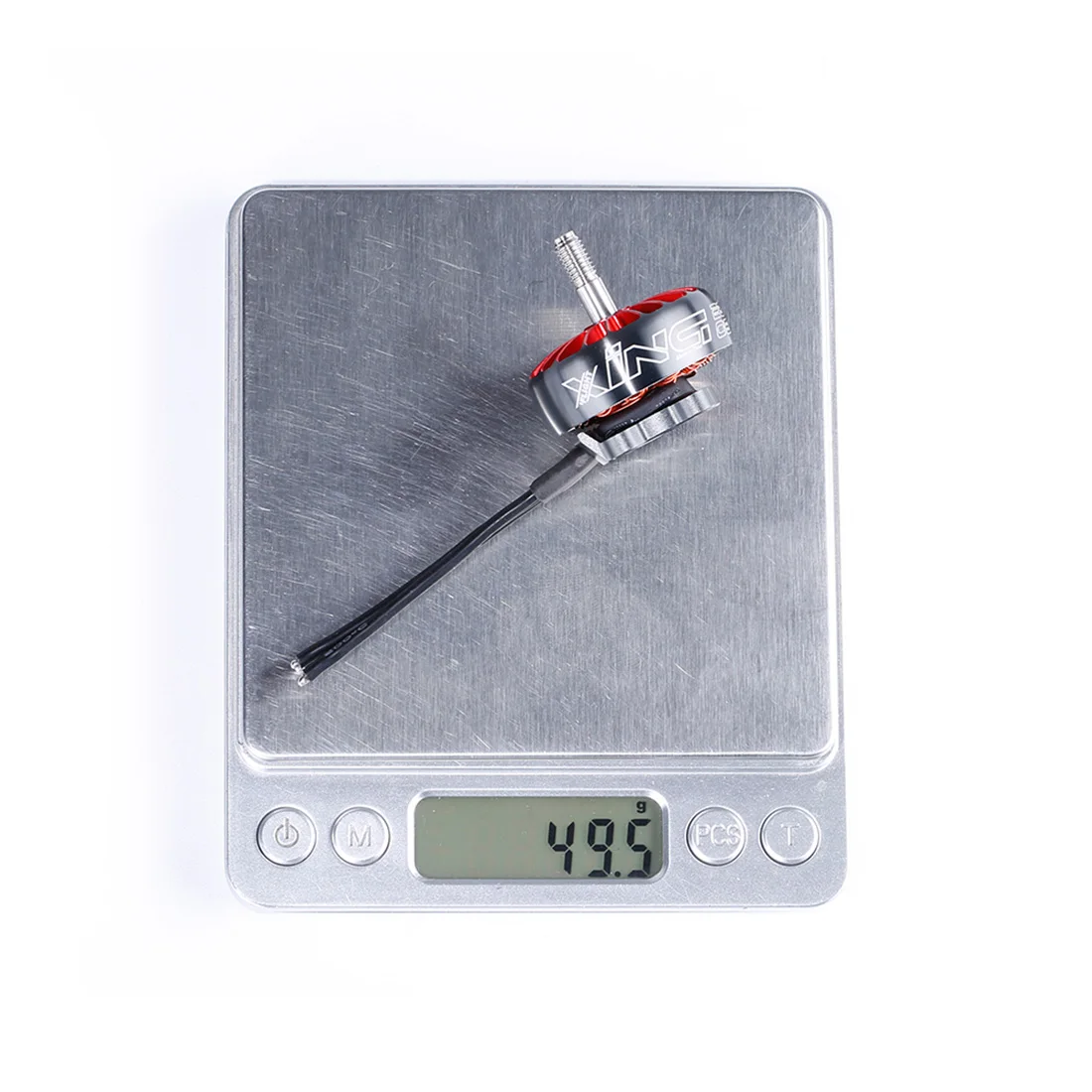

-Weight: 49.5g(with a short cable)

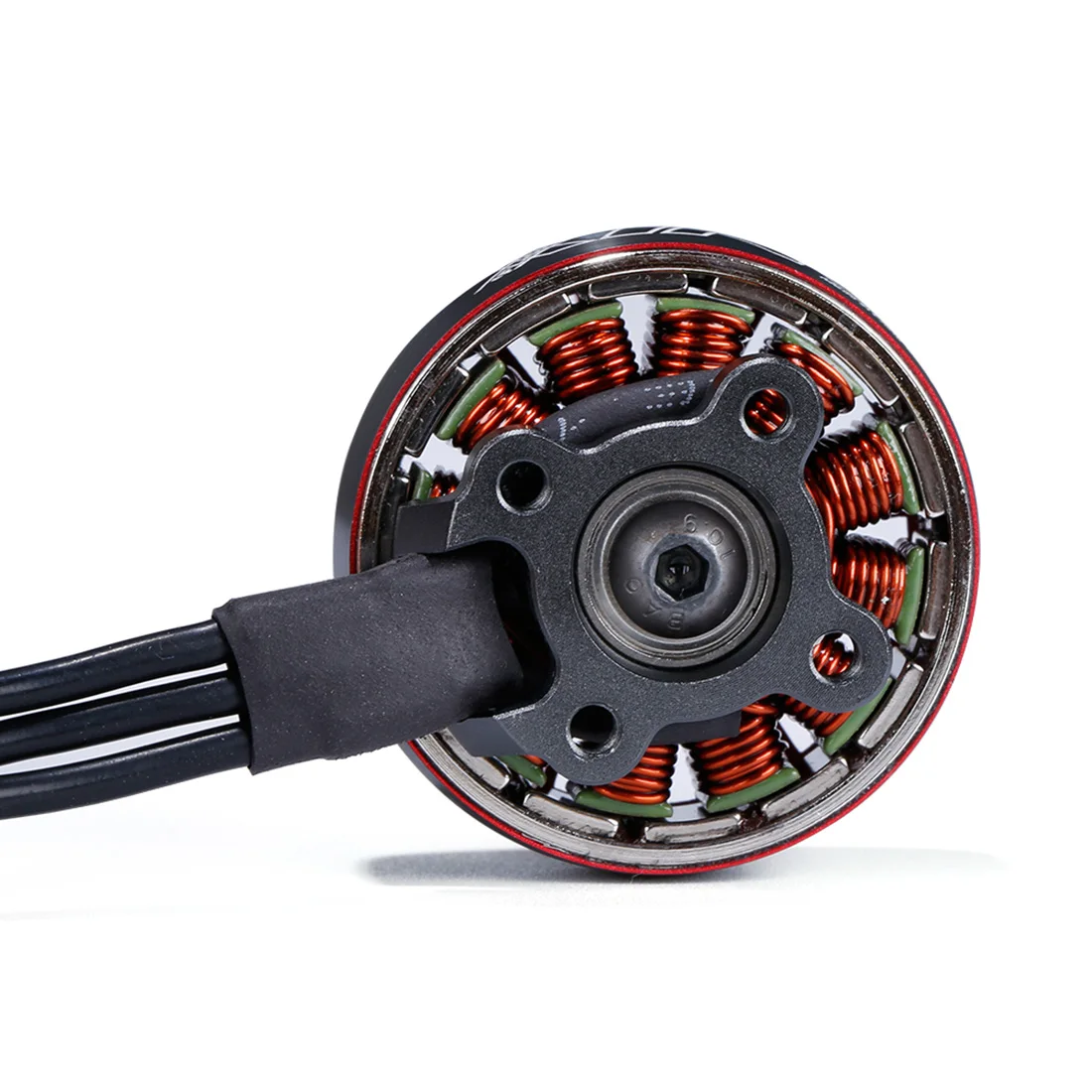

-Motor mount hole: 19*19 φ3mm

Package included:

1pc x X22806.5 motor

1pc x M5 Screw nut

4pc x m3*8 screws
