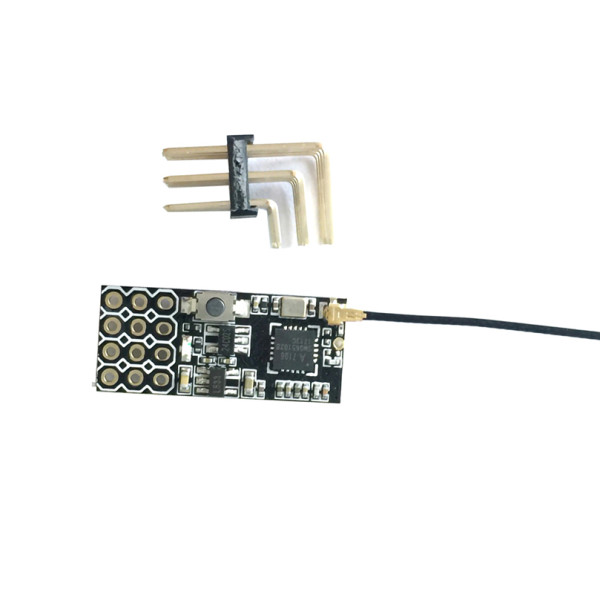

FS2A 4CH AFHDS 2A Mini Compatible Receiver PWM Output for Flysky i6 i6X i6S FS-i6 FS-i6X FS-i6S Transmitter Item NO.: 35552700

Write a Review

US$ 4.24

Quantity: Stock ( 999 )

Estimate Shipping Cost

Product Name	FS2A 4CH AFHDS 2A Mini Compatible Receiver PWM Output for Flysky i6 i6X i6S FS-i6 FS-i6X FS-i6S Transmitter
Item NO.	35552700
Weight	0.018 kg = 0.0397 lb = 0.6349 oz
Category	FPV Drone and Part
Brand	FEICHAO
Creation Time	2023-02-06

Channels: 4CH

Output signal: PWM

Frequency range: 2.408-2.475GHZ

Band width: 135

Receiver sensitivity: -92DBM

2.4G mode: AFHDS 2A

Failfe: Yes

Supply voltage: 3.3-10V

Distance: 400+ meters

Working current: 20MA

Dimensions: 11 * 25MM

Weight: 0.9 grams

Support: FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 and other AFHDS 2A protocol transmitter

Bind:

1. Press and hold the key on the receiver and connect the power to the receiver. The blue light on the receiver flashing, get into bindind mode.

2, Set the transmitter into bind mode (confirmed AFHDS 2A protocol). After getting into bind mode, the receiver light changes from flashing to slow flash.

3, Transmitter get out of bind mode, then the receiver blue light becomes bright. Indicates that the signal receive is successful.

Failsafe settings:

The receiver can normally receive the transmitter signal, push the rocker to the the failsafe set, long press the receiver bind button, the blue light flashes quickly several times and then always bright , failsafe settings is successful.

Pacakge Included:

1X FS2A 4CH AFHDS 2A Mini Compatible Receiver
