FEICHAO Beta75X 75mm BWhoop Frame for 75X 2S 75X 3S 75X HD 11XX Motor for 75mm Brushless Bwhoop FPV Racing Drone Item NO.: F40067/F40068

Write a Review

US$ 5.98

Color:
	US$ 5.98	Stock(10000)	- +
	US$ 5.98	Stock(10000)	- +

Quantity: 0 , Subtotal 0

Product Name	FEICHAO Beta75X 75mm BWhoop Frame for 75X 2S 75X 3S 75X HD 11XX Motor for 75mm Brushless Bwhoop FPV Racing Drone
Item NO.	F40067/F40068
Weight	0.12 kg = 0.2646 lb = 4.2329 oz
Category	FPV Drone and Part > RC Parts
Brand	FEICHAO
Creation Time	2020-10-14

BETAFPV Beta75X 75mm BWhoop Frame for 75X 2S 75X 3S 75X HD 11XX Motor for 75mm Brushless Bwhoop FPV Racing Drone

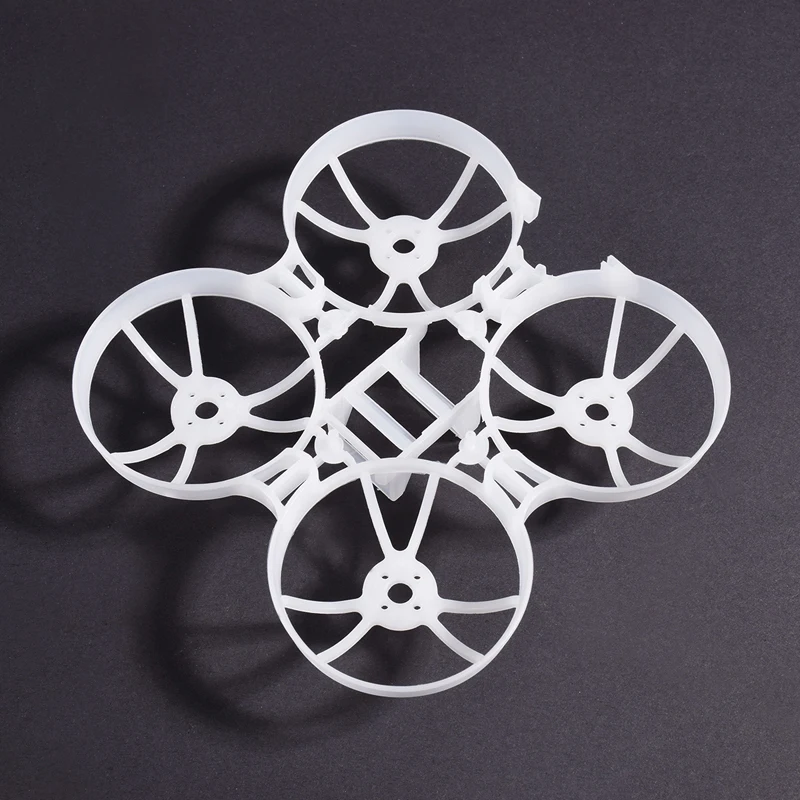

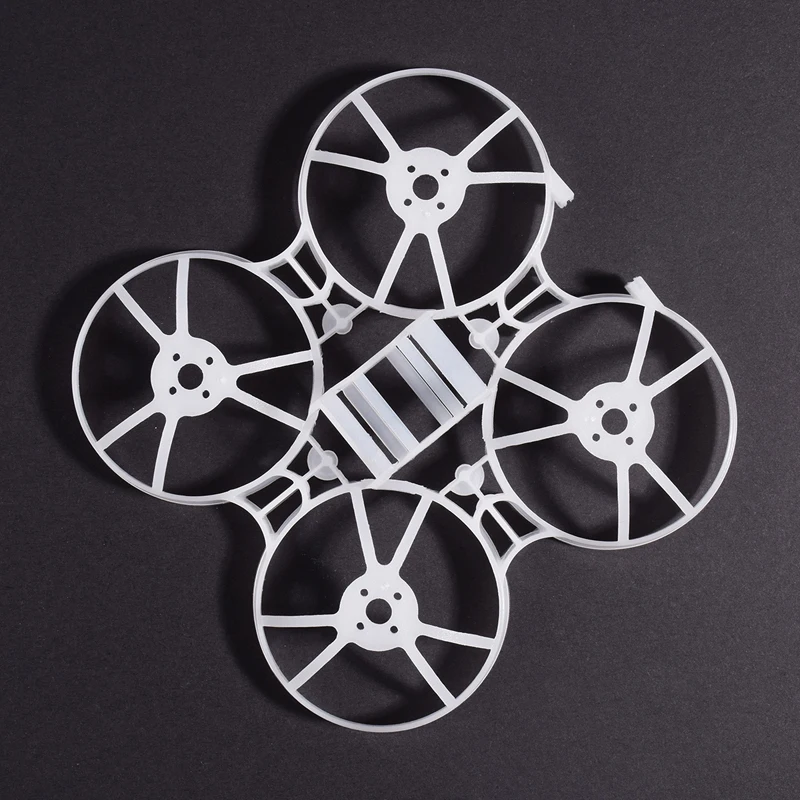

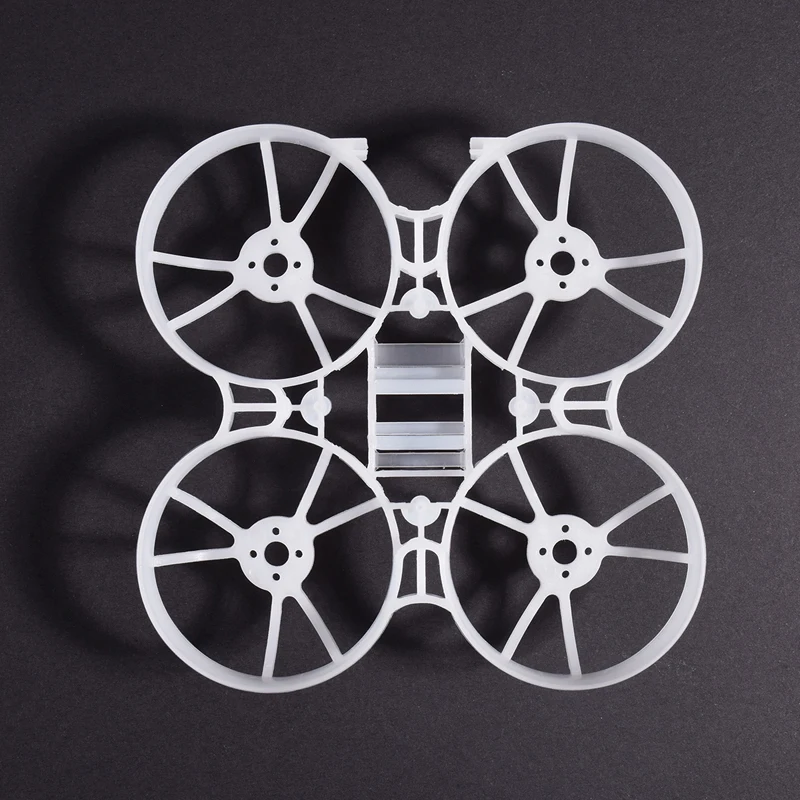

This Beta75X frame is customed for 75mm brushless whoop drone. This frame natively support 110x motors. Also it has a customed battery slot to support 2S battery and you could modify it easily by cut out the stickers to fit 3S 300mah battery. The FC mounting columns still match the whoop style FC boards. At the same time, we would like to keep it durable and light enough for a whoop beast. Come with plastic durable package, which can protect the package from deformation during the shipping process.

SPECIFICATION
Material: Clear plastic

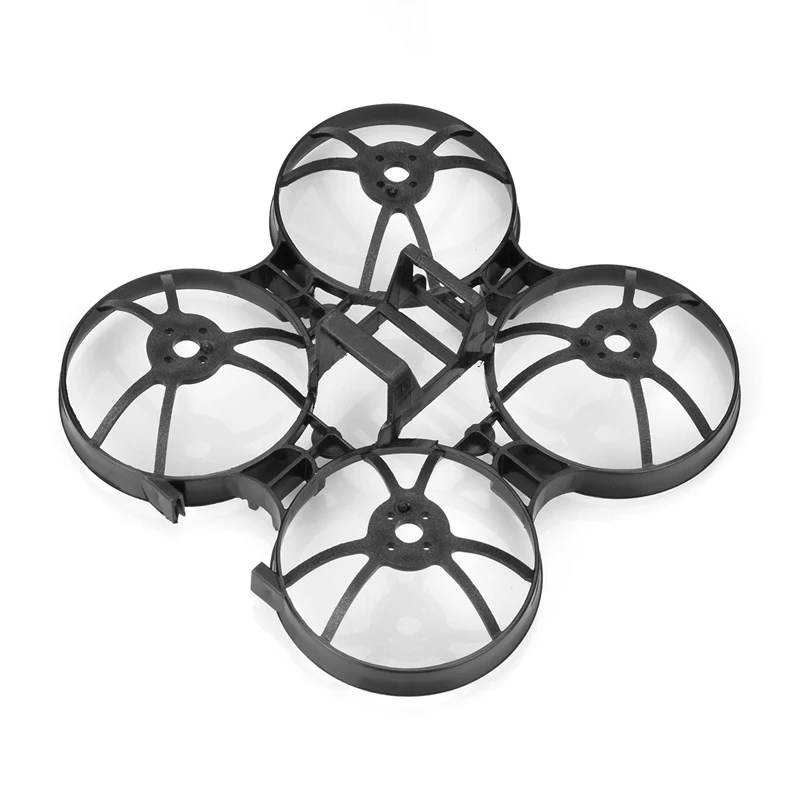

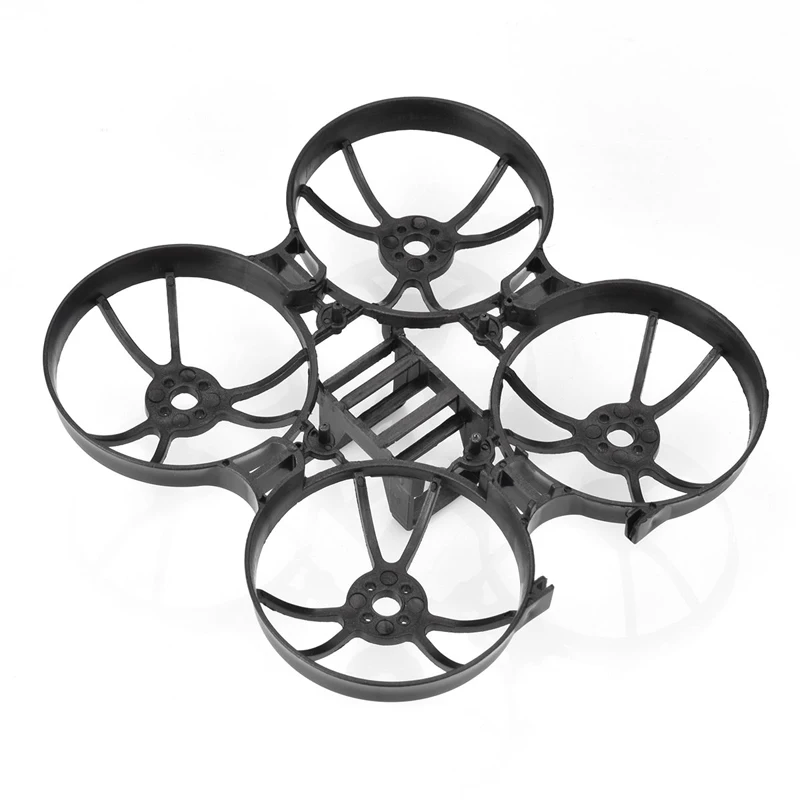

Color: Black / White
Diagonal motor to motor distance: 75mm
Motor mounting hole: only for BETAFPV 1103 motors
FC mounting hole: fully compatible with whoop style FC board mounting pattern, 26mm x 26mm
Battery slot size: 11.5x16mm, for BETAFPV 300mAh battery

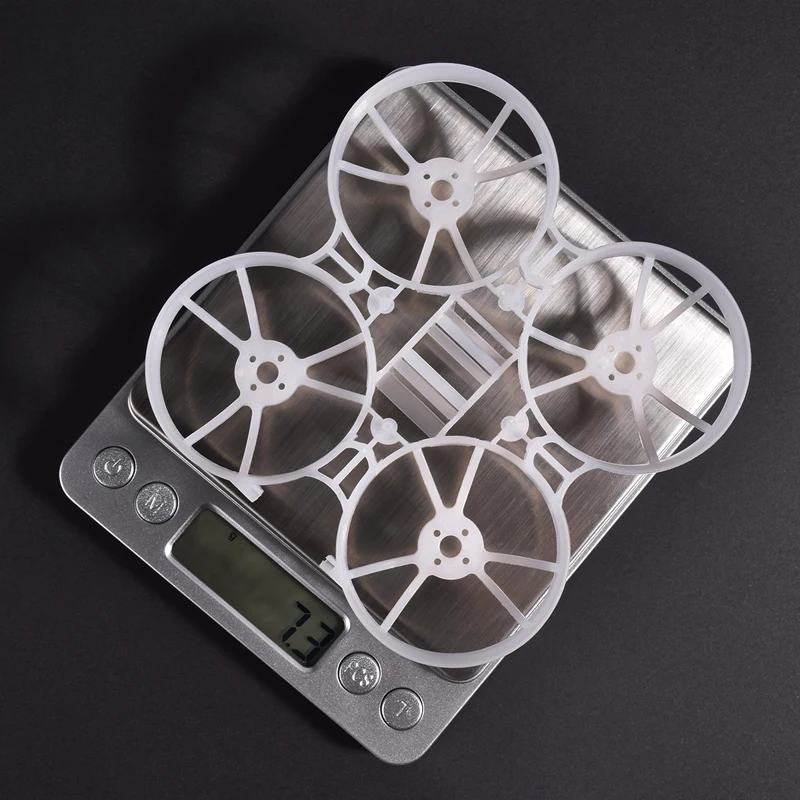

Weight: 7.3g

RECOMMENDED PARTS
Propellers: 40mm 4-blade props (1.5mm shaft hole)
Motors: 110x brushless motors, like 1103 11000KV motors
Battery: 3S 300mAh Battery / 2S 300mAh Battery / 2pcs 1S 300mAh Battery
FC & ESC: BETAFPV 2S Whoop FC stack
