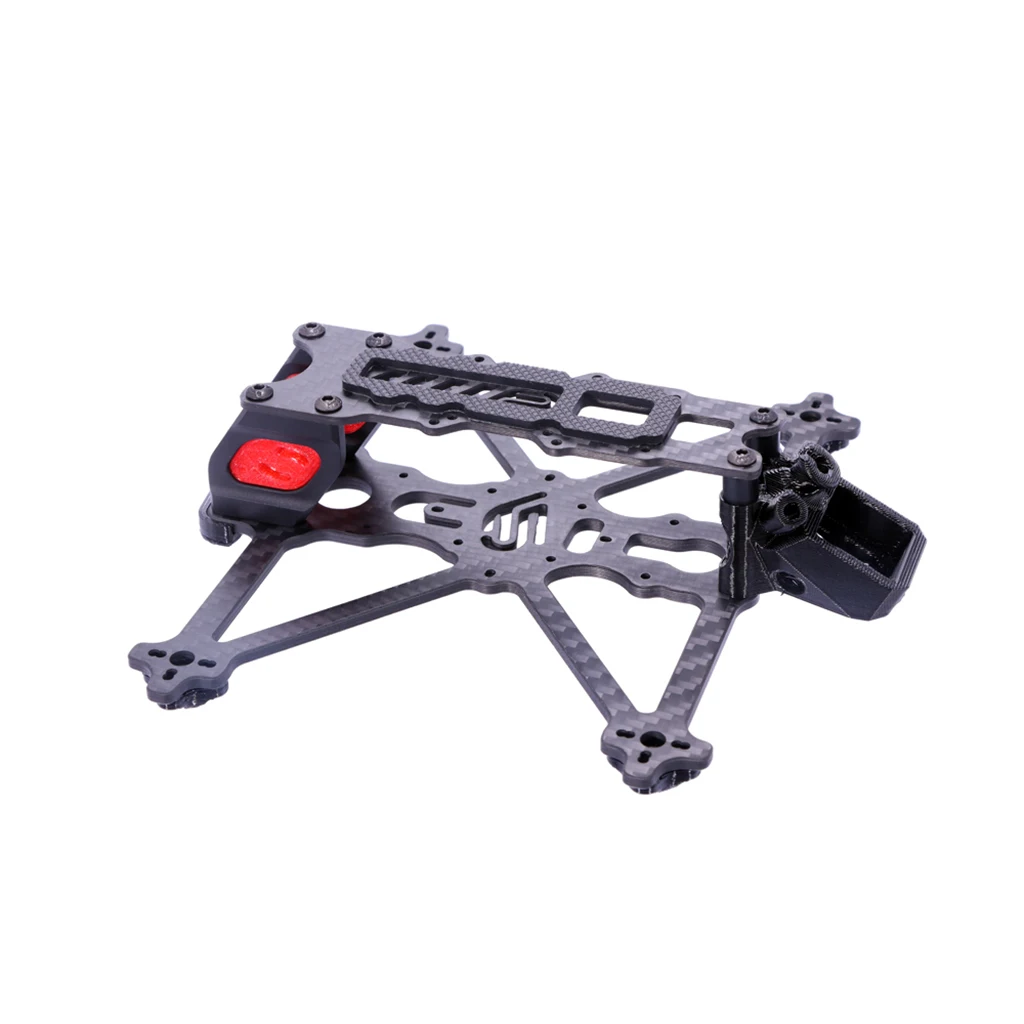

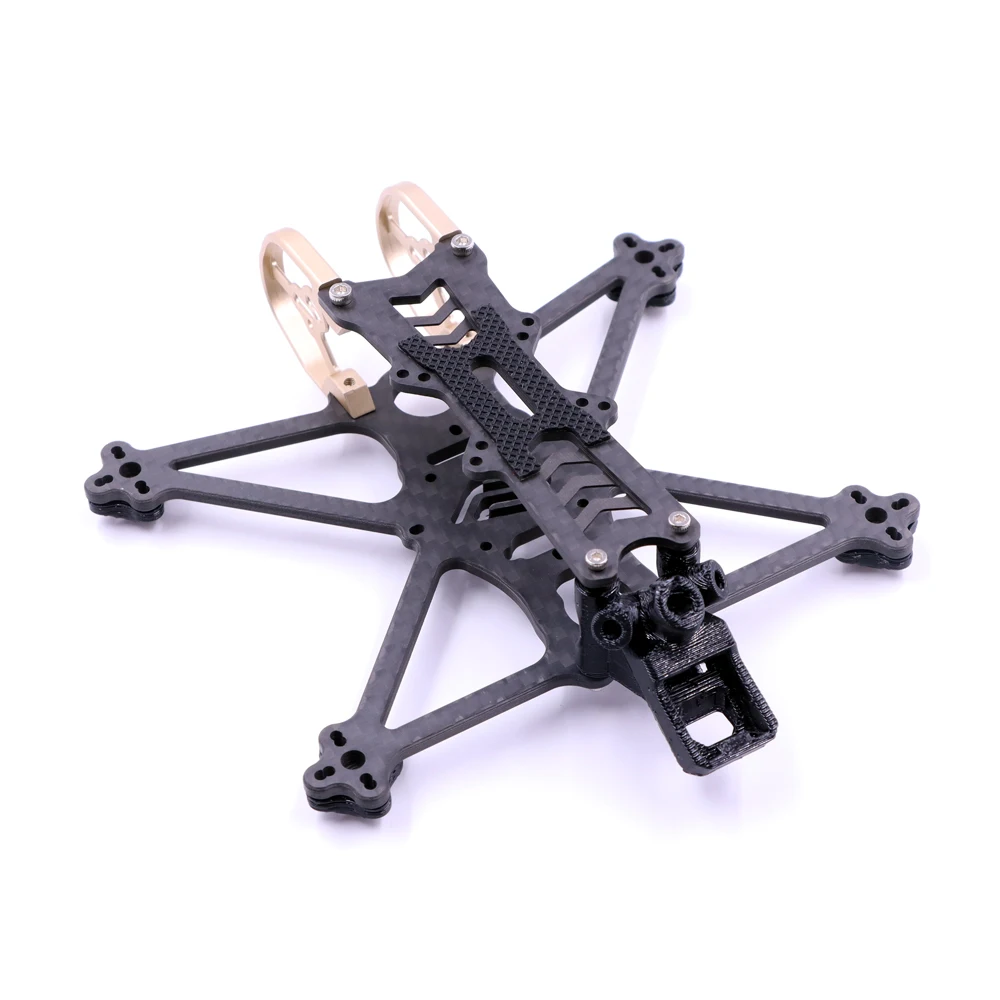

AlfaRC Fi-150 EVO 3.5inch Propeller Frame Kit RC Racing Drone For DJI O3 Air Unit Caddx Nebula flight control Motor Elrs GPS
Specification:
Model: Fi-150 EVO
Wheelbase: 152MM
Bottom Plate Thickness: 3mm.
Upper Plate Thickness: 2mm.
Side plate thickness:1.5mm.
Internal height：28mm.
FC Hole distance: 25.5x25.5 /26.5*26.5 / 20X20MM（Two or one group）
Motor Hole distance: 9*9/12*12MM
Suitable propeller: 3.5Inch
Suitable FPV camera: 20MM
GPS bin size：19*20mm(BN180)
Weight: 61g（Different production batches will vary）
Material: 3K Carbon Fiber
Package list:
1 set Frame KIT, without any electronic equipment.

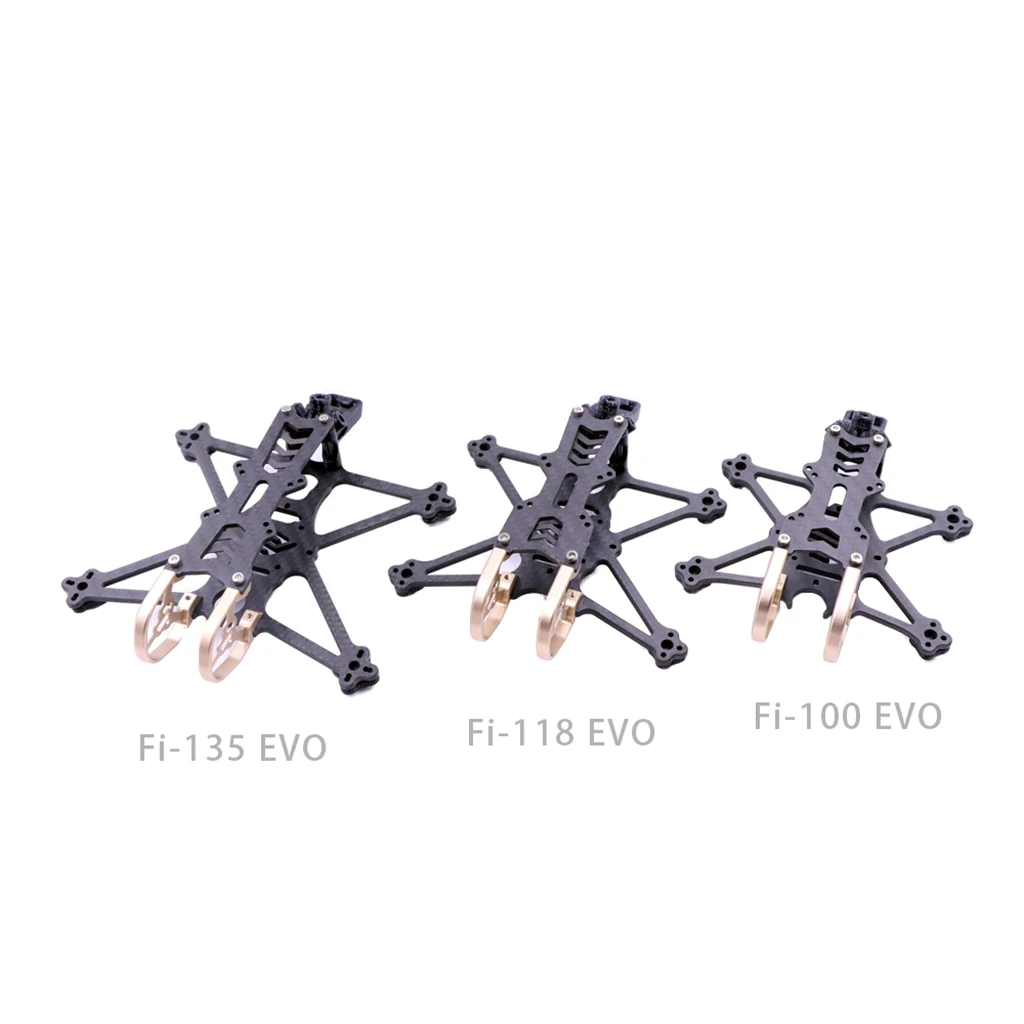

AlfaRC Fi-100 EVO 2inch Propeller Toothpick Frame Kit RC Racing Drone Quadcopter Freestyle support 1103 1104 1206 Brushless Motor
Specification:
Model: Fi-100-EVO
Wheelbase: 100MM
Bottom Plate Thickness: 3mm.
Upper Plate Thickness: 1.5mm.
Internal height：23mm.
FC Hole distance: 25.5x25.5 /26.5*26.5 / 20X20MM
Motor Hole distance: 9*9MM
Suitable propeller: 2Inch
Suitable FPV camera: 19-20MM
GPS bin size：17*12.5*5mm(BE122/BZ122)
Weight: 29g（Different production batches will vary）
Material: 3K Carbon Fiber
Package list:
1 set Frame KIT, without any electronic equipment.
AlfaRC Fi-118 EVO 2.5inch Propeller Toothpick Frame Kit RC Racing Drone Quadcopter Freestyle For DJI O3 Air Unit Caddx Nebula support 1103 1104 1206 Brushless Motor
Specification:
Model: Fi-118-EVO
Wheelbase: 118MM
Bottom Plate Thickness: 3mm.
Upper Plate Thickness: 2mm.
Internal height：23mm.
FC Hole distance: 25.5x25.5 /26.5*26.5 / 20X20MM
Motor Hole distance: 9*9MM
Suitable propeller: 2.5Inch/65MM
Suitable FPV camera: 19-20MM
GPS bin size：17*12.5*5mm(BE122/BZ122)
Weight: 32g（Different production batches will vary）
Material: 3K Carbon Fiber
Package list:
1 set Frame KIT, without any electronic equipment.
AlfaRC Fi-135 EVO 3inch Propeller Toothpick Frame Kit RC Racing Drone For DJI O3 Air Unit Caddx Nebula 1204 1206 1306 1303 Motor
Specification:
Model: Fi-135-EVO
Wheelbase: 135MM
Bottom Plate Thickness: 3mm.
Upper Plate Thickness: 2mm.
Internal height：23mm.
FC Hole distance: 25.5x25.5 /26.5*26.5 / 20X20MM
Motor Hole distance: 9*9MM
Suitable propeller: 3Inch/75MM
Suitable FPV camera: 19-20MM
GPS bin size：17*12.5*5mm(BE122/BZ122)

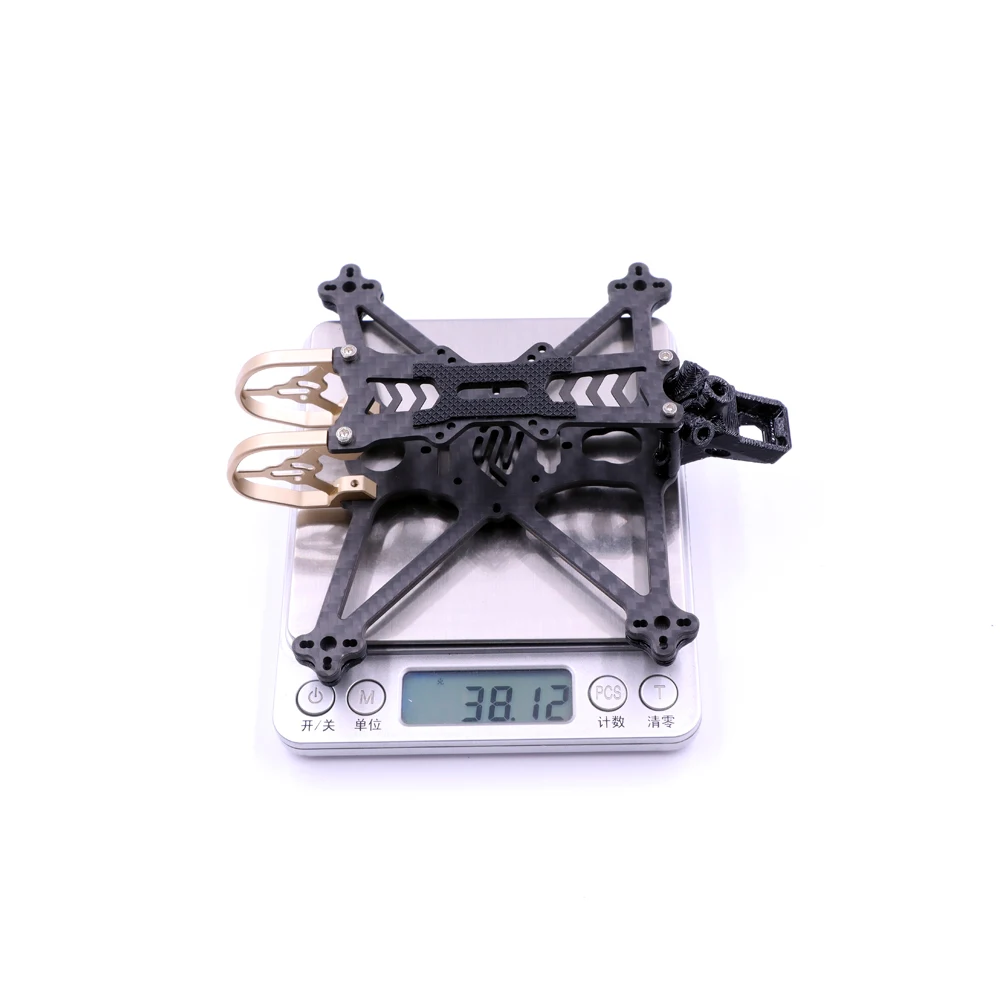

Weight: 38g（Different production batches will vary）
Material: 3K Carbon Fiber
Package list:
1 set Frame KIT, without any electronic equipment.
