Tarot TL300N4 5.8G 32CH 1000mW Wireless AV Transmitter with Aluminum Case + Mushroom Antenna Sender Set
TAROT desgined 32CH 1000mw 5.8G image transmission system have a super mini size and light weight, we applied 6061T6 aluminum alloy case for heat dissipation, especially for small-scale multi-axis rotary wing aircraft as well as the current through the machine. 32 conventional frequency compatible frequency, provides one video channel, 2-way audio channel long-distance transmission, in addition to providing 5V 1A power output (can be used for image overlays, video cameras supply.
Please confirm the voltage and current to prevent equipment from burning). Transmitter weights 30.9g only (without antenna).
Specification:
-Weight: 30.9G (without antenna)
-Dimension: 50.3×30×15MM
-Working Frequency: 5645-5945MHz
-Channel: 4 bands / 32 channel
-5-DIP switch
-Output Power: 30.5dbm (1000mw)
-Input Voltage: DC 7-26V (2-6S)
-Output Voltage: 5V 1A
-Antenna Adaptor: RP-SMA 50 ohm
-Working Temperature: -10 ~ 60 degrees.
-FM Frequency: FM
Note:
1,Install the antenna before connecting the power to avoid further damage.
2,Choose proper working frequency and tune the receiver to the same frequency. Please refer to the channel list.
3,Do not touch the surface of transmitter while operating. It is normal the surface is getting hot.
4,The input voltage range is between 7-26V (2-6S), do not overload the working voltage.
5,The output voltage is 5V1A. Please confirm the current and voltage of the camera

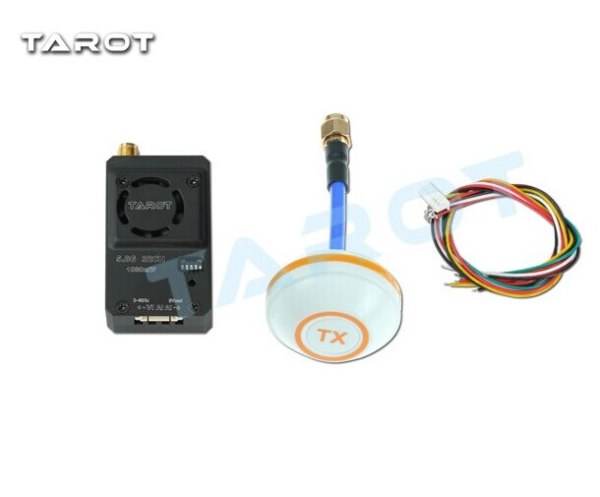

Package includes:
-tarot 5.8G FPV audio and video transmitter × 1
-7P color strip line × 1
-5.8g transmitting antenna × 1
