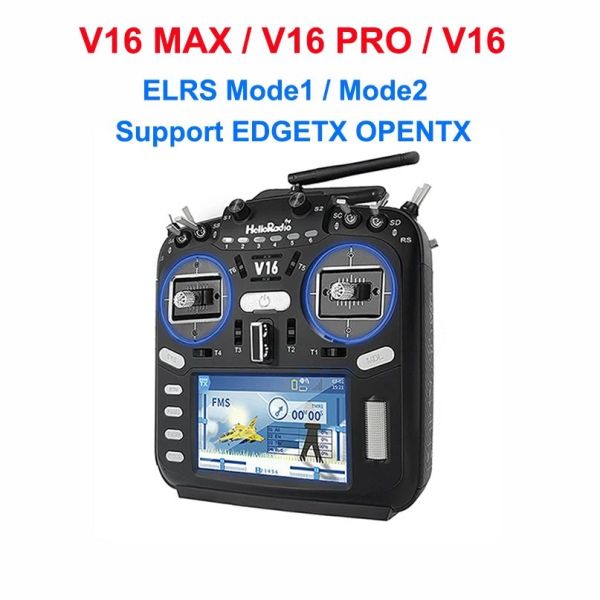

HelloRadio V16 MAX ELRS Multi Protocol Transmitter Remote Control Support EDGETX OPENTX FPV High-Frequency Head Touch Screen Item NO.: 44476040

Write a Review

US$ 8.88

Color:
	US$ 124.74	Stock(999)	- +
	US$ 124.74	Stock(999)	- +
	US$ 144.24	Stock(999)	- +
	US$ 144.24	Stock(999)	- +
	US$ 193.33	Stock(999)	- +
	US$ 193.33	Stock(999)	- +
	US$ 193.33	Stock(999)	- +
	US$ 193.33	Stock(999)	- +
	US$ 193.33	Stock(999)	- +
	US$ 193.33	Stock(999)	- +
	US$ 193.33	Stock(999)	- +
	US$ 193.33	Stock(999)	- +
	US$ 8.88	Stock(999)	- +

Quantity: 0 , Subtotal 0

Product Name	HelloRadio V16 MAX ELRS Multi Protocol Transmitter Remote Control Support EDGETX OPENTX FPV High-Frequency Head Touch Screen
Item NO.	44476040
Weight	0.2 kg = 0.4409 lb = 7.0548 oz
Category	FPV Drone and Part
Brand	HelloRadio
Creation Time	2024-11-01

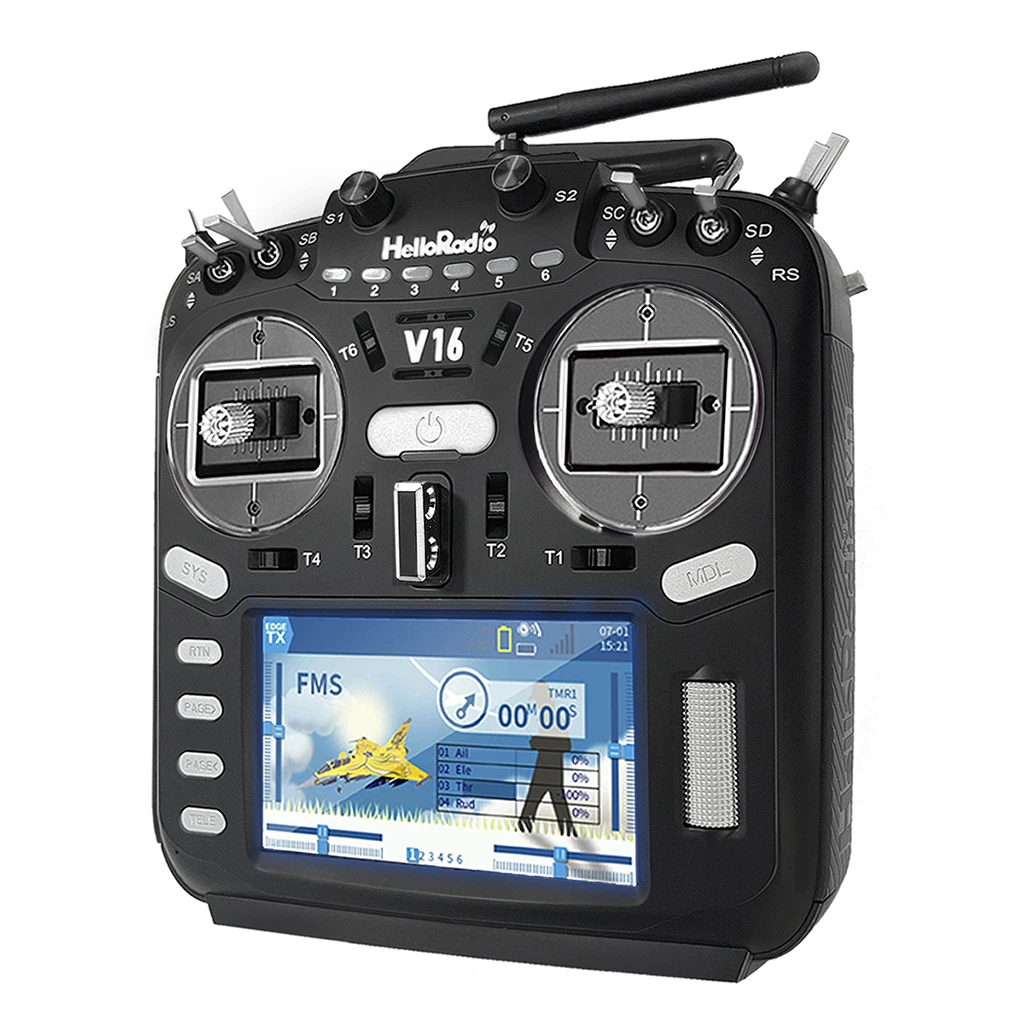

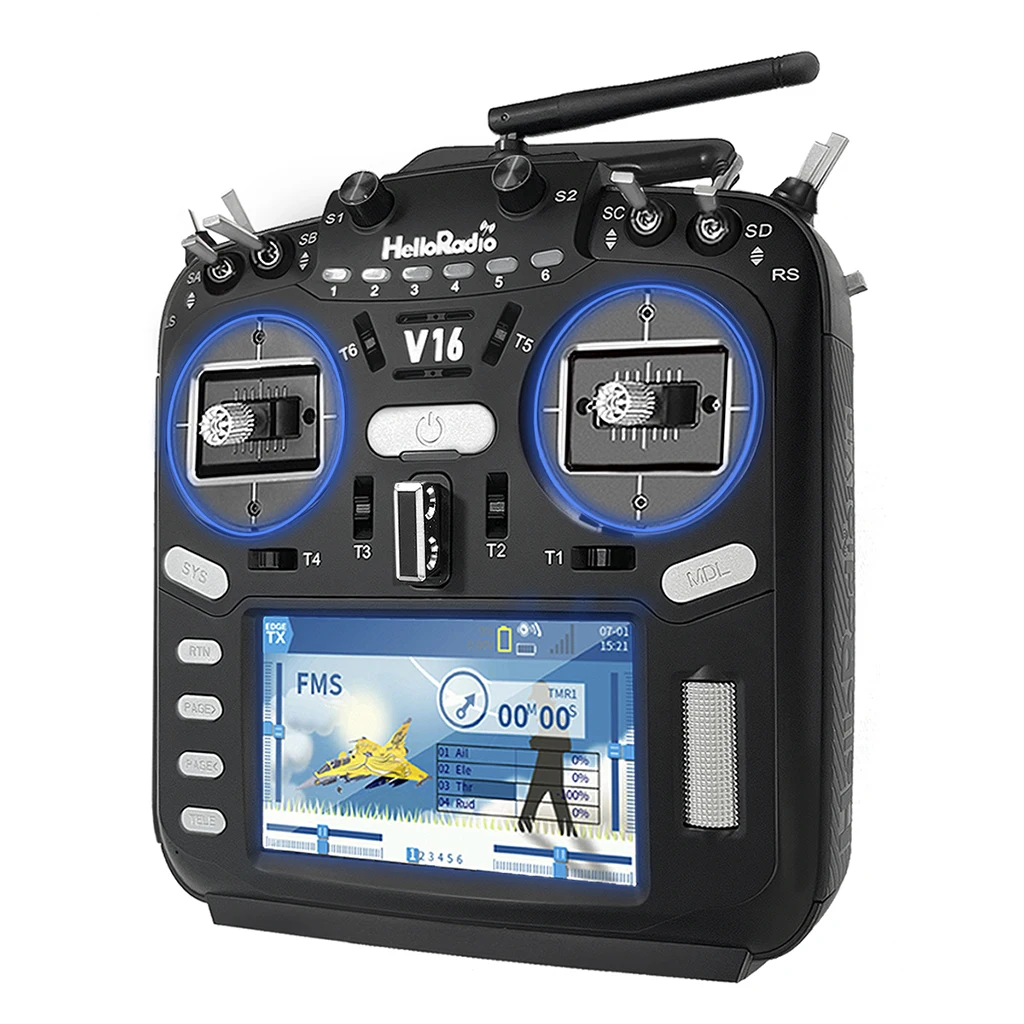

HelloRadio V16 MAX / V16 PRO / V16 ELRS 4in1 Multi Protocol Transmitter Remote Control Support EDGETX OPENTX High-Frequency Head Touch Screen

Mode2:Left Hand throttle
Mode1:Right Hand throttle

There are differences in versions. You will be sent according to your choice. There are three versions (V16, V16MAX, V16PRO).

If you need the 4-IN-1 version, please contact our customer service. 4-IN-1 is also available for sale. Thanks

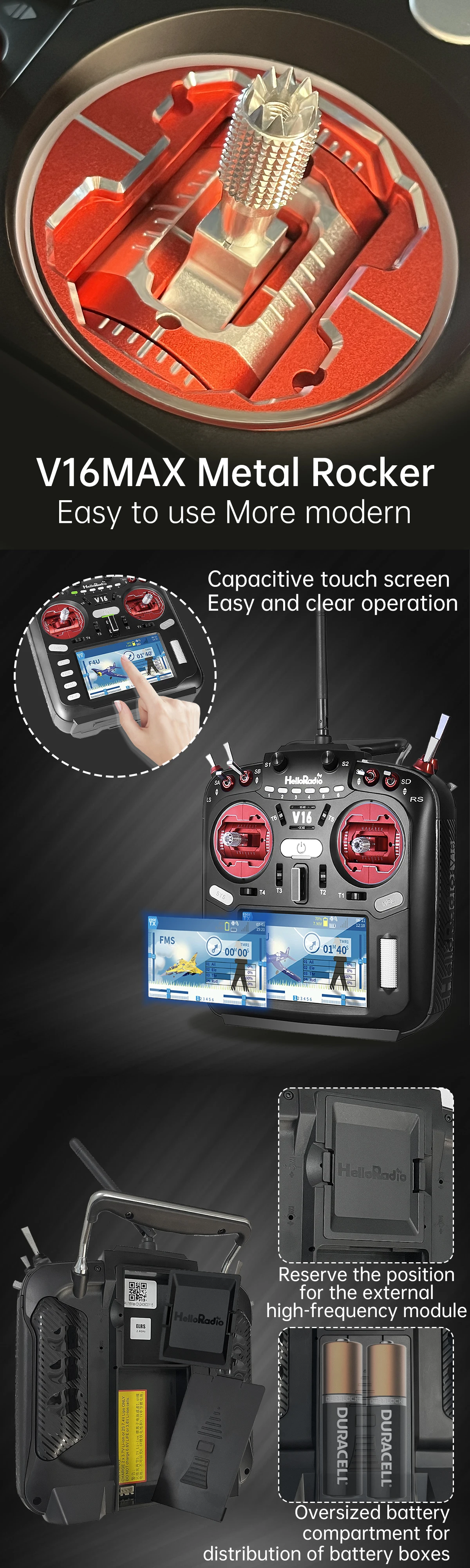

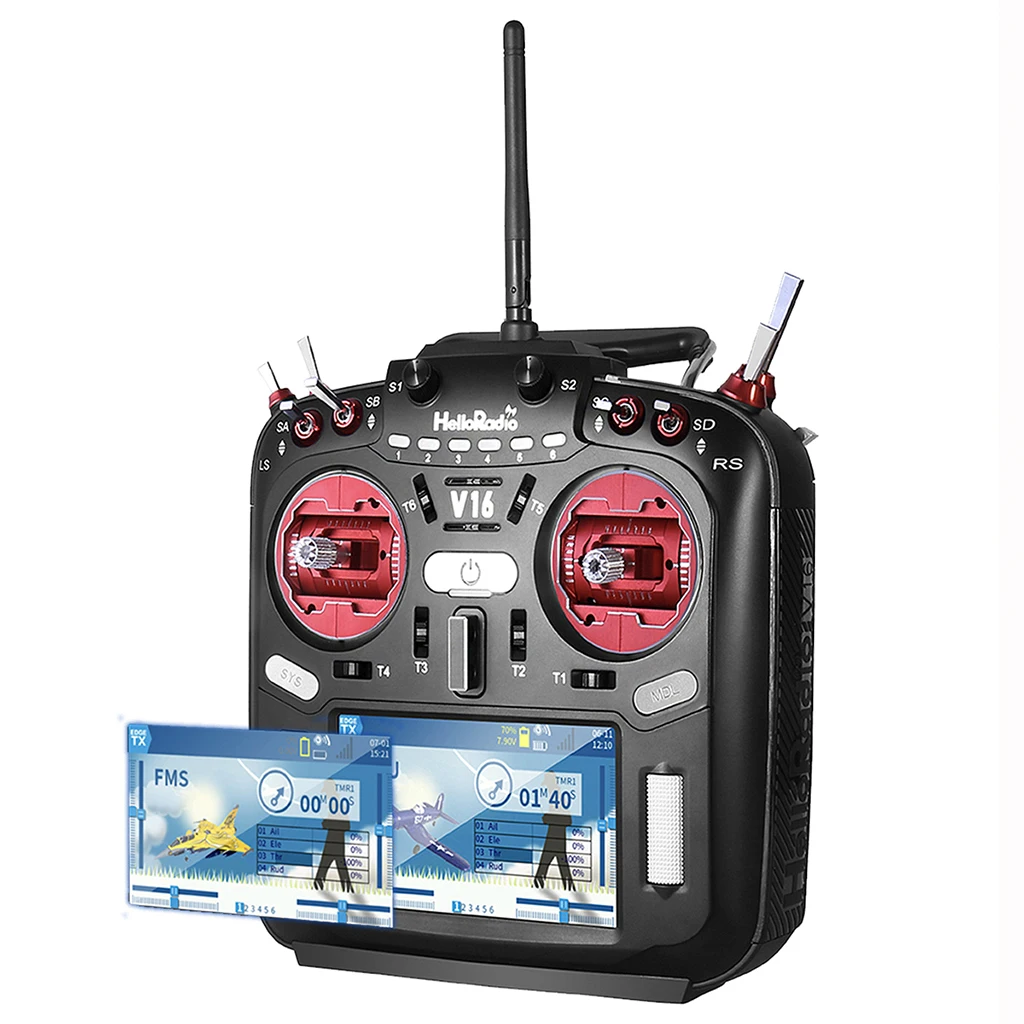

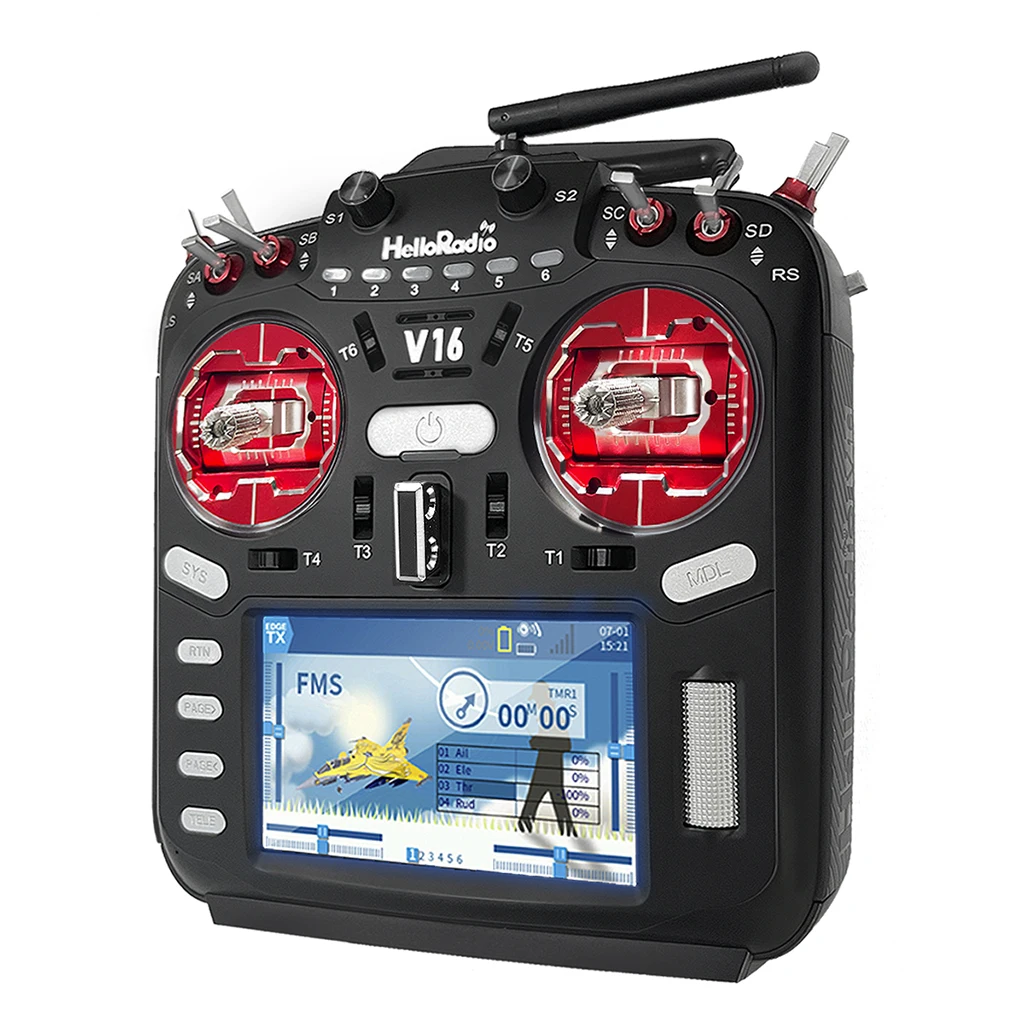

There are red, black ,Purple,Gold color transmitter stick rocker for V16 MAX,pls notice that, thank you!

Description

V 16 Main Features:

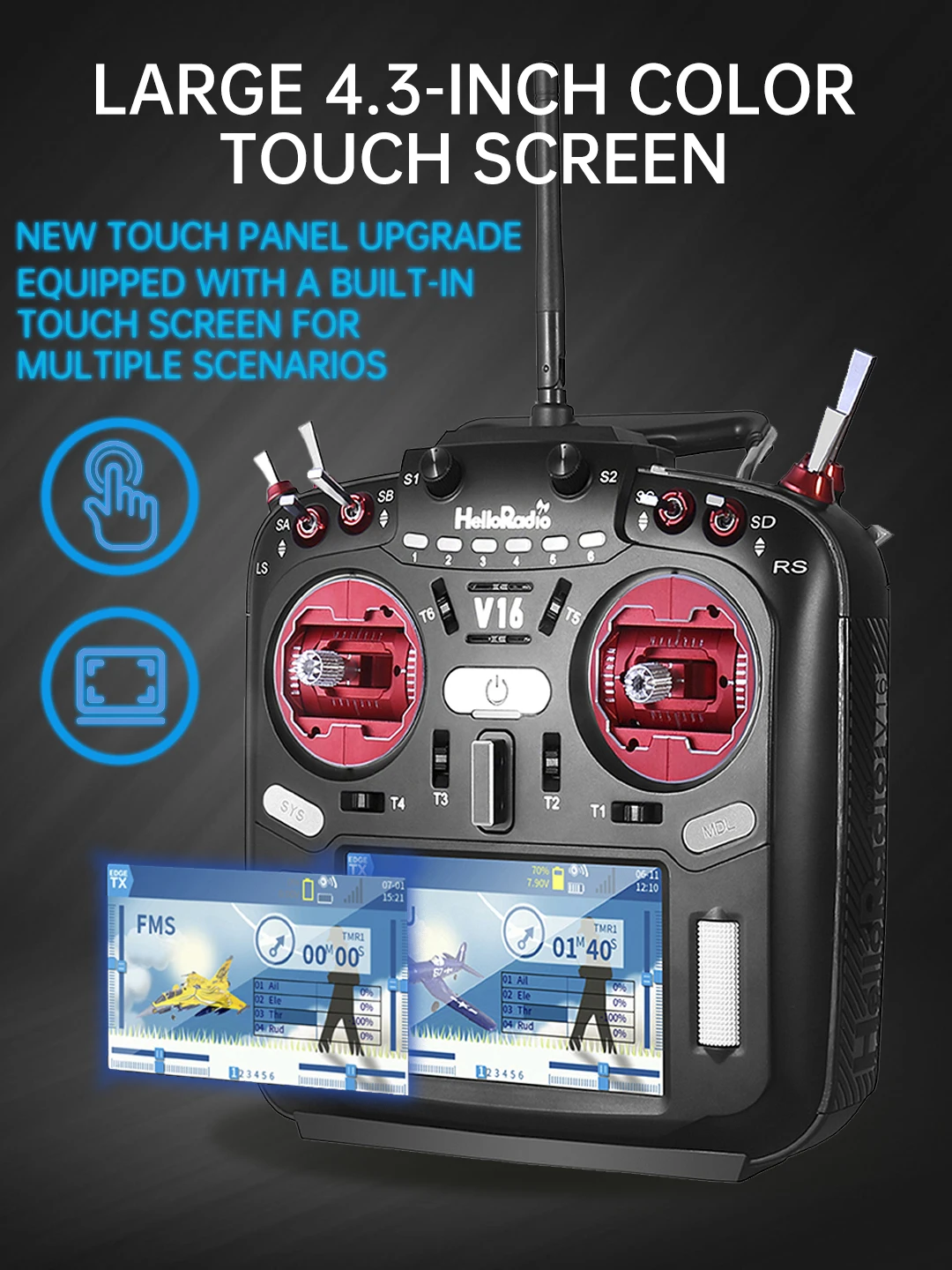

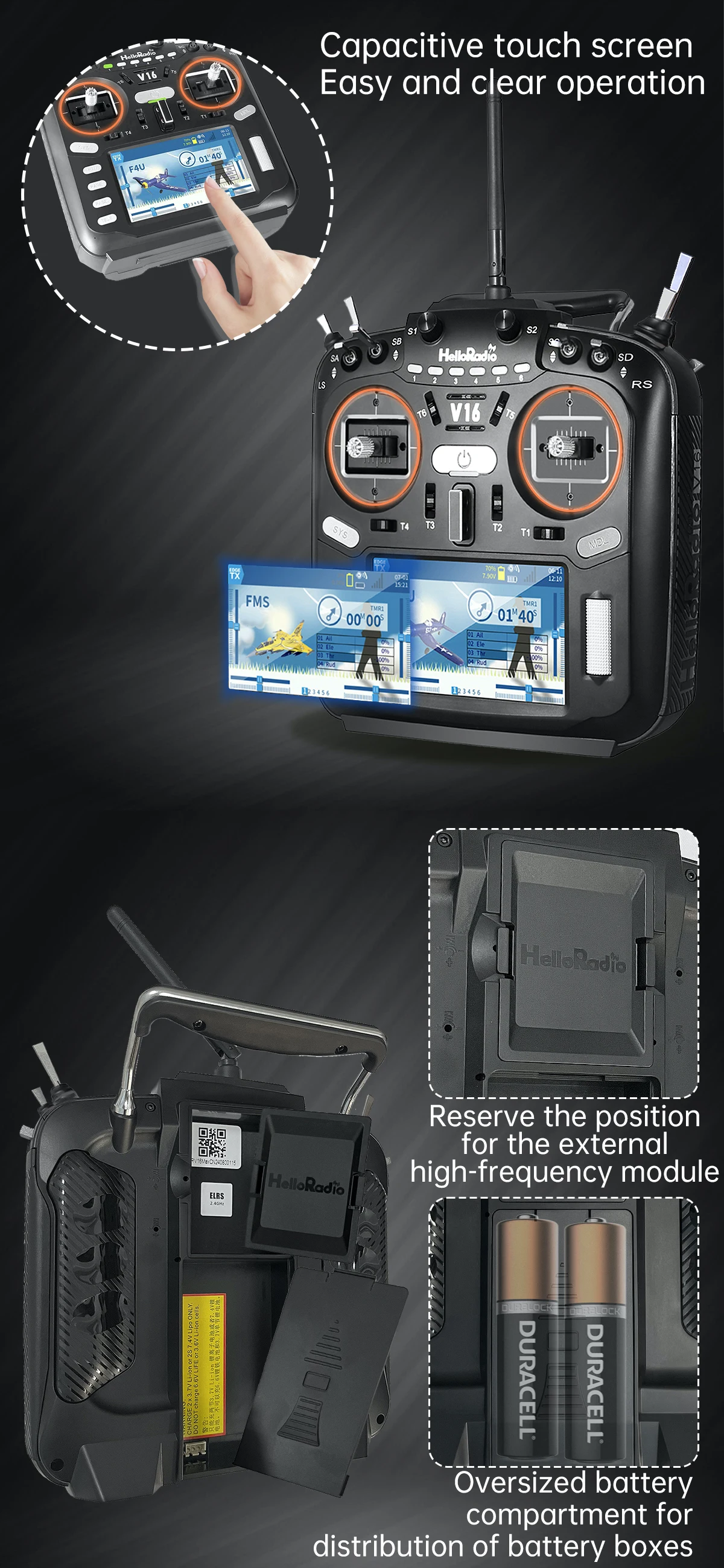

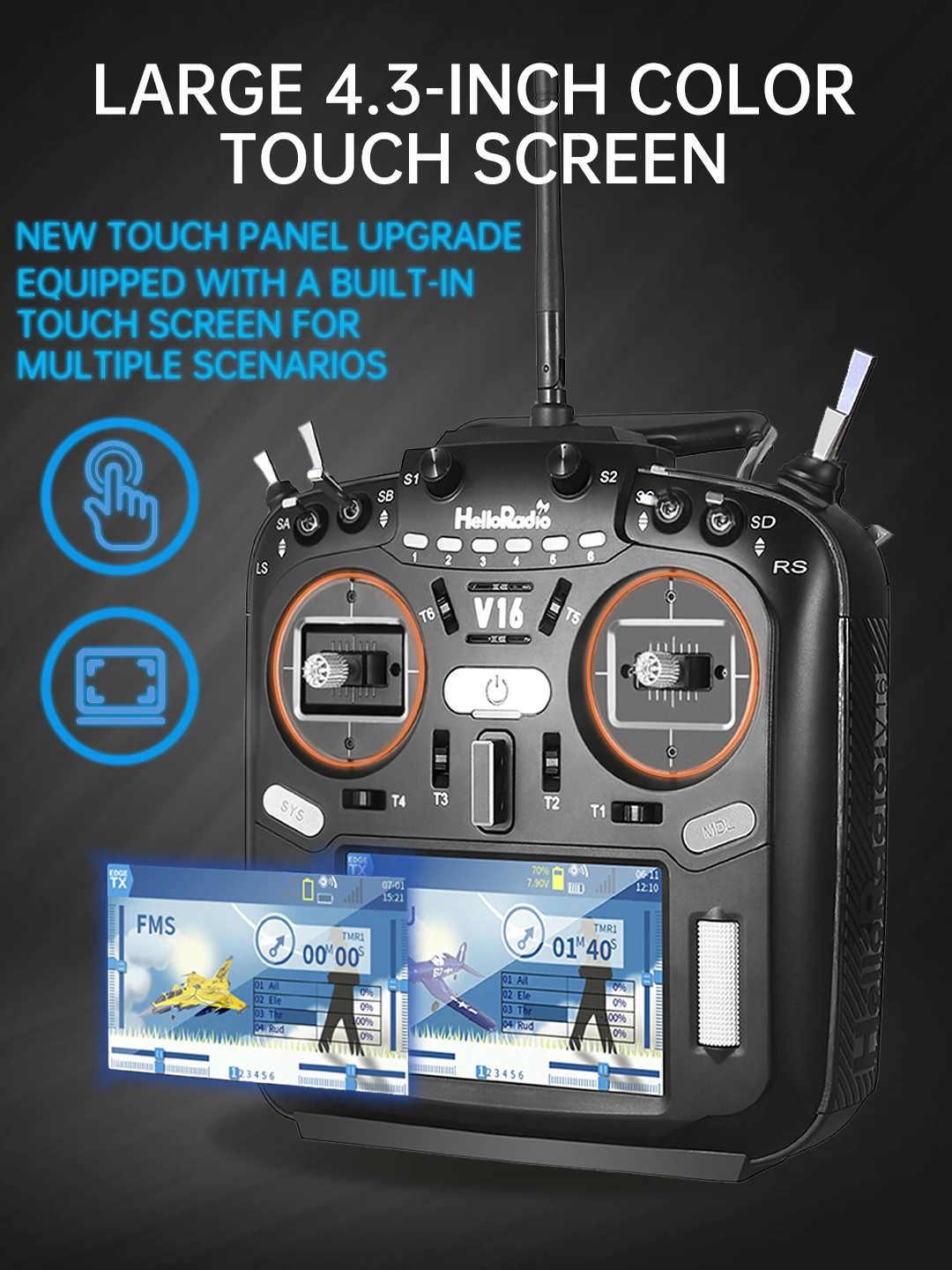

1. Comfortable touch panel experience

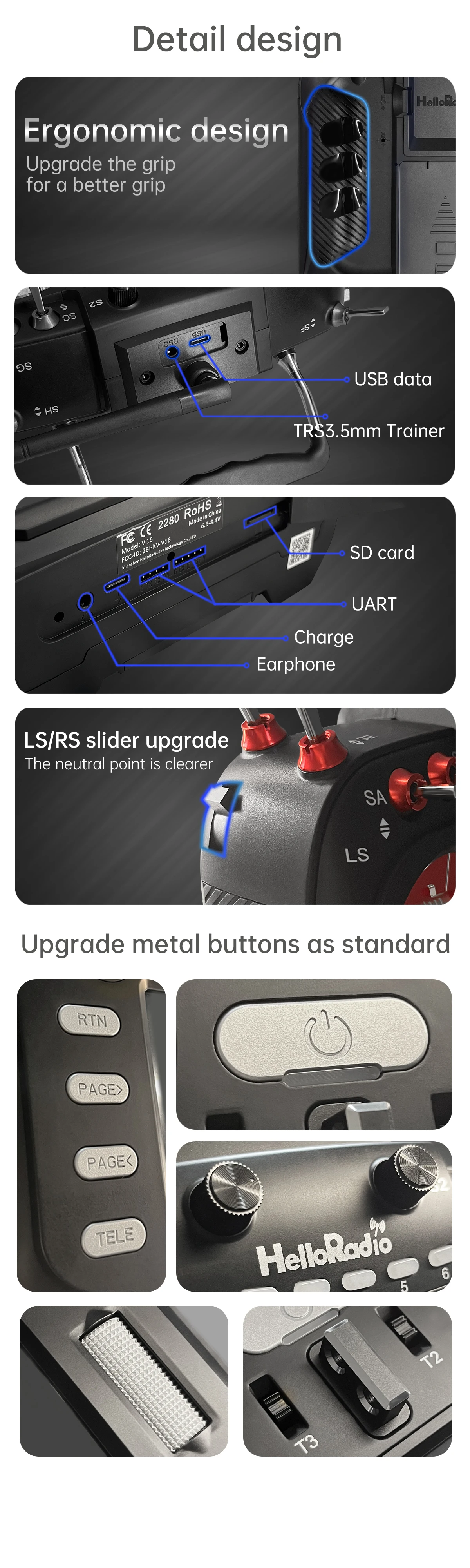

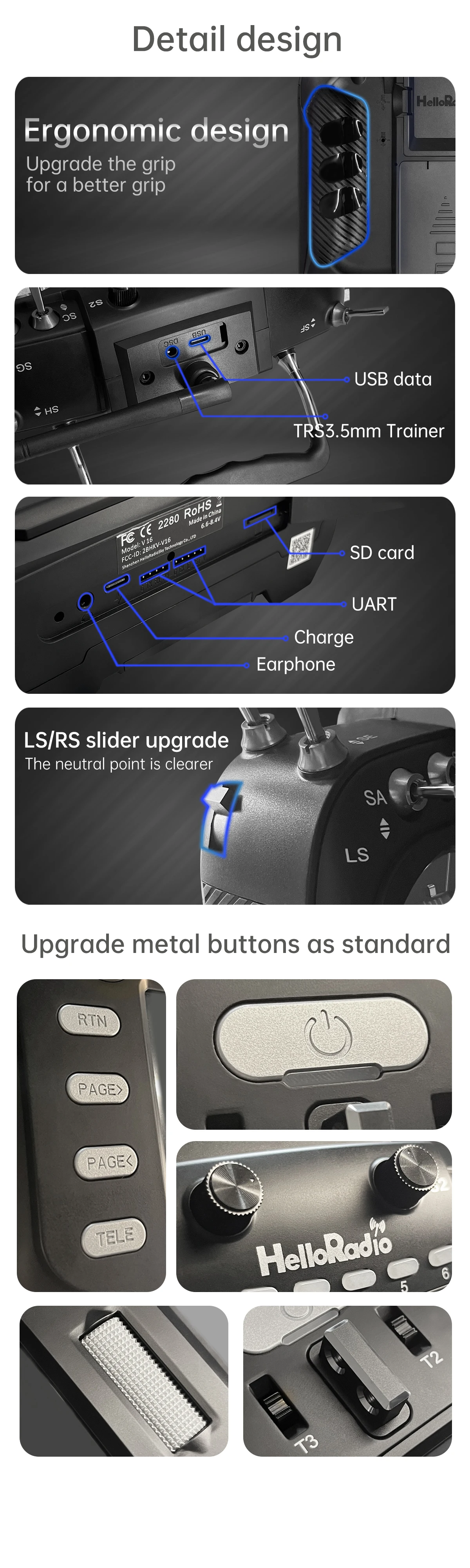

2. Place the SWD debugging port of the MCU at the bottom of radio, easier for upgrading and debugging

3. Place the headphone jack at the bottom of the radio for easier connection to the headset

4. Optimized LCD circuit design, releasing memory and CPU resources

5. Supports the currently popular ESP32-C3-MINI and XIAO ESP32-C3 Bluetooth modules, providing more possibilities for future applications

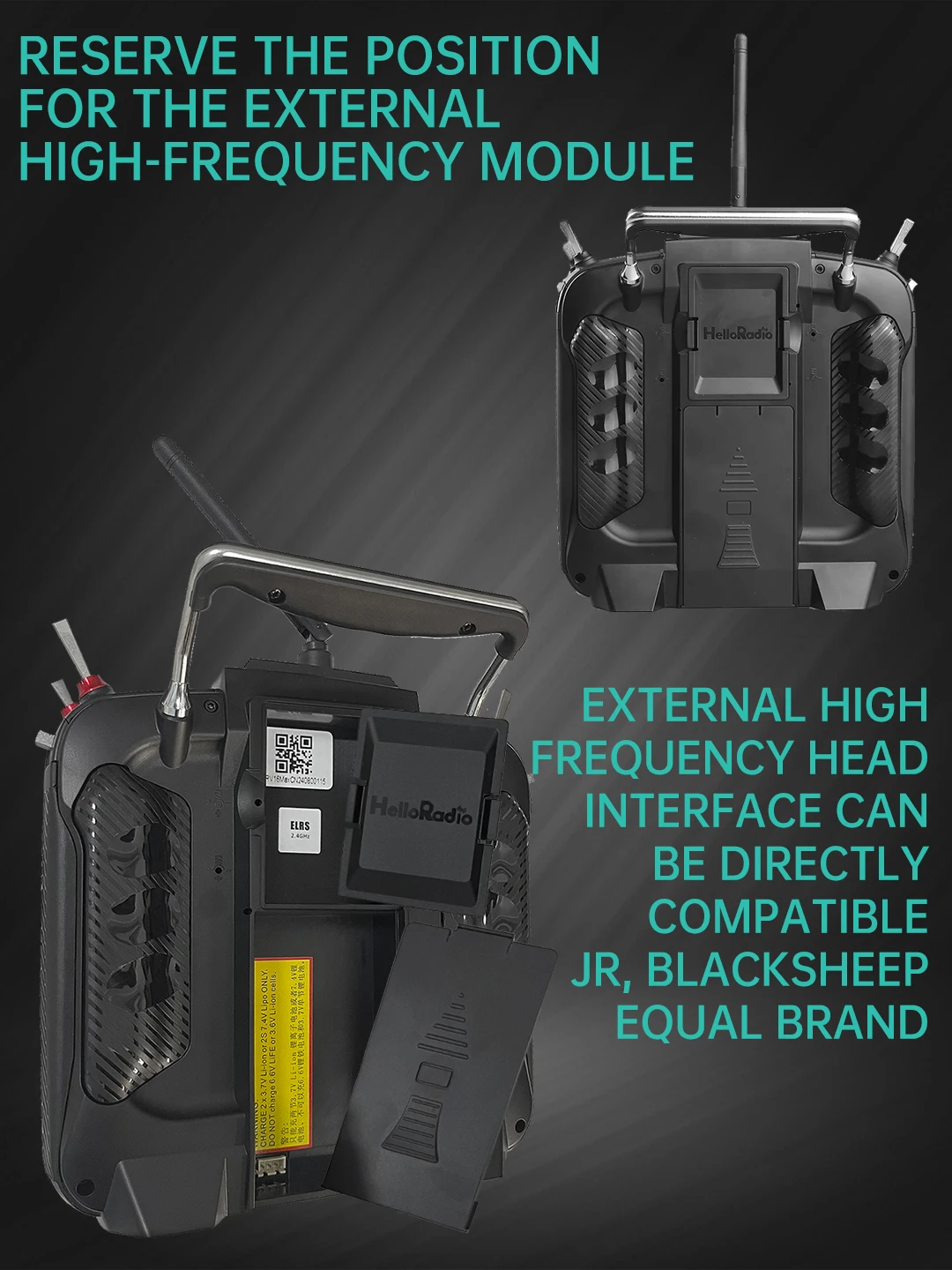

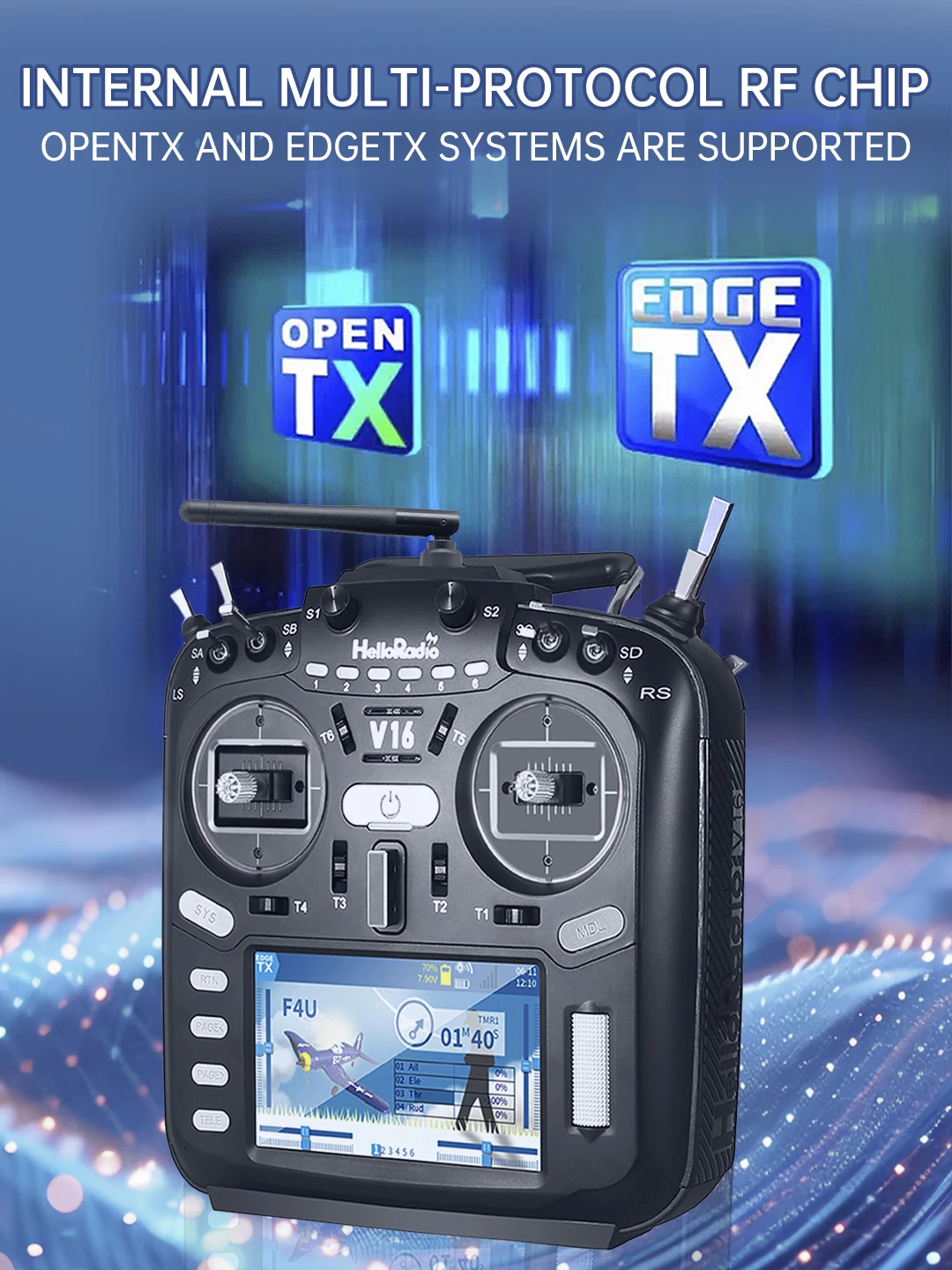

6. Hardware dual serial port is used to communicate with the external RF module. And a reverse control circuit is designed to support more types of external RF modules

7. 6-mode switch can be defined at will. Users can program to customize their functions and corresponding LED colors. Multi-Color LEDs are used, and you can be assured to create your own favorite

8. The charging circuit will automatically stop charging when overvoltage is detected in the battery cells, protecting the battery

9. Protection circuit is used to avoid damage from any reverse-polarity connection of power supply

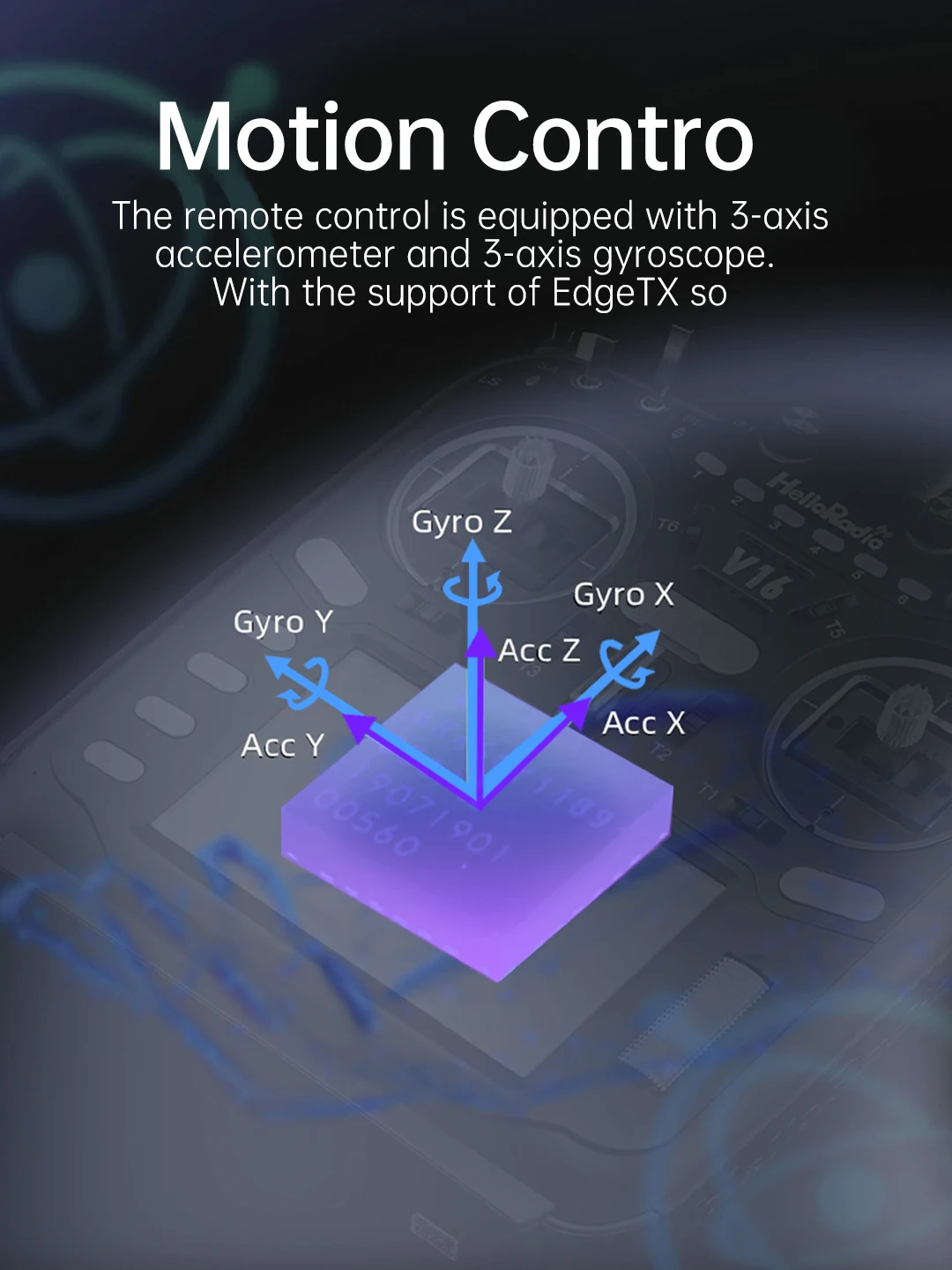

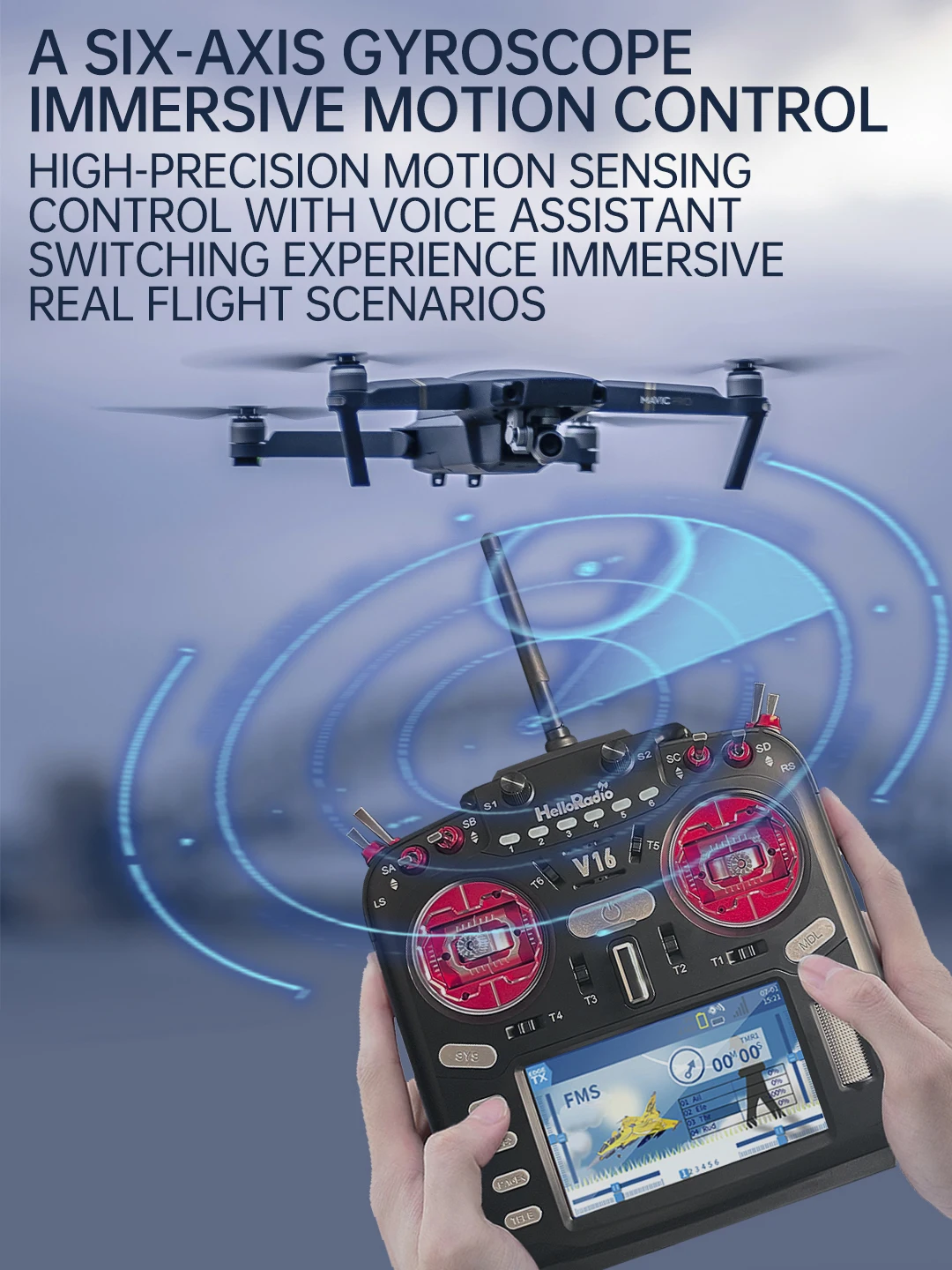

10. Equipped with 6-axis gyroscopes to provide possibilities for future applications

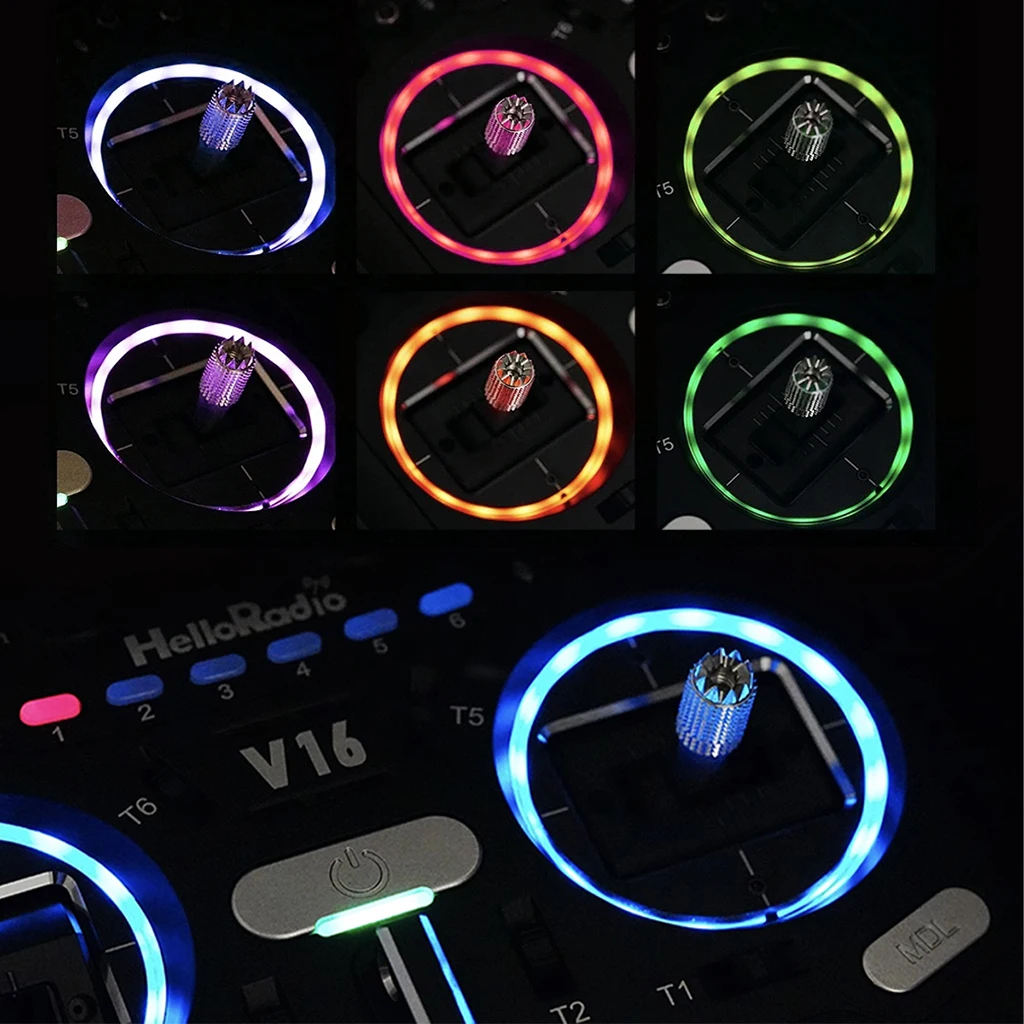

11. Programmable colorful gimbal LED, allows users to achieve the dazzling colors they want through simple programming, adding color to their flight

12. Intelligent voice interaction control circuit to achieve true human-machine interaction. Users can customize their voice and create their own style of voice control function

13. Equipped with 3 voltage and current measurement units with an accuracy of +-0.1%, which can independently measure the voltage of a single battery cell of the radio, monitor the charging voltage and current in real time to prevent overcharging of the single battery cell, and no longer require manual correction. They can measure and display the working voltage and current of the overall system, as well as internal/external RF module, in real time. It will give alarm or shut down the system, if abnormal voltage or current is detected. The radio and modules will always be in good protection.
