Specification:
Brand Name: LDARC
Model: ET75 HD

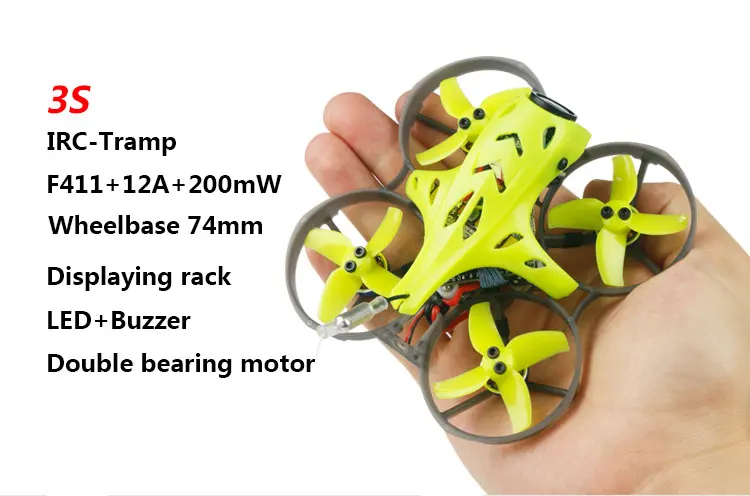

Item Name: 74mm F4 OSD FPV Racing Drone w/ Caddx Turtle V2 Camera

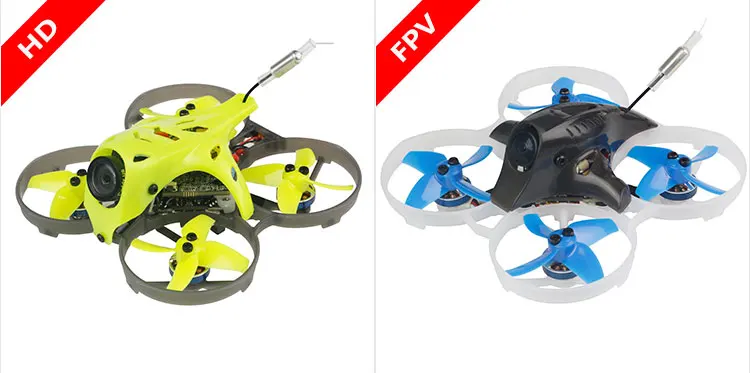

Version: PNP ( Without Receiver) ; BNF ( With AC2000 Receiver)
Drone Wheelbase:74mm
Weight: 52.5g ( without battery)

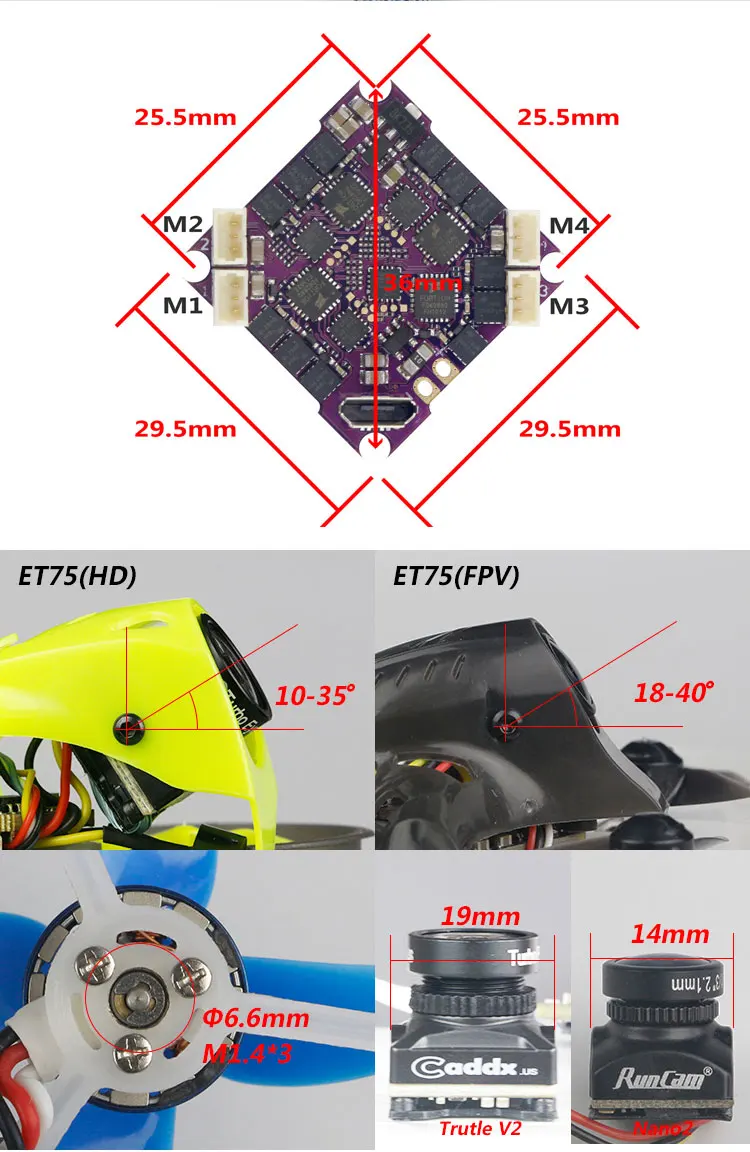

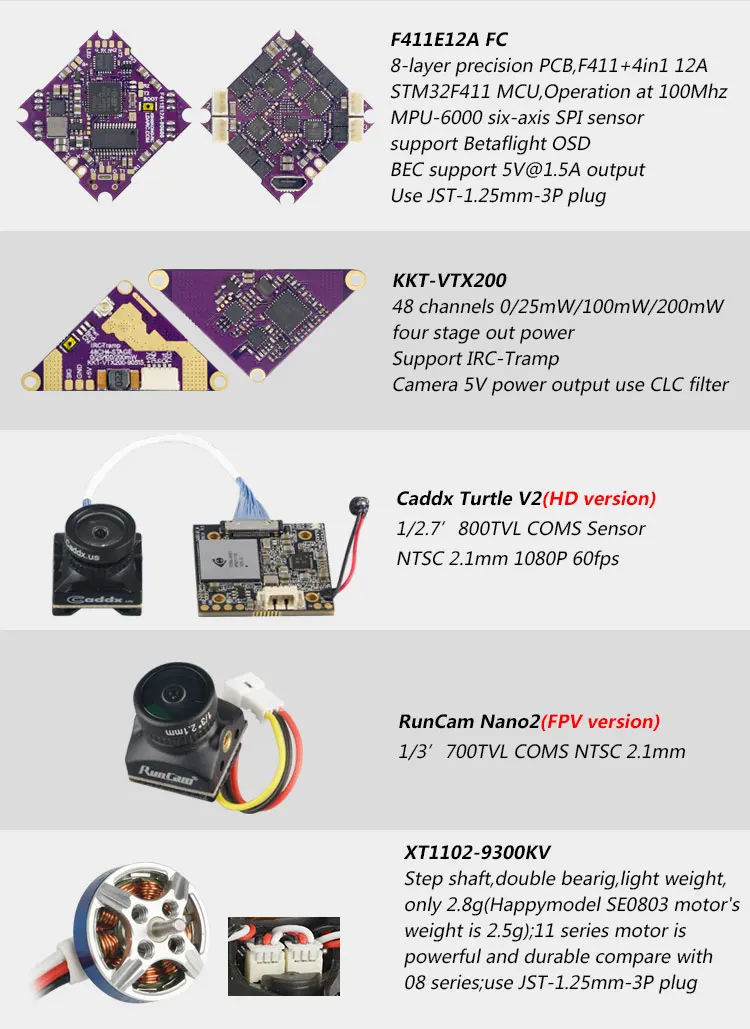

F4 OSD Flight Controller：
Brand Name: LDARC
Firmware: MATEKF411
MCU: STM32F4AA
MPU: MPU6000
BEC: 5V 1.5A
Onboard Current Sensor
Onboard ESC
Support SBUS DSM2/X iBUS Receiver
Onboard 12A BLheli_S ( G_H_30) 4in1 ESC：
Con. Current: 12A
Max. Current: 20A
Support 2-4S Lipo
Firmware: BLheli_S

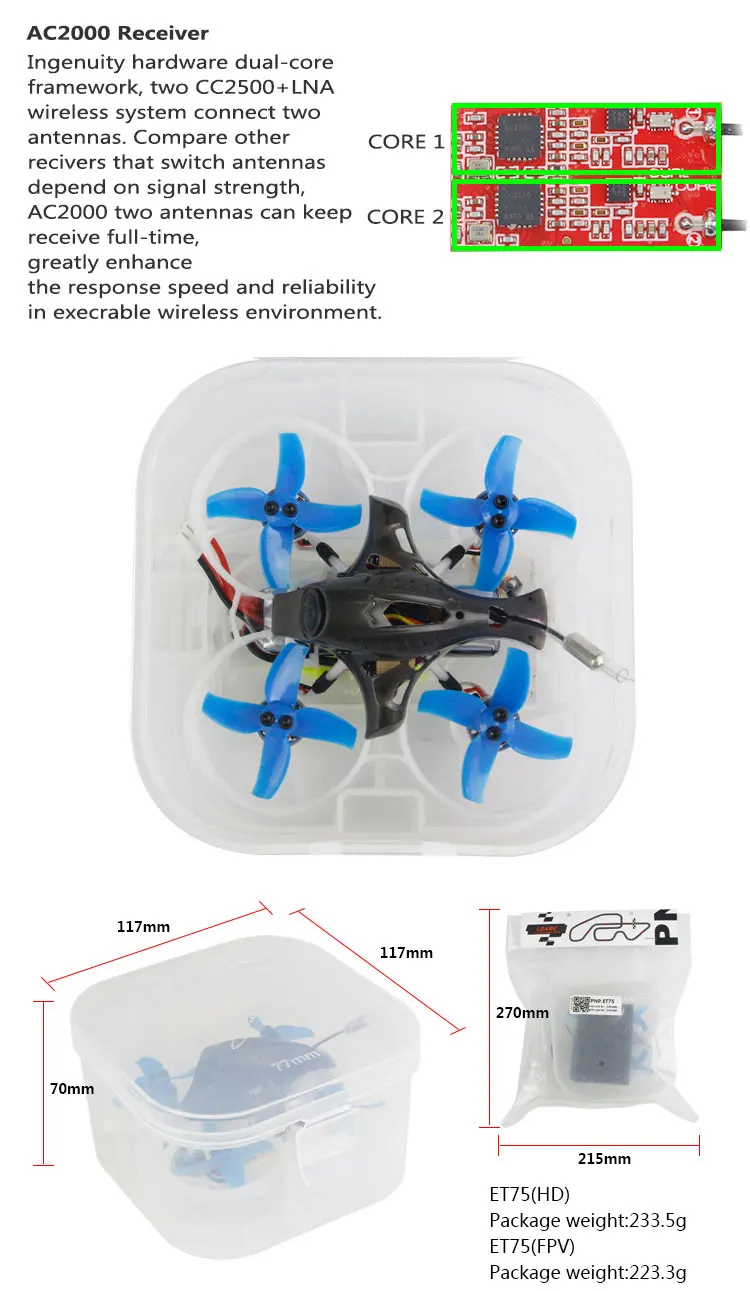

Onboard AC2000 Receiver ( Only BNF Version has)：
Item Name: AC2000 Receiver
Rated voltage: 4.0V~6.0V
Support S-FHSS(8 CHs)/D16 non-EU(14 CHs)/D16 EU-LBT(14 CHs) three modes, output S.BUS signal
Perfect fit high reliability medium and small size drone
The channel 16 of S.BUS value is real-time RSSI, BETAFLIGHT OSD can display this RSSI value in screen.
48CH 0/25/100/200mW VTX：
Brand Name: LDARC
Channel: 40CH
Power: 0/25/100/200mW Switchable
Input Votlage: 2-4S
Support IRC Tramp
51mm 3-Blade Propeller：
Brand Name: LDARC
Item Name: 51mm 3-Blade Propeller
Color: Black
Quantity: 10 CW & 10 CCW
XT1102 9300KV Motor：
Brand Name: LDARC
Model: XT1102
Item Name: 1103 9300KV
Shaft Diameter: 1.5mm
Input Voltage: 2-3S
Motor Mounting Hole Size: 6.6 ( M1.4)
Weight: 2.8g

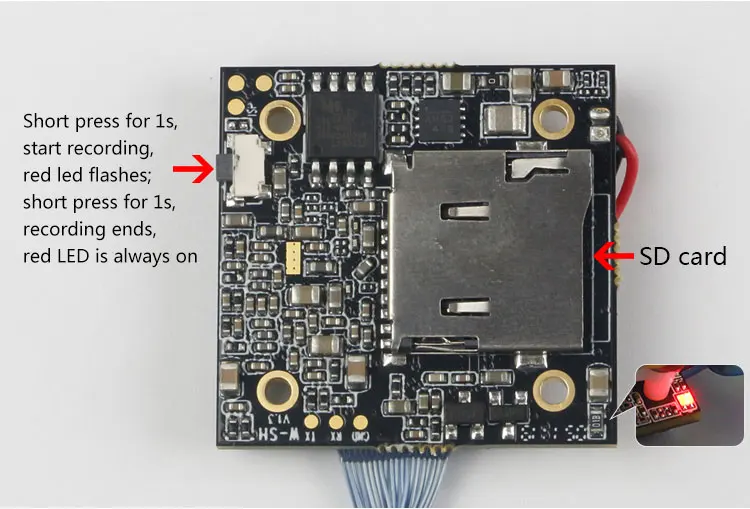

Caddx Turtle V2 1080P Camera ：
Image sensor: 1/2.7" CMOS sensor
Horizontal: 800TVL
TV system: NTSC/PAL,changeable
Video Resolution: 1080P@60fps / 1080P@30fps / 720@60fps
Power Input: DC 4.5-20V
FPV FOV: 155°
Recording FOV: 170°
Mini Illumination: 0.01lux
Image Resolution: 2 Megapixels
Lens: 1.8mm Turbo Eye Lens
Working Current: 380mA@5V/160mA@12V (low consumption)
OSD Menu: Yes (Support Voltage Display)
Video Files: MP4
Audio: Support
Electronic Shutter : PAL : 1/50-100,000 NTSC : 1/60-100,100
S/N Ratio: >60dB (AGC OFF)
Video Output: CVBS
Max Micro SD Card Supported: 8-64GB(need Class 10 or above, recommend Class 10/UHS-I/UHS-II)

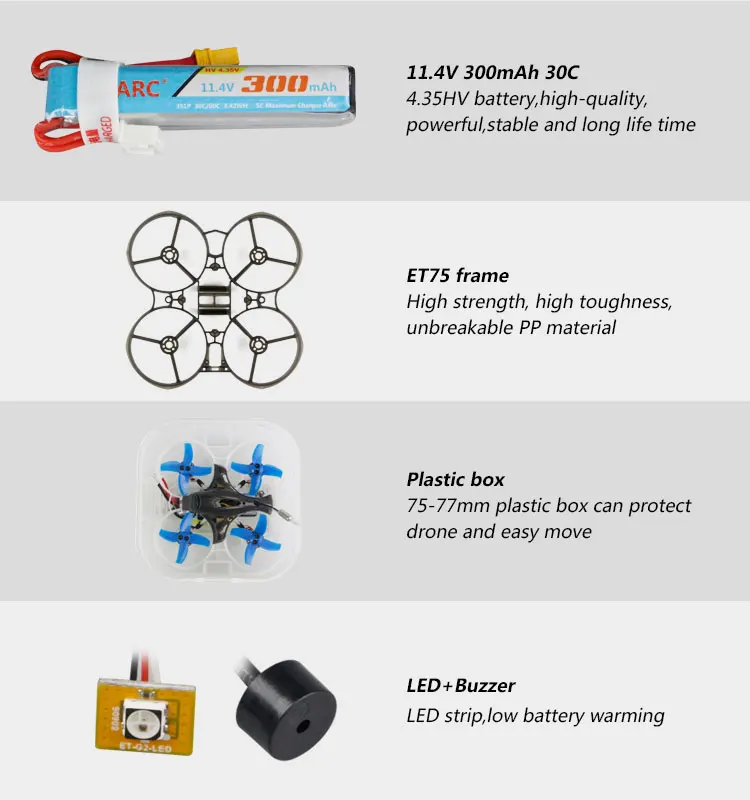

Lipo Battery ( All Version Have)：3S 11.4V 300mAh 30C Lipo Battery

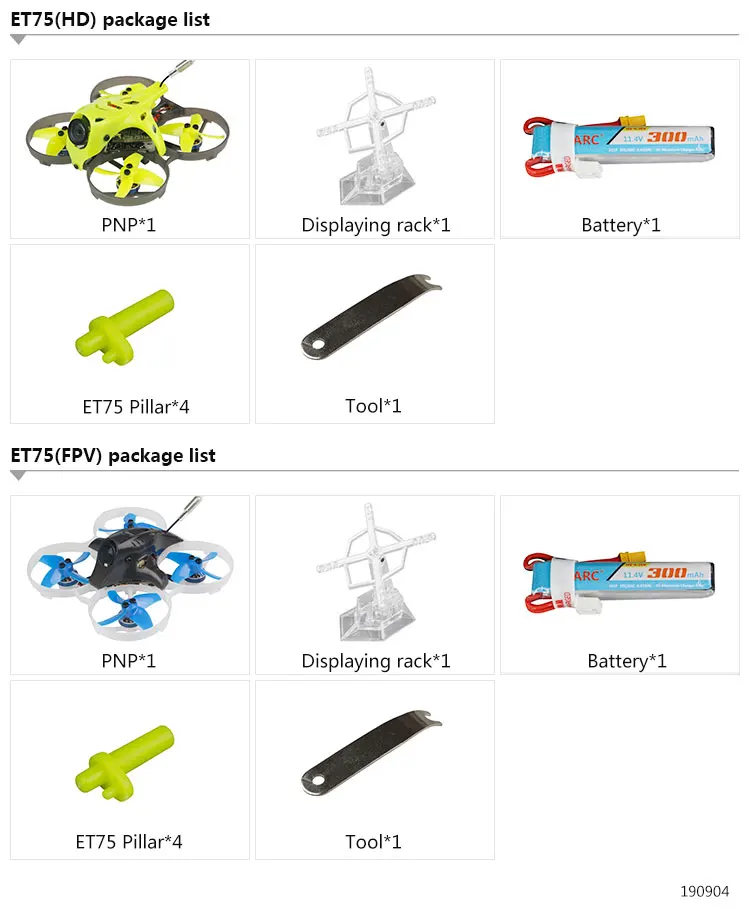

Pacakge Included:
1x LDARC ET75 HD FPV Racing Drone

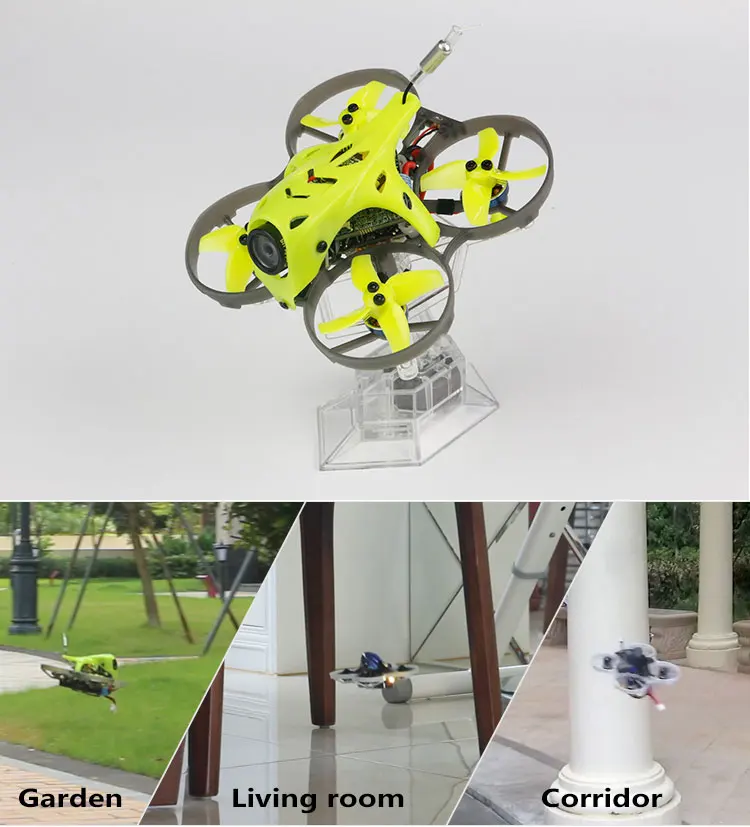

1x Displaying Rack
1x Battery
4x ET75 Pillar
1x Tool
