product manual:
This product is specifically developed for the machine through a high-performance power transfer, applicable to all types of model aircraft brushless motor market, easy to use, no special setting that ease of use. Thick copper foil using low impedance PCB (printed circuit board), has a strong over-current capability. All models support the market with a remote control, the default is to automatically adapt the remote control, no player can set a good use.
To manually set the throttle travel :( connected motor, receiver, please do not adjust the electrical power, the putter hit the throttle at maximum position, and then turn on the remote control power supplies, motor issue a piece of music tips sound, then immediately issued a short "beep" sound, and then hit the throttle minimum position, then the motor gives two short a long "beep", stroke setting is completed).
In order to achieve the best light, let the machine get through longer blank time, we have put various parameters ESC cure can not be modified.
Product parameters:
1, the output capacity: Continuous current 12A, short-time current 15A (less than 10 seconds)
2, Power input: Section Section 5-9 2-3 lithium battery pack or NiMH / NiCd battery packs
3, BEC Output: 5V / 2A (linear regulator mode -Linear mode)
4, the throttle signal frequency range (Refresh rate): 50Hz-432Hz
5, Maximum speed: 2-pole motor 210000 rev / min, 6-pole motor 70,000 rev / min, 12 pole motor 35,000 rev / min
6, Size: 26mm (length) × 16mm (width) × 8mm (H);
7, Weight: 6g (including heat sink)
8 Throttle range: Automatic
9, low-voltage protection threshold: 2.7V / Section
10, the low voltage protection mode: a flexible power down
11, the brake setting: no brakes
12, start setting: Normal
13, PWM frequency: 8K
Product Specifications:

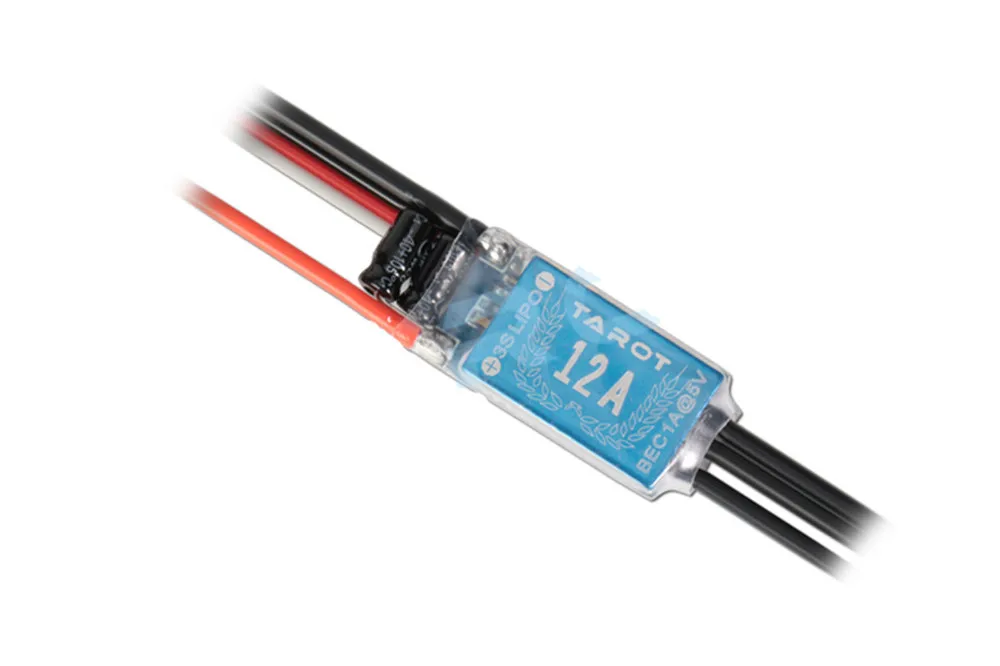

Tarot 12A mini power transfer (including BEC) × 1
