VONETS Industrial Wireless Router WiFi to Wired Network Port outdoor high-power wifi signal repeater VAP11G-500S
Features：

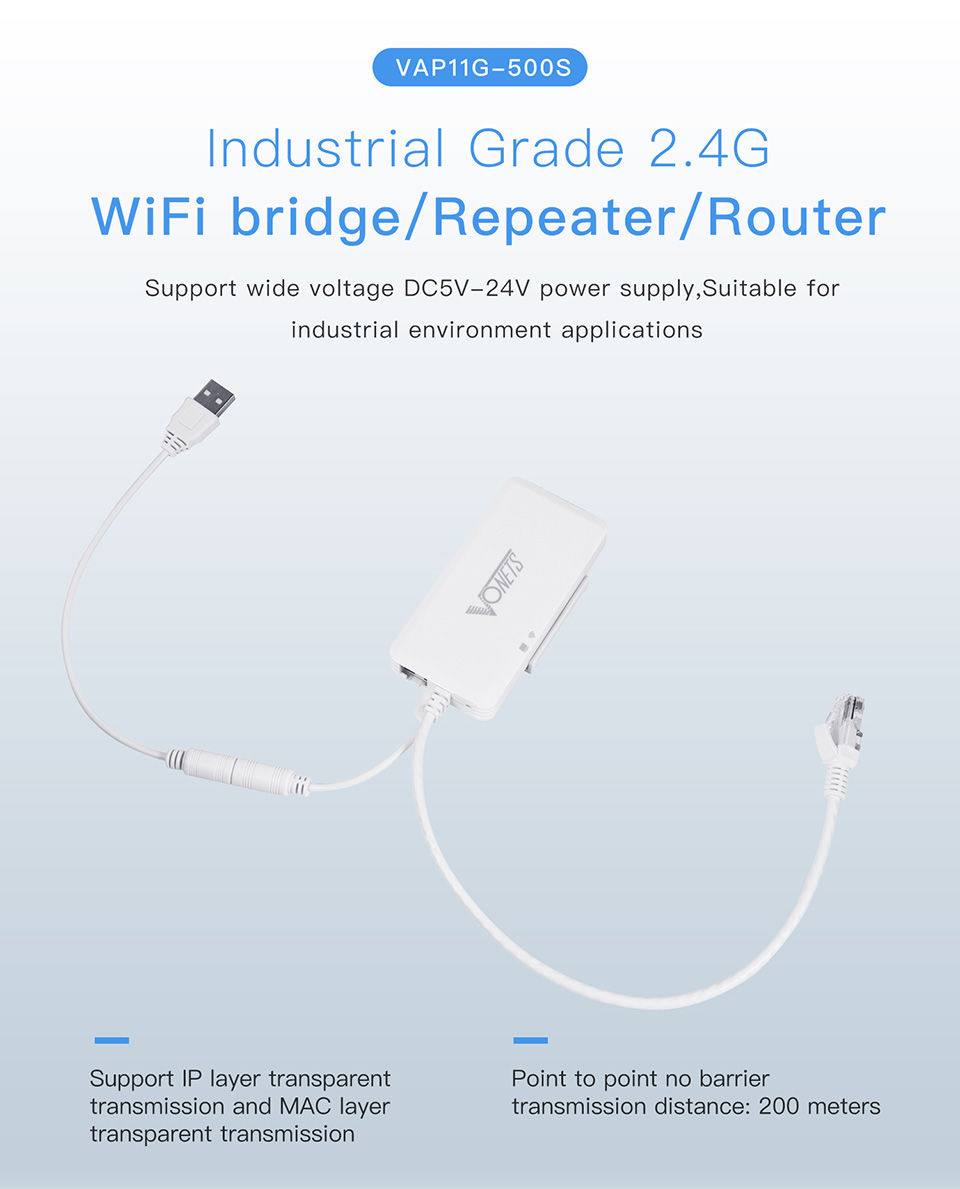

Professional-grade wireless Bridge：VAP11G-500S is a Industrial Grade 2-4 G Wifi Bridge/Repeater/Router.
Supports simultaneous connection of more than 20 WiFi terminal devices. Support the import and export function of configuration parameters, which is convenient for batch configuration of engineering projects.

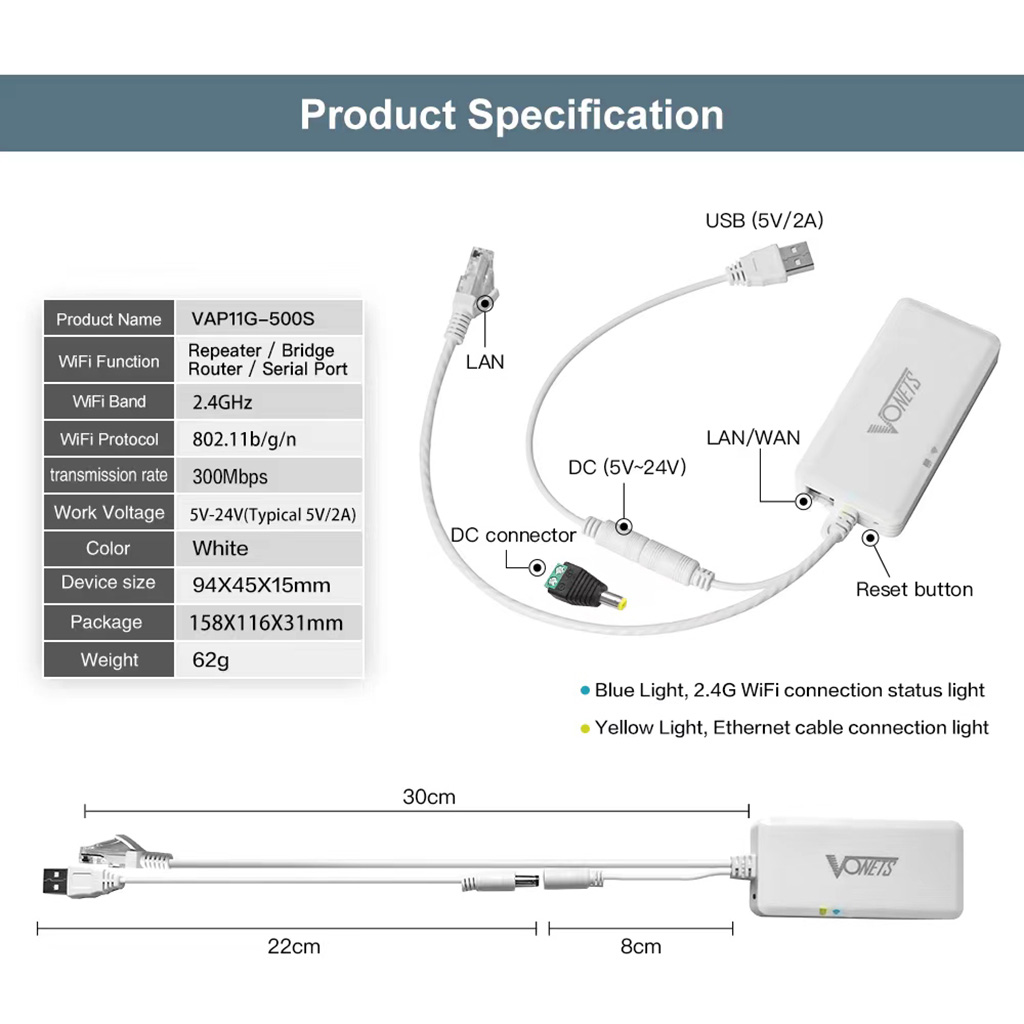

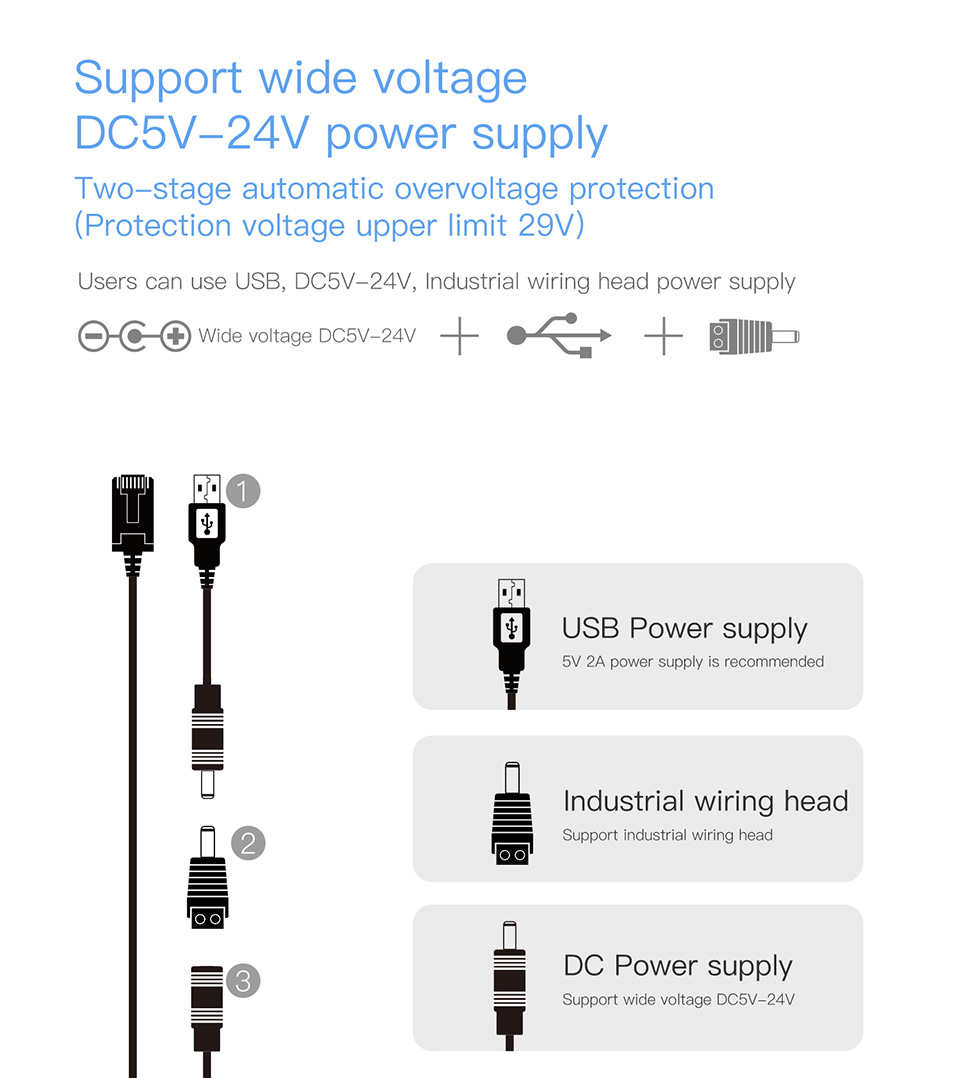

Point-to-point barrier-free maximum transmission distance: 300 meters. Support 802.11b/g/n Wifi transmission protocol. Support wide voltage DC5V-24V power supply, two-level automatic overvoltage protection, overvoltage protection point 29V.

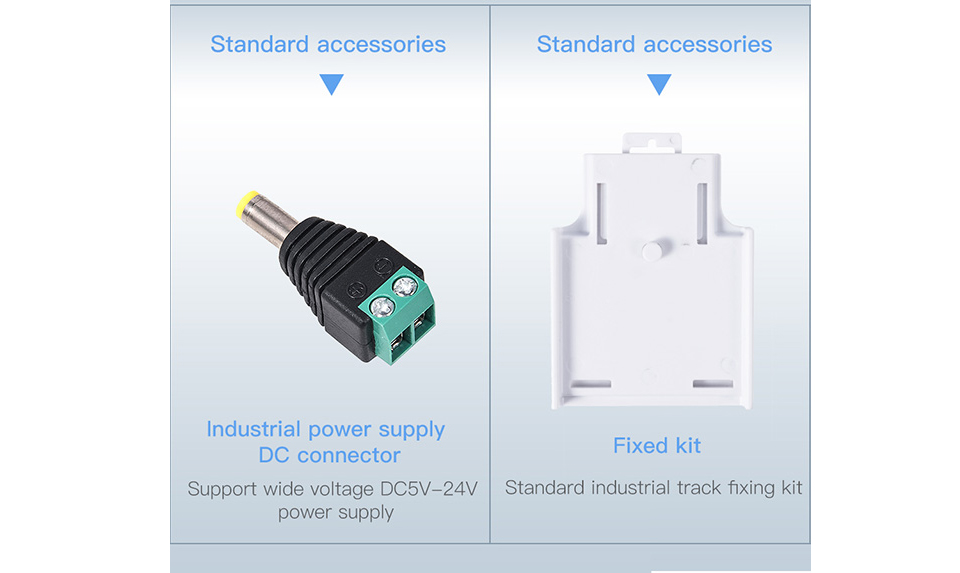

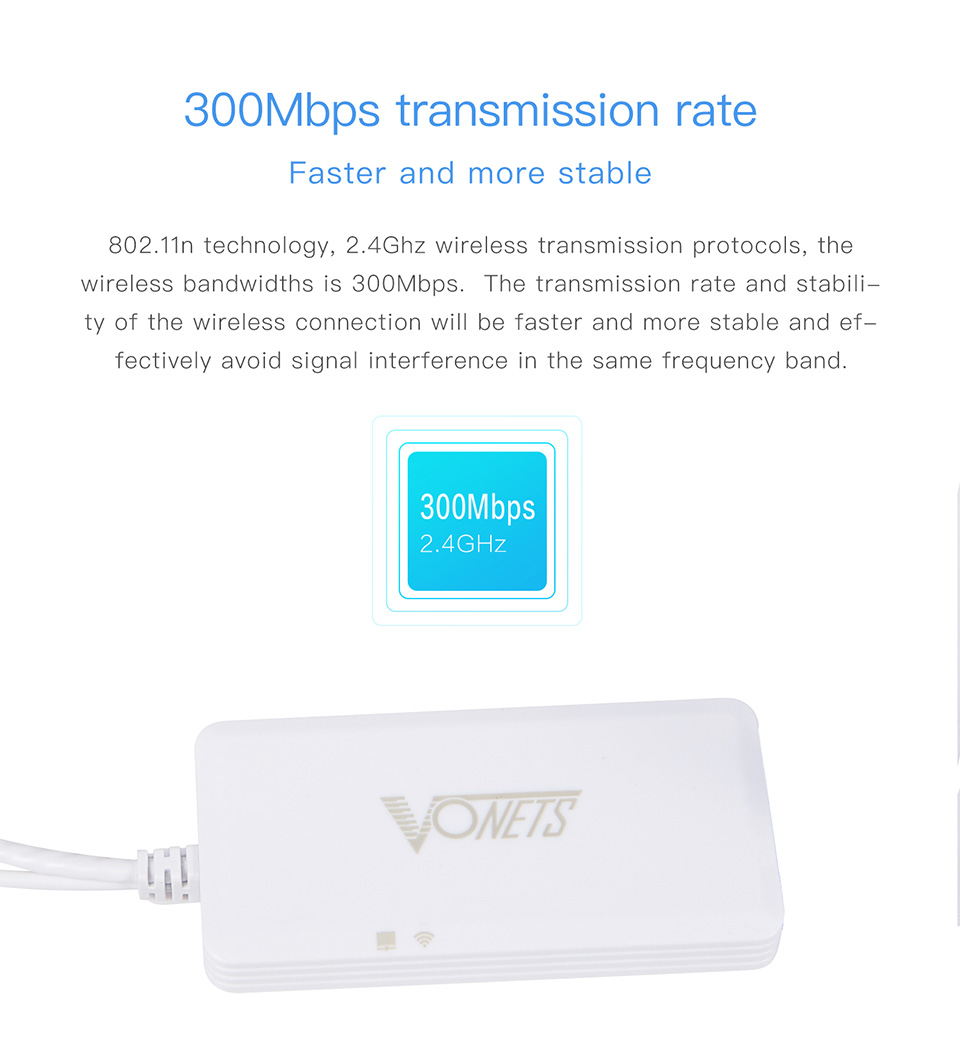

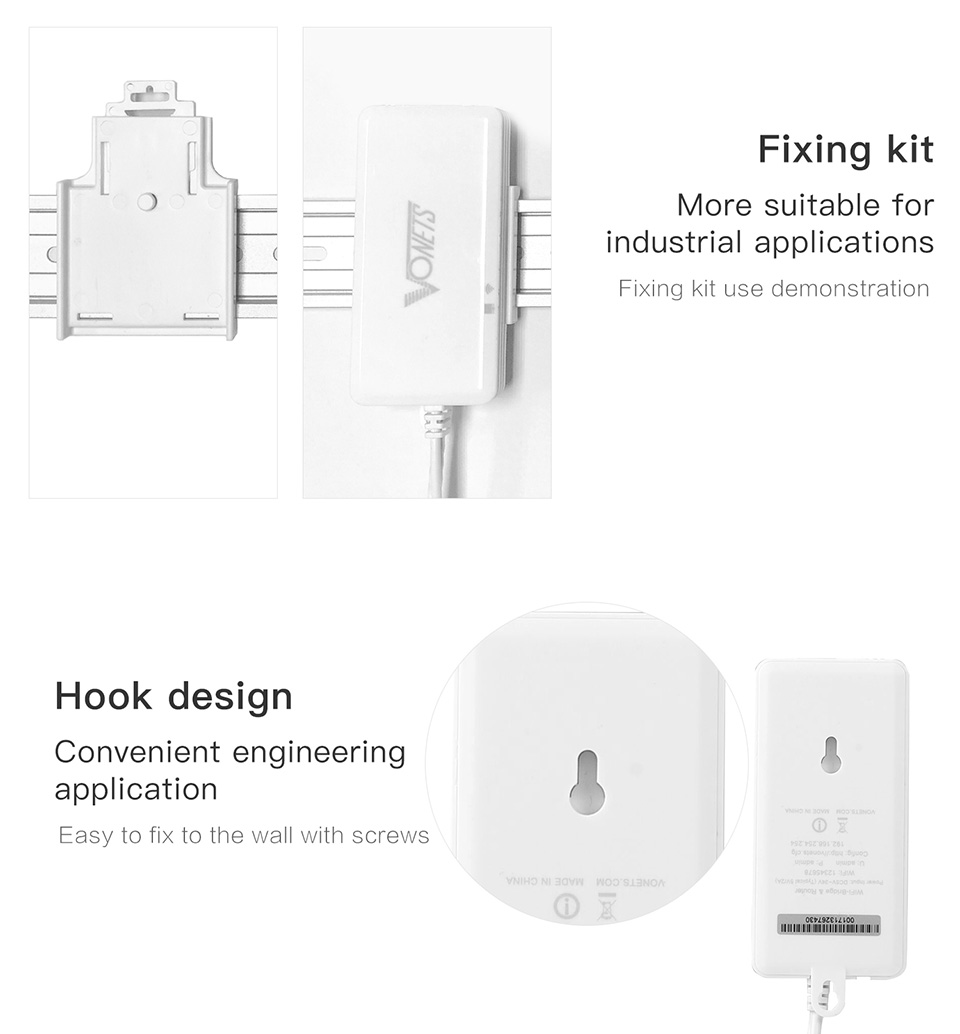

Built-in 2 smart omnidirectional 2-4G antennas, wireless transmission rate: 300Mbps. Two 10/100Mbps adaptive Ethernet ports. Standard industrial rail fixing kit and industrial power DC connector. Transmit power: 20dBm/23dBm optional.
Support IP layer transparent transmission(factory default) and MAC layer transparent transmission two bridge modes, to meet various bridge applications. Support the import and export function of configuration parameters, which is convenient for batch configuration of engineering projects.
Warm Tips:
If the application is AC managed AP, Go--Pro camera, Cis--co AP, Hik--vision surveillance system, select "MAC layer transparent"；
When using an A--pple or Hua--wei mobile phone as the source hotspot, you need to select "SSID and password authentication mode" during configuration；
If you encounter frequent disconnection or other problems during use, you may be able to solve the problem by upgrading the software.
VAP11G-500S is a professional-grade 2-4G wireless bridge carefully developed by Hou-tian Network. It has the functions of repeater and Wifi router. It adopts digital-analog temperature compensation and frequency stabilization technology (TAFC), and the WiFi signal is more stable and easy to drop. Its functional characteristics are as follows:
Industrial Grade 2-4 G Wifi Bridge/Repeater/Router.
The VDNs virtual domain name configuration technology is adopted to alleviate the troubles of user configuration.
Supports manually turning off SSID broadcast and manually turning off WiFi hardware.
Support SSA signal strength detection and reporting function to realize WiFi mobile positioning.

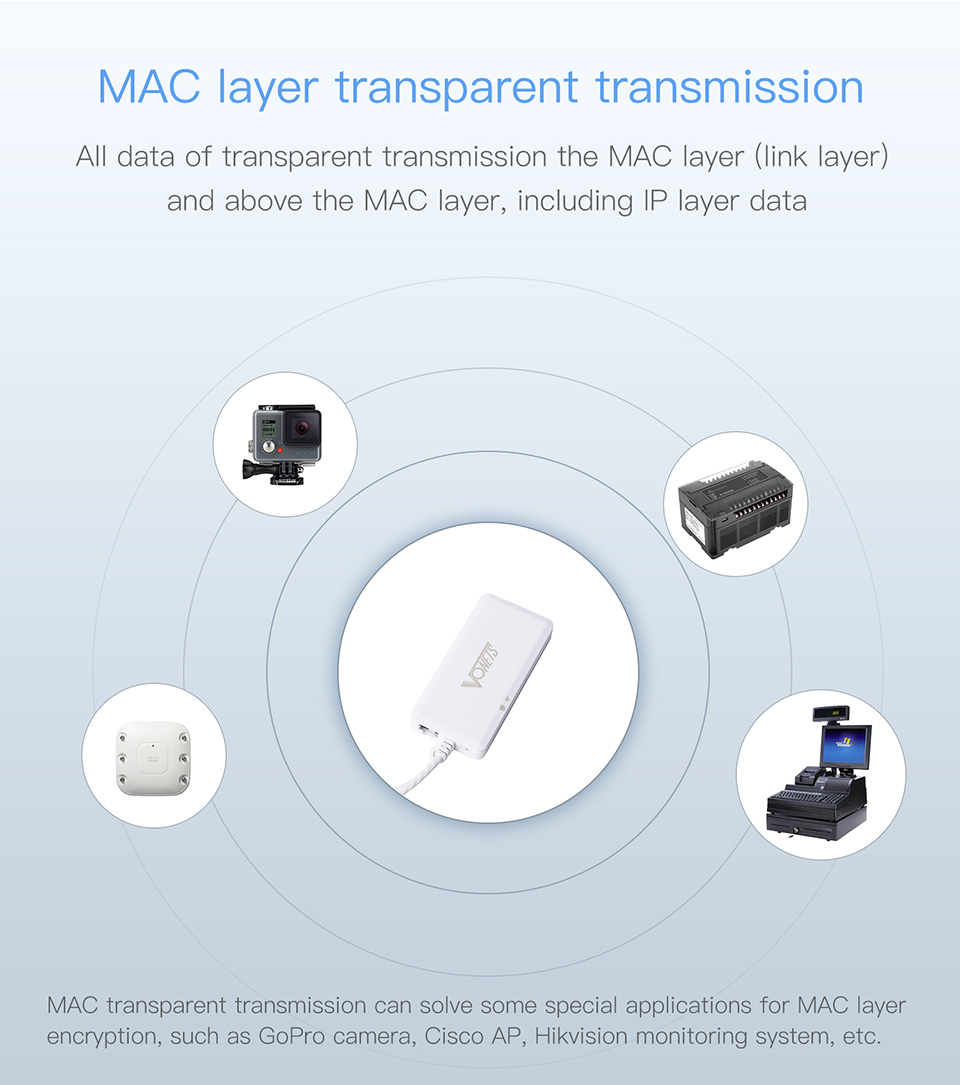

MAC layer transparent transmission, transparent transmission of MAC layer (link layer) and all data above the MAC layer, including IP layer data. MAC transparent transmission can solve some special applications for MAC layer encryption, such as cameras, APs, monitoring systems, etc.
Using digital-analog temperature compensation and frequency stabilization technology, the WiFi signal is more stable and not easy to drop.
Working environment temperature: -40℃ to 55℃.
