Description

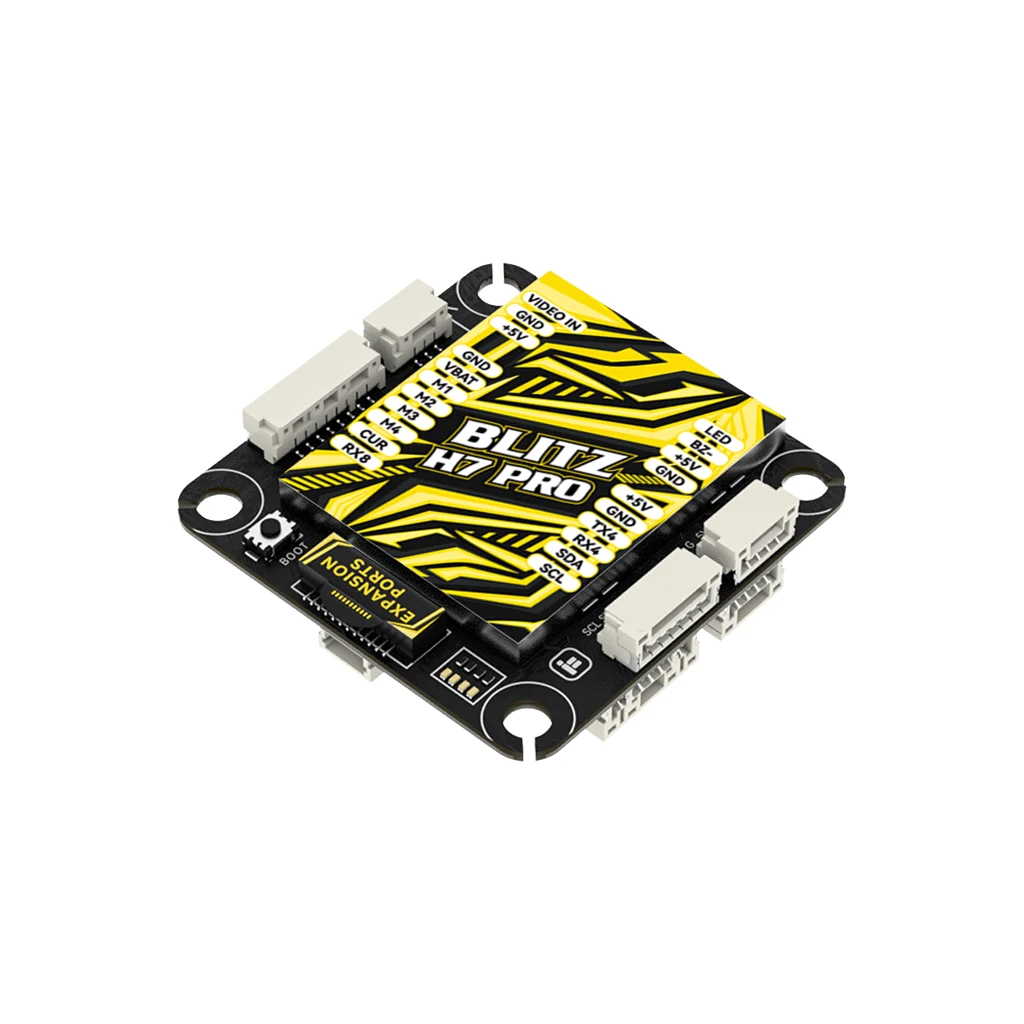

Introducing the BLITZ H7 Pro Flight Controller - a powerhouse with a dual-sided shielding design that not only protects against interference but also safeguards the controller from debris, ensuring seamless operation. The detachable shielding allows for easy TF card replacement. Upgraded with a robust STM32H743 MCU, it supports input voltages up to 12S and is compatible with ArduPilot firmware, offering customers endless possibilities. Upgrade to the BLITZ H7 Pro for unparalleled performance.
Features
Features 35x35mm mounting holes, providing a larger size for optimized flight controller PCB wiring.
GH1.25 connector design enhances terminal connection reliability and ensures easy assembly.
Utilizes an SD card for the flight controller's black box, offering increased capacity to record more flight data.
Dual-sided shielding design offers interference protection and safeguards the flight controller from foreign object malfunctions.

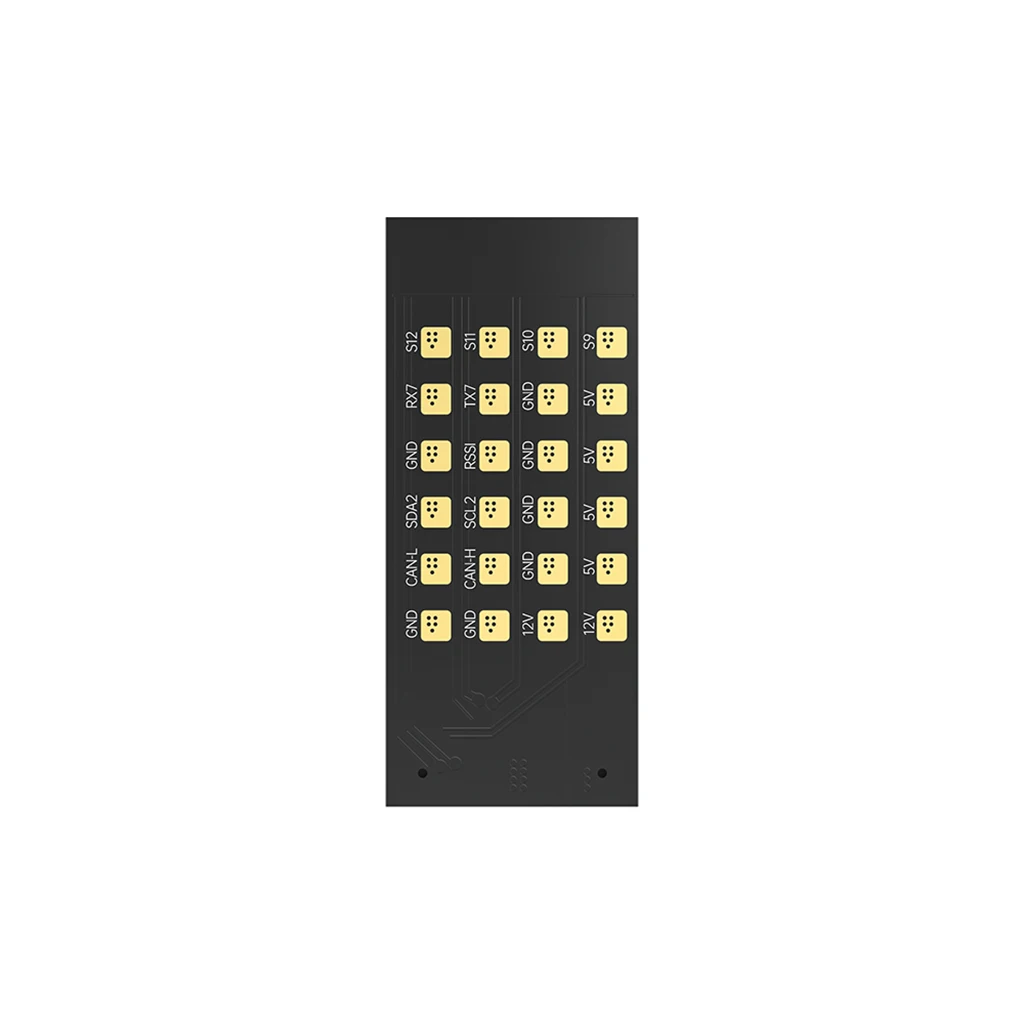

Removable expansion soldering pad board enables advanced users to easily connect additional peripherals.
Incorporates a high-voltage DC-DC buck converter with a chip voltage endurance of up to 100V, delivering stable and reliable voltage for the flight controller and video transmission.
Supports Betaflight and Ardupilot firmware.
Specifications
Product Name: BLITZ H7 Pro Flight Controller
MCU: STM32H743
Gyro: ICM42688
Baro: DPS310
OSD: AT7456E
Input Voltage: 14.8V-50.4V (4S-12S LIPO)
Blackbox: SD Card
UARTS: 7
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Mount pattern: 35*35mm/φ4
Dimensions: 42*42*11.3mm
Weight: 20g
BEC: 5V 3A,12V 2.5A
BF Firmware target: IFLIGHT_BLITZ_H7_PRO (BF4.4.2)
Ardupilot Firmware: BlitzH743Pro

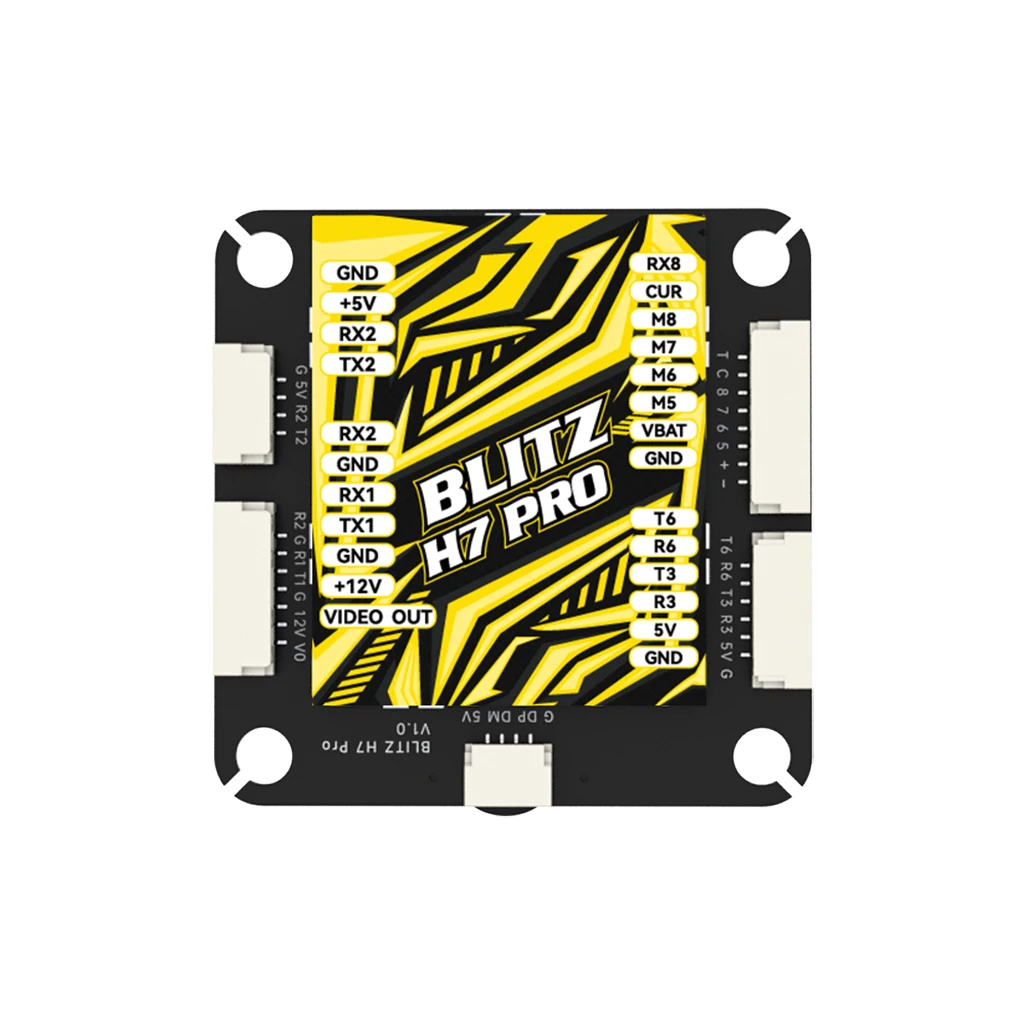

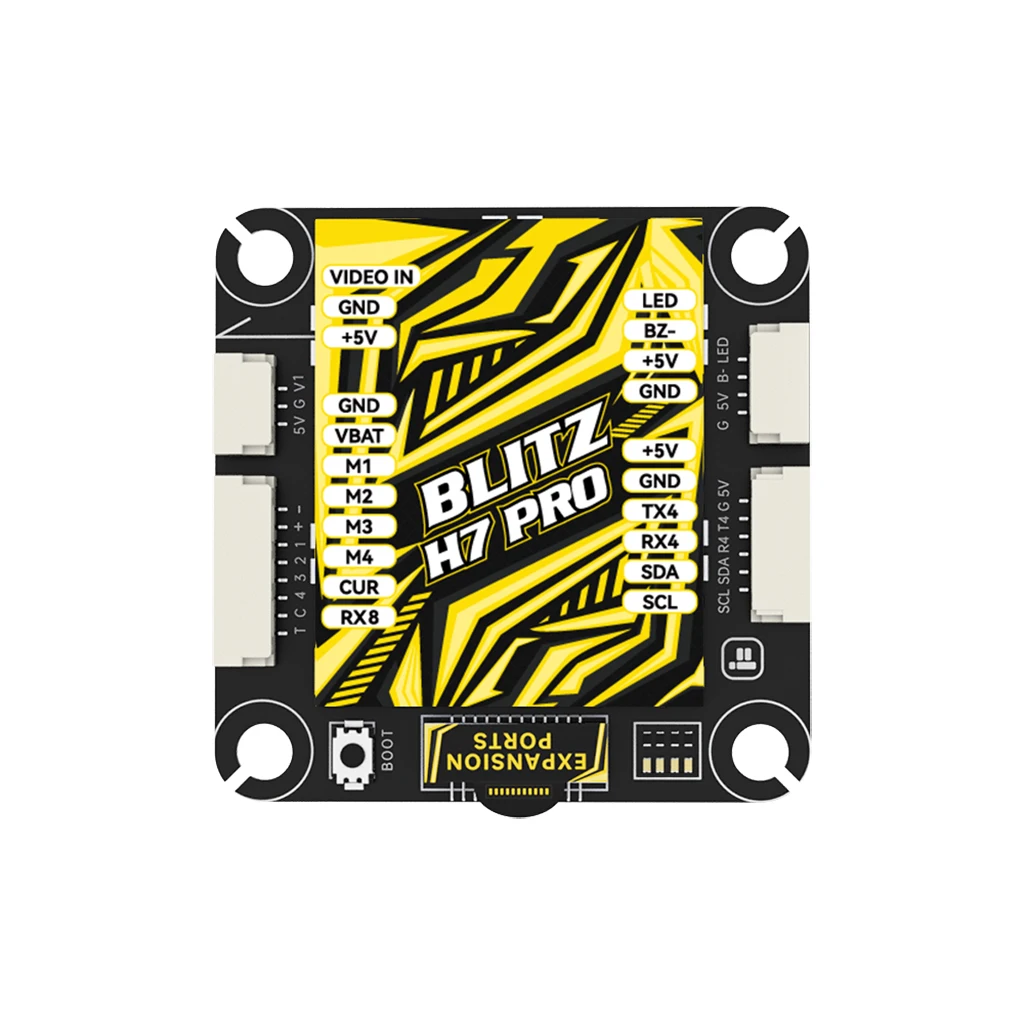

Wiring Suggestion
UART1 for VTX HD/Analog
UART2 for Receiver
UART4 for GPS
UART5 for ESC Telemetry
8×Dshot/PWM outputs
2×I2C for GPS Mag
Packing List
1 x BLITZ H7 Pro Flight Controller
1 x Cable set
1 x USB Adapter Board
