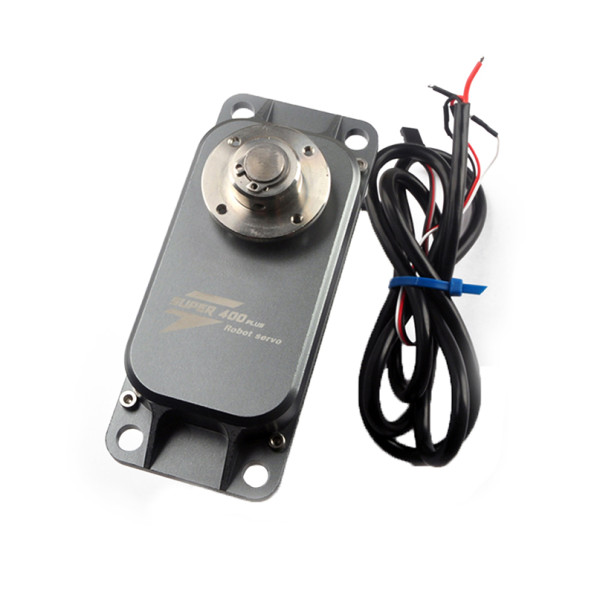

400kg / 200kg High Torque Metal Brushed Servo Steering Gear Suitable for 12v-24v Large Robot Arm DIY Models UAV

400kg / 200kg High Torque Metal Brushed Servo Steering Gear Suitable for 12v-24v Large Robot Arm DIY Models UAV Item NO.: 32596660

Write a Review
US$ 71.99
Color:
400kg 200kg
Ships From:
China US$ 71.99
- +
Quantity: 0 , Subtotal 0
Add to Cart

Adding to cart succeed

0 item(s) in cart, Subtotal: US$ 0

Continue Shopping View My Cart

Copy and share this link on social network or send it to your friends

Copy
Product Name 400kg / 200kg High Torque Metal Brushed Servo Steering Gear Suitable for 12v-24v Large Robot Arm DIY Models UAV
Item NO. 32596660
Weight 1.5 kg = 3.3069 lb = 52.9109 oz
Category FPV Drone and Part > RC Parts > RC Servos and Part
Brand Happymodel
Creation Time 2022-04-22



200kg / 400kg High Torque Metal Servo Steering Gear Suitable for 12V-24V Large Robot Arm DIY Models


Brand: JMT

Voltage: 12V-24V
Speed (no load): 24v about 0.46s/60°
Maximum torque: 200kg.cm
Rated torque: 70kg.cm
No-load current: <0.15A
Stall current: 24v: <11A
Input signal: PWM: 800us ~ 2200us, 50-400Hz
Operating angle range: adjustable: minimum ± about 60 °, up to about ± 300 °
Weight: 759g
Length, width and height: 132*55*116mm
Application: Industrial robot arm

Product included;
200kg high torque metal steering gear *1
Accessories Kit*1

Brand: JMT
Voltage: 12V-24V
Speed (no load): 12v about 0.74s/60° 24v about 0.37s/60°
Maximum torque: 400kg.cm
Rated torque: 140kg.cm
No-load current: <0.1A
Stall current: 12v: <7A 24v: <14A
Input signal: PWM: 800us ~ 2200us, 50-400Hz
Operating angle range: adjustable: minimum ± 30 °, maximum ± 150 °
Weight: 766g
Length, width and height: 132*55*116mm
Application: Industrial robot arm

Product included;
400kg (or 200kg) high torque metal steering gear *1
Accessories Kit*1
