FEICHAO Waterproof Servos 9KG 15KG 20KG 25KG 30kg 35kg 40KG 180 270 360 Degree Large Torque Digital Servo Metal Gear For RC Truck  1/8 1/10 Car

FEICHAO Waterproof Servos 9KG 15KG 20KG 25KG 30kg 35kg 40KG 180 270 360 Degree Large Torque Digital Servo Metal Gear For RC Truck 1/8 1/10 Car Item NO.: 33817500

Write a Review
US$ 14.59
Color:
9KG 180 degrees US$ 14.59 Stock(999)
- +
9KG 270 degrees US$ 41.59 Stock(999)
- +
9KG 360 degrees US$ 14.59 Stock(999)
- +
15KG 180 degrees US$ 14.59 Stock(999)
- +
15KG 270 degrees US$ 14.59 Stock(999)
- +
15KG 360 degrees US$ 14.59 Stock(999)
- +
20KG 180 degrees US$ 15.09 Stock(999)
- +
20KG 270 degrees US$ 15.09 Stock(999)
- +
20KG 360 degrees US$ 15.09 Stock(999)
- +
25KG 180 degrees US$ 17.31 Stock(999)
- +
25KG 270 degrees US$ 17.31 Stock(999)
- +
25KG 360 degrees US$ 17.31 Stock(999)
- +
30KG 180 degrees US$ 17.38 Stock(999)
- +
30KG 270 degrees US$ 17.38 Stock(999)
- +
30KG 360 degrees US$ 17.38 Stock(999)
- +
35KG 180 degrees US$ 18.09 Stock(999)
- +
35KG 270 degrees US$ 18.09 Stock(999)
- +
35KG 360 degrees US$ 18.09 Stock(999)
- +
40KG 180 degrees US$ 19.09 Stock(999)
- +
40KG 270 degrees US$ 19.09 Stock(999)
- +
40KG 360 degrees US$ 19.09 Stock(999)
- +
Quantity: 0 , Subtotal 0

Copy and share this link on social network or send it to your friends

Copy
Product Name FEICHAO Waterproof Servos 9KG 15KG 20KG 25KG 30kg 35kg 40KG 180 270 360 Degree Large Torque Digital Servo Metal Gear For RC Truck 1/8 1/10 Car
Item NO. 33817500
Weight 0.145 kg = 0.3197 lb = 5.1147 oz
Category FPV Drone and Part > RC Parts > RC Servos and Part
Brand FEICHAO
Creation Time 2022-07-25

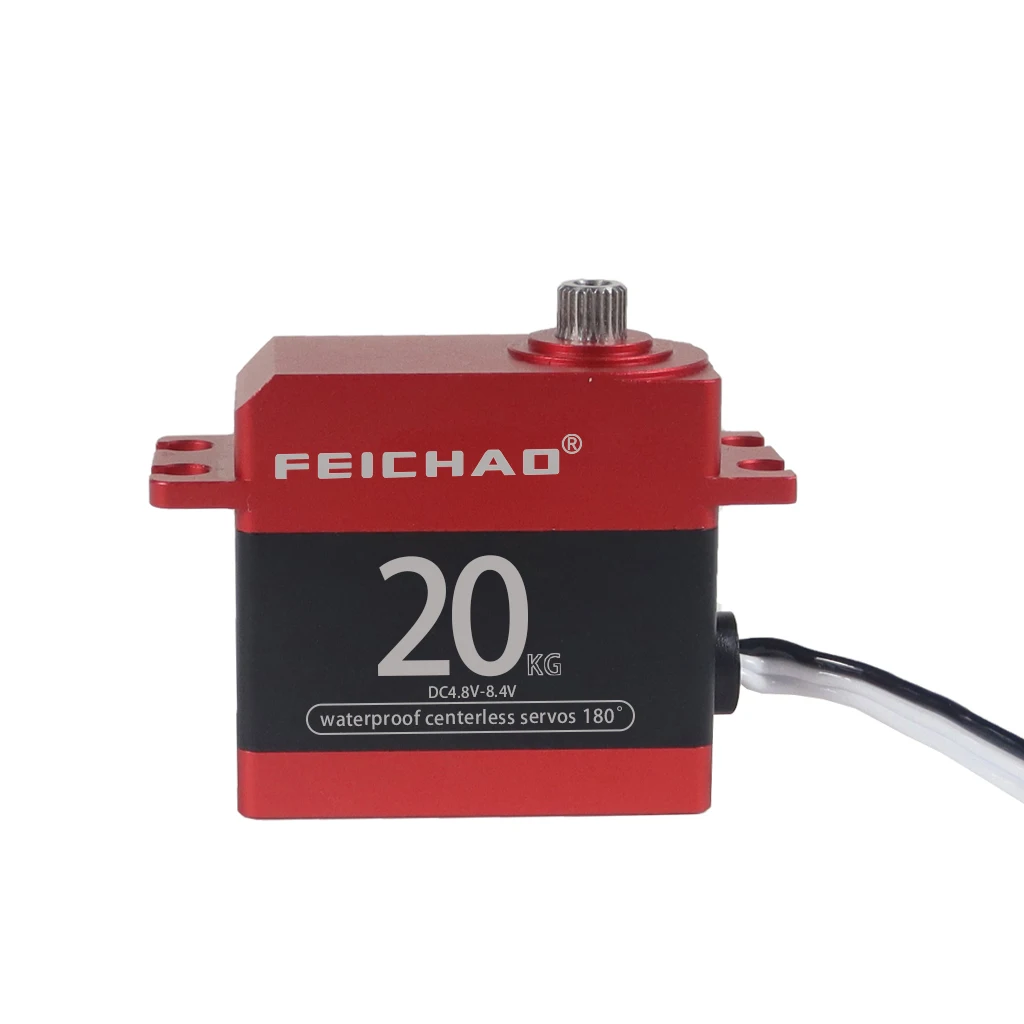

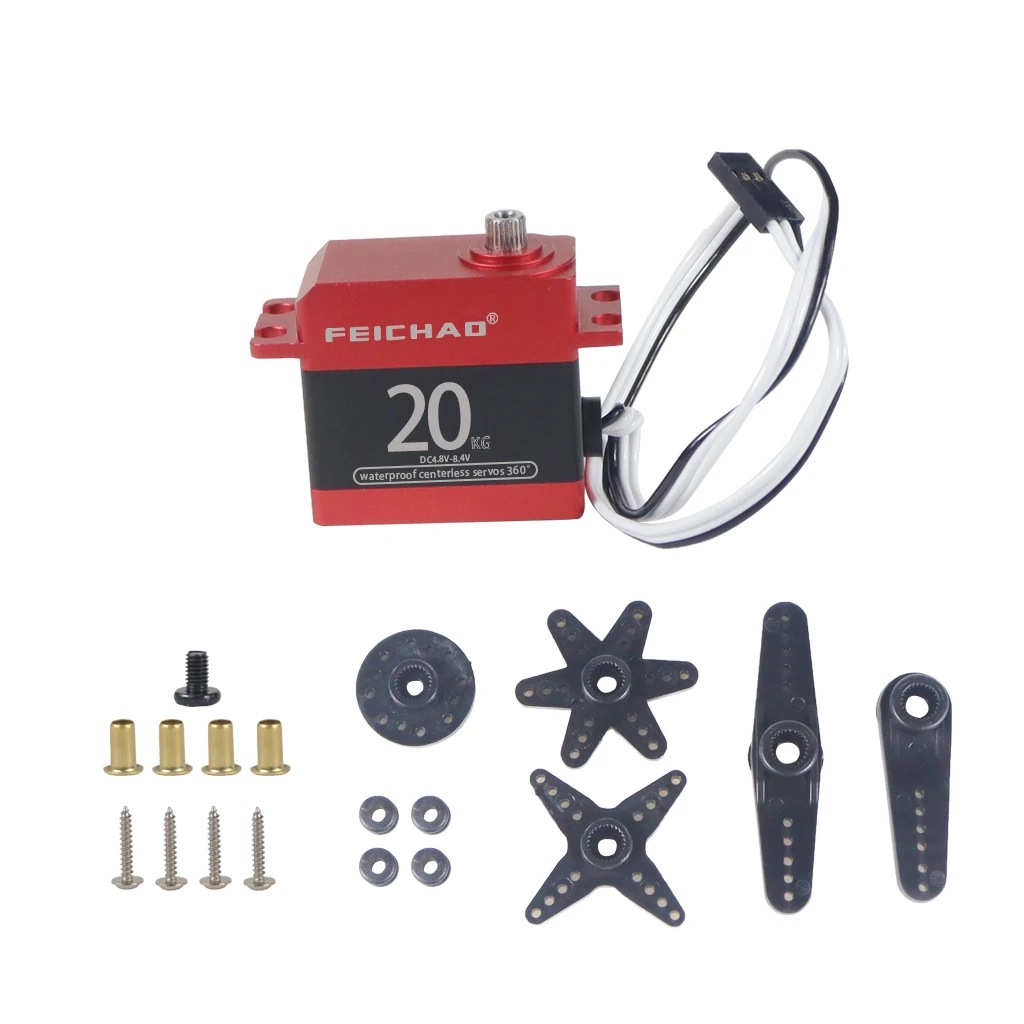

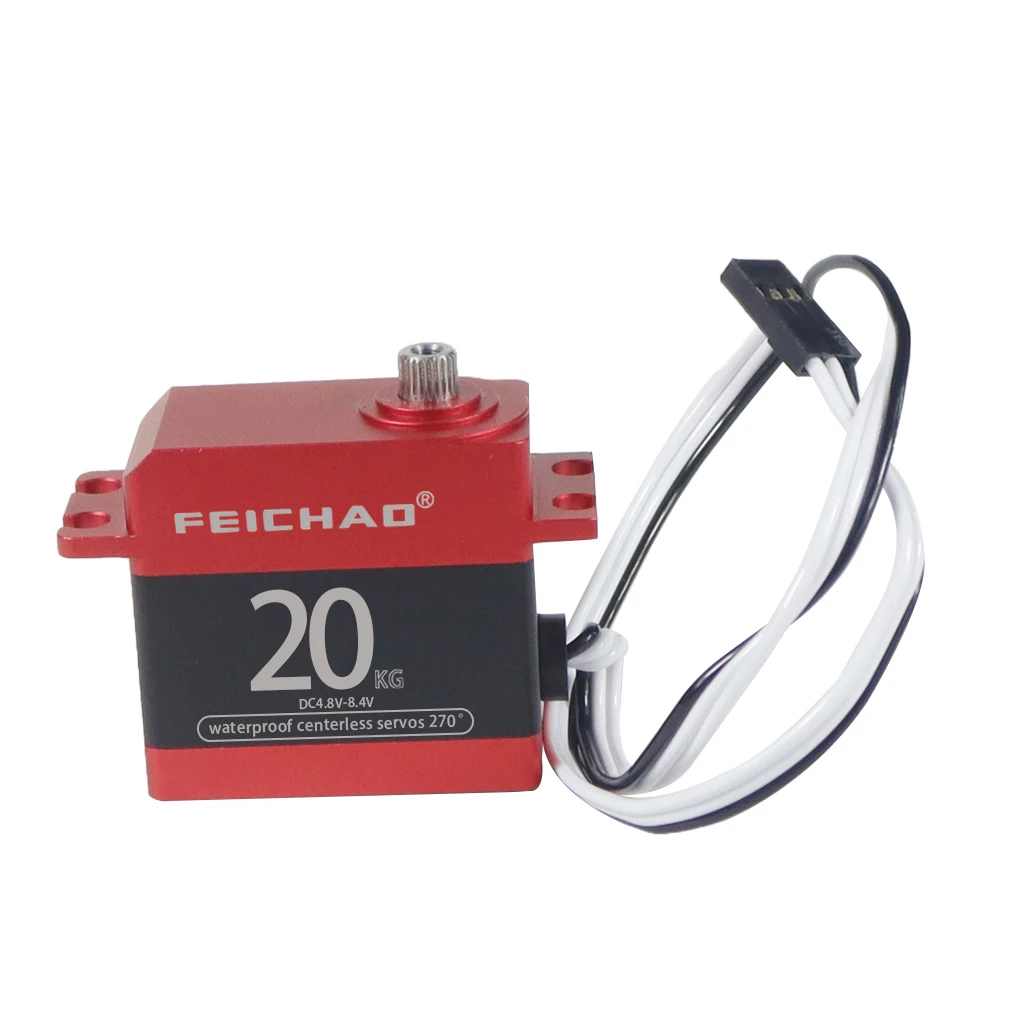

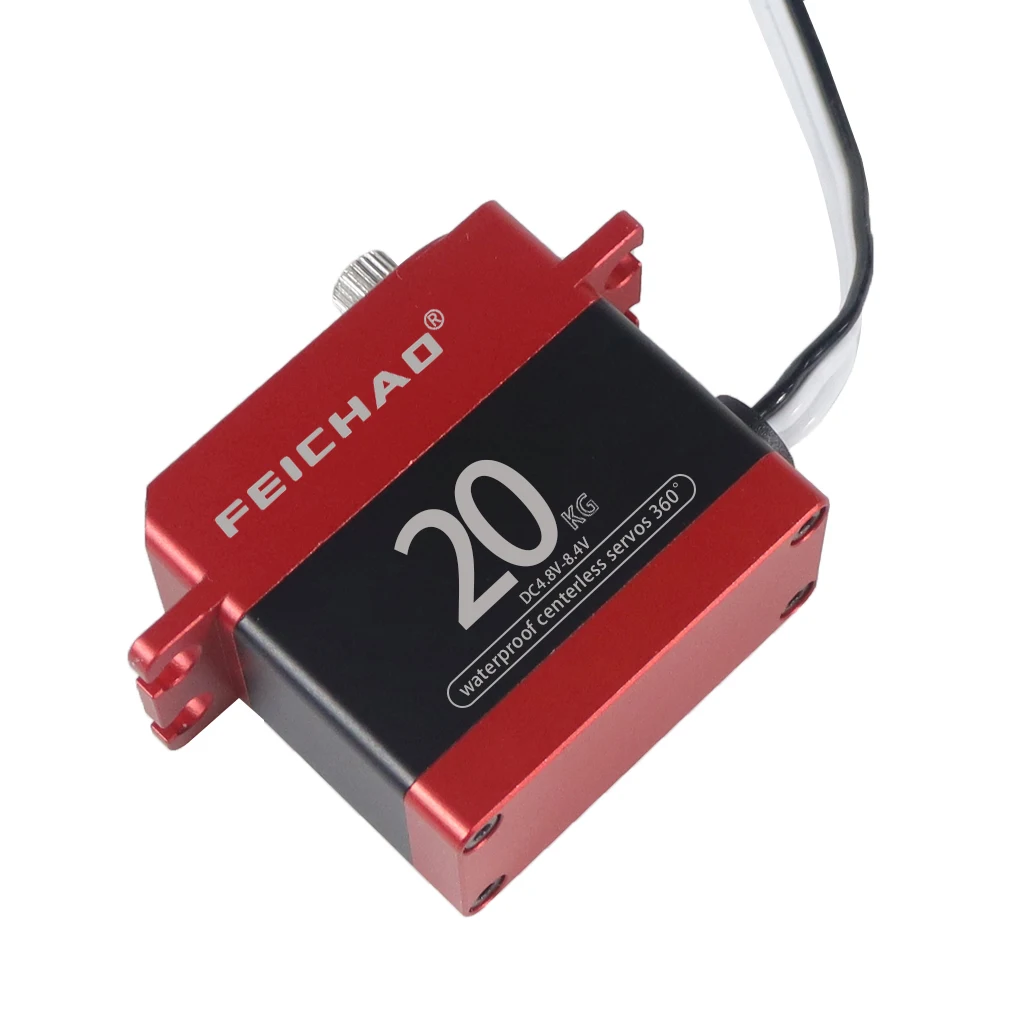

FEICHAO Waterproof Servos 9KG 15KG 20KG 25KG 30kg 35kg 40KG 180 270 360 Degree Large Torque Digital Servo Metal Gear For RC Truck  1/8 1/10 Car


- High precision metal gears with hard anodizing


-CNC aluminum center shell,

Control system: PWM control (1500 u-sec is the center point)

Working voltage: 4.8V~8.4V

Working Temperature: -20C°~+60C°

Torque: 4.8V /17.2kg.cm

6.0V /20.3kg.cm

Idle speed: 4.8V/0.10sec/60 degree

6.0V/0.13sec/60deg

Steering angle: 180 / 270 degrees

Idle current: 4.8V/470mA 6.0V /650mA

Charging current: 4.8V/750mA 6.0V /950mA

Dead band: 3usec

Lifetime:>15000 times without load

Travel angle: 60°±10°

Drive type: MOS drive

Motor type: core motor

Potentiometer Type: Direct Drive

Signal Amplifier Type: Digital

Size: 40.0X20.0X37.8mm

Weight: 62g (without accessories)

Ball bearing: 2BB

Gear material: metal gear

Housing material: PA66 + 40% fiber

Wire length: 260mm

Wire gauge no and plug type: 26AWG, JR plug

Brown Wire: Negative

Red wire: Positive

Orange Wire: Singal

Application: RC car, RC plane, helicopter
