Home>FPV Drone and Part>RC Parts>RC Servos and Part>FEICHAO 120/180/270/360 Degree Waterproof Servo 12kg Short Body Metal Gear Digital Servo for Robot/Airplane/RC Car/RC Toy Part

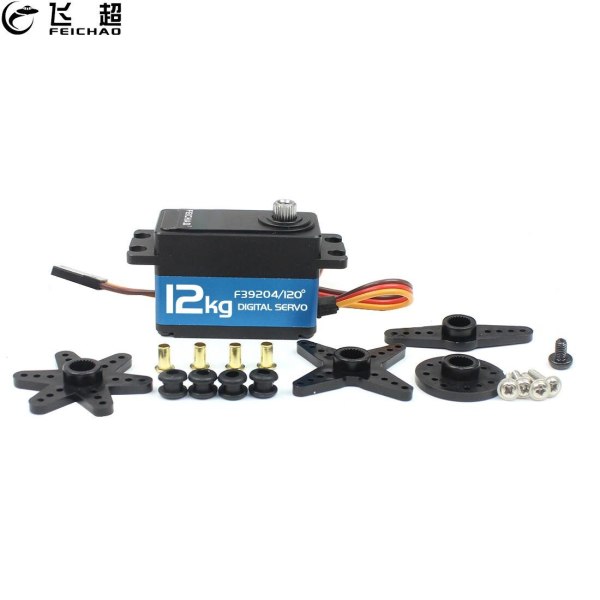

FEICHAO 120/180/270/360 Degree Waterproof Servo 12kg Short Body Metal Gear Digital Servo for Robot/Airplane/RC Car/RC Toy Part Item NO.: F39204 F39205 F39206 F39207

Write a Review

US$ 21.12

Color:
	US$ 26.22	Stock(9999)	- +
	US$ 86.32	Stock(9999)	- +
	US$ 21.12	Stock(9999)	- +
	US$ 90.52	Stock(9999)	- +
	US$ 26.95	Stock(9999)	- +
	US$ 27.95	Stock(9999)	- +
	US$ 26.25	Stock(9999)	- +
	US$ 86.35	Stock(9999)	- +
	US$ 27.15	Stock(9999)	- +
	US$ 90.55	Stock(9999)	- +
	US$ 26.25	Stock(9999)	- +
	US$ 86.35	Stock(9999)	- +
	US$ 27.15	Stock(9999)	- +
	US$ 90.55	Stock(9999)	- +
	US$ 26.95	Stock(9999)	- +
	US$ 27.95	Stock(9999)	- +
	US$ 26.25	Stock(9999)	- +

Quantity: 0 , Subtotal 0

Product Name	FEICHAO 120/180/270/360 Degree Waterproof Servo 12kg Short Body Metal Gear Digital Servo for Robot/Airplane/RC Car/RC Toy Part
Item NO.	F39204 F39205 F39206 F39207
Weight	0.345 kg = 0.7606 lb = 12.1695 oz
Category	FPV Drone and Part > RC Parts > RC Servos and Part
Brand	FEICHAO
Creation Time	2020-10-14

FEICHAO 120/180/270/360 Degree Waterproof Servo 12kg Short Body Metal Gear Digital Servo for Robot/Airplane/RC Car/RC Toy Part

1.Apply Environmental Conditon
No.	ltem	Specifcation
1.1	I Storage Temperature Range	-30°C~80°C
1.2	Operating Temperature Range	-25°C~-70C
2 Standard Test Environment
No.	ltem	Specifcation
2.1	Temperature Range	-25°C~70°C
2.2	Humidity Range	65%+10%
3.Mechanical Specification
No.	\|Item	Specifcation
	Size	40.820.228.7mm
3.2	Weight	60g+5%
3.3	Gear type	6 Metal
3.4	Limit angle	360°
3.5	Bearing	2BB
3.6	Horm gear spline	25T :5.9mm
3.7	Horntype	Plastic,POM
3.8	Case	Aluminum alloy
3.9	Connectorwire	320mmt5mm
3.10	Motor	Carbon brush motor
3.11	Splash water resistance	\|IP65
4.ElectricalSpecification
No.	Operatvoltage	48V	7.2V
4.1	Idlecurrent	\|mA	mA
4.2	No load speed	0.12sec/60°	0.09sec/60°
4.3	Runnig current	210mA	260mA
4.4	Peak stall torque	11.5kg.cm	14.5kg.cm
4.5	Stallcurrent	2000mA+10%	2700mA+10%
4.6	Workingvoltagerange	4.8-7.2V
5.	Control Specification
No.	Item	Specifcation
5.1	Commandsignal	Pulse width modification
5.2	Amplfier type	Digital controler
5.3	Pulse width range	500~2500usec
5.4	Neutral position	1500usec
5.5	Running degree	180+3(when500~~2500usec)
5.6	Dead band width	\|5usec
5.7	Rotating direction	Counterclockwise(when1000~2000usec)
