Electronic Accessories KKMulticopter V2.3 Circuit Board D2212 920KV Brushless Motor 30A ESC Propeller for UFO Heli
Motor Description:
Outer diameter: 28.0 mm
Height: 24.0 mm (Without Shaft)
K V: 920kv
Fit for DJI Phantom F330 F450 F550 X525
ESC:
This ESC is specially designed for multi-copter application, support up to 6S Lipo.
This Version Without Motor Wires, Connectors are Welded Directly To The PCB Board.
Specifications:
30A-Pro 2-6S Electric Speed Controller (ESC) OPTO - Specially for Multi-rotor Aircraft.
Output: Continuous 30A, burst 45A up to 10 seconds.
Input Voltage: 2-6 cells lithium battery or 5-18 cells NiMH battery.
BEC: NO
Parameter programming function: Yes
Size: 56.5mm (L) * 25.6mm (W) * 8mm (H).
KK board:
This is the latest v.5.5 KKmulticontroller that has been factory made and fully populated. It uses the Murata piezoelectric gyros which have been incorporated into the board design for robustness. The Yaw gyro assembly is also slot mounted for extra robustness. These gyros have proven to be the most vibration resistant of all the gyros we have tested so far.
The board comes in black with a blue LED and has an on board In System Programming (ISP) header to enable easy firmware updates with a site recommended programmer. The on board Atmega168 chip gives users the extra space to load expanded firmware with higher refresh rates to enhance stability.
The three adjustable potentiometers increase or decrease gyro gain for all three axis (Roll, Pitch and Yaw) and can be used to calibrate the ESCs and reverse the gyro directions if necessary during pre-flight setup.
The board also has six ESC/Servo headers which allow multicopter configurations from 2 to 6 rotors. There are also headers for thee aileron, elevator, throttle and rudder connections from your RC Receiver(RX). The board comes with a 4 x 3 pin jumper cables to connect your RX to the board quickly and easily.
There's variety of firmware available for this controller, you will have load them due to your needs, only test program is loaded by default.

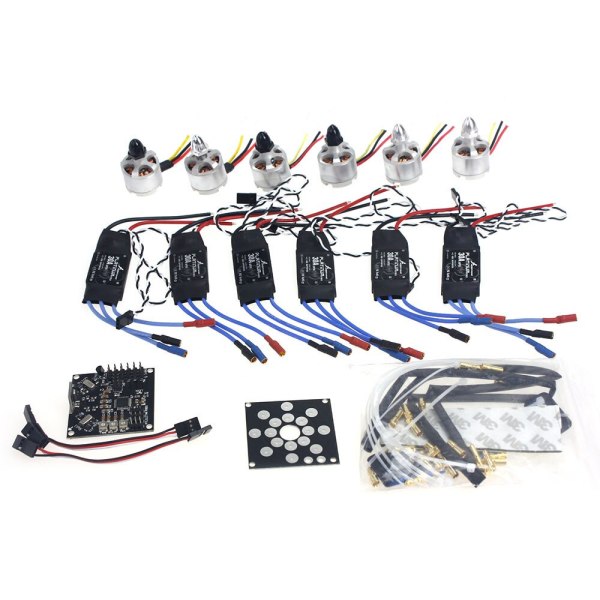

Quantity:
3 pcs 920KV CW motor
3 pcs 920KV CCW motor
6 pcs 30A ESC
6 pairs 9443 propellers
1 pcs KK Multi-Copter Power Battery to 8 ESC Connection Board
1 pcs KKMulticopter V2.3 Circuit board Flight Controller V5.5
1 tool set
