Flysky FS-i6S 2.4G 10CH AFHDS Touch Screen Transmitter FS-iA6B / FS-IA10B Receiver Self Center Throttle Mode for RC Quadcopter Helicopter
2 Kinds of receiver optional (FS-iA6B / FS-IA10B), With Mobile Holder or without Mobile Holder optional, Please choose the one you want.
Control distance: about 400 meters
Overview:
The FS-i6S transmitter and FS-iA6B/FS-IA10B receiver constitute a 10 channel 2.4GHz AFHDS 2A digital proportional computerized RC System. This system supports quadcopters.
The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and patented by Flysky is specially developed for all radio control models.Offering superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity,Flysky's AFHDS technology is considered to be one of the leaders in the RC market today.
Description:
Brand Name: Flysky
Item Name: FS-i6S with FS-iA6B/FS-IA10B receiver
Specifications:
|
|
FS-i6S Transmitter
|
FS-iA6B Receiver
|
|
Channel
|
6
|
6
|
|
Frequency
|
2.4055 - 2.475GHz
|
2.4055 - 2.475GHz
|
|
Width
|
500KHz
|
-----
|
|
Number
|
140
|
140
|
|
Transmitting Power
|
<20dbm
|
-----
|
|
Receiver Sensitivity
|
-----
|
-105dbm
|
|
2.4G Mode
|
AFHDS
|
AFHDS
|
|
Modulation System
|
GFSK
|
GFSK
|
|
Joystick Resolution
|
4096 class
|
-----
|
|
Low-Voltage Alarm
|
<4.2V
|
-----
|
|
Charging Port
|
Yes (USB)
|
-----
|
|
Input Voltage
|
4.2V-6.0V
|
4.0V-6.5V DC
|
|
Antenna Length
|
26mm (dual antenna)
|
26mm (dual antenna)
|
|
Weight
|
410g
|
14.9g
|
|
Dimension
|
179*81*161mm
|
47*26.2*15mm
|
|
Color
|
Black,white (optional)
|
Black
|
|
Mode
|
Mode Switch
(Self Centering Throttle)
|
-----
|
|
Certification
|
CE0678,FCC
|
CE0678,FCC
|
Receiver:

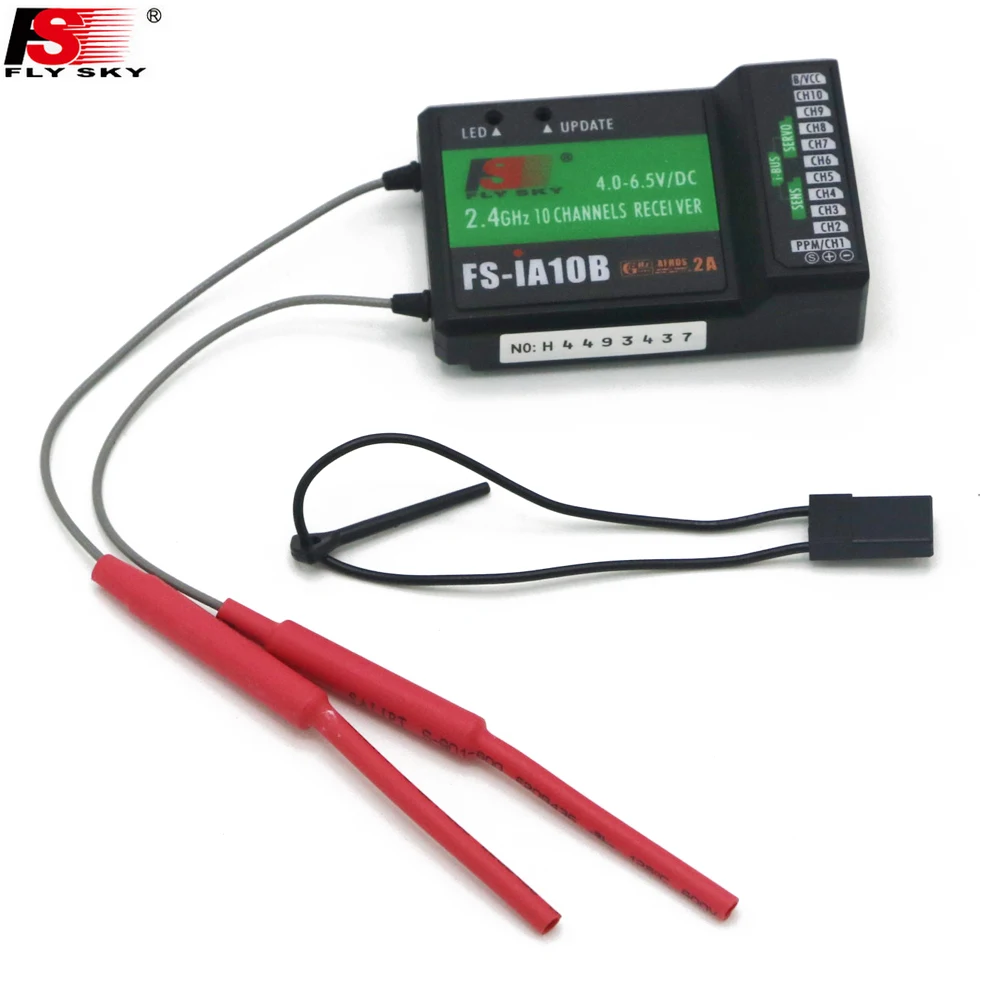

FS-IA10B:
Number of Channels: 10
Suitable models: Airplane / glider / helicopter Health
Frequency range :2.4-2 .48 GHz
Number of newspapers: 160
Transmitting power: not more than 20dBm
Receiver sensitivity:-105dBm
2.4G modes: automatic frequency second generation digital system
Encoding: GFSK
Antenna length: 26 mm * 2 (dual antenna)
Weight: 19.3 g
Input power :4.0-6 .5 V DC
Dimensions: 47 * 33.1 * 14.7 mm
Color: Black
Certification: CE0678, FCC
i-BUS Interface: Yes
Data acquisition interface: Yes
Features:
Full touchscreen interface,more convenient to control
Bidirectional Communication
Capable of sending and receiving data,each transmitter is capable of receiving data from temperature,altitude and many other types of sensors,servo calibration and i-BUS Support.
Multi-channel Hopping Frequency
This systems width ranges from 2.4055GHz to 2.475GHz. This is divided in 140 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean versions) in order to reduce interference from other transmitters.
Omni-directional Gain Antenna
The high efficiency Omni-directional high gain antenna cuts down on interference,while using less power and maintaining a strong reliable connection.
Unique ID Recognition System
Each transmitter and receiver has its own unique ID. Once the transmitter and receiver have been paired,they will only communicate with each other,preventing other systems accidentally connecting to or interfering with the system's operation.
Low Power Consumption
The system is built using highly sensitive low power consumption components,maintaining high receiver sensitivity,while consuming as little as one tenth the power of a standard FM system,dramatically extending battery life.
English Manual
Package Included:
1x Flysky FS-i6S Transmitter
1x Flysky FS-iA6B/FS-iA10B Receiver
1x User Manual
