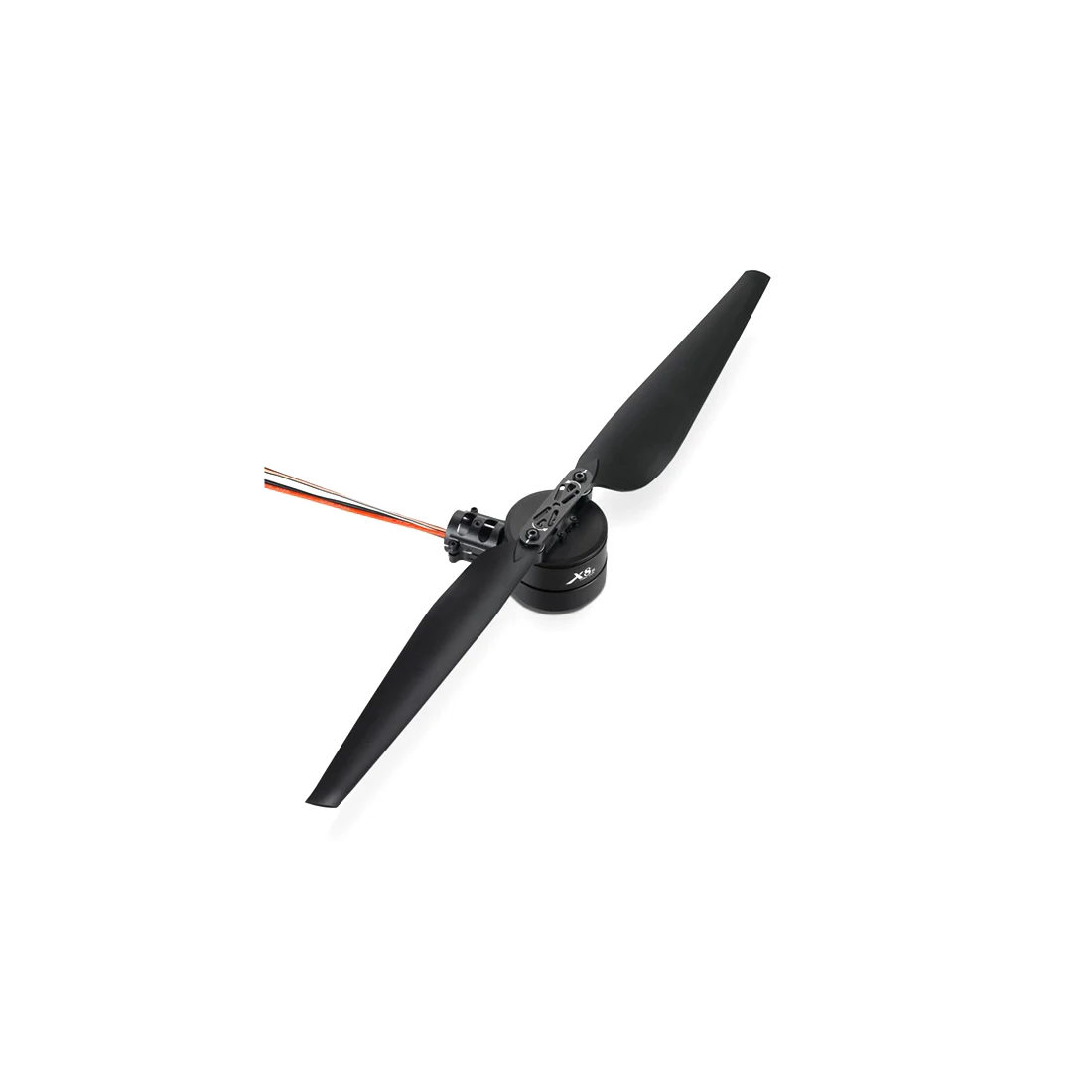

Hobbywing X8 Integrated Power Propulsion System 3090 CW CCW Propeller for 30/35/40mm Carbon Tube Payload Agricultural Drones

Hobbywing X8 Integrated Power Propulsion System 3090 CW CCW Propeller for 30/35/40mm Carbon Tube Payload Agricultural Drones Item NO.: F37251/F37252/F37253/F37254/F37255/F37256

Write a Review
US$ 175.20
Color:
X8 CW for 30mm tube US$ 175.20 Stock(500)
- +
X8 CCW for 30mm tube US$ 175.20 Stock(500)
- +
X8 CW for 35mm tube US$ 175.20 Stock(500)
- +
X8 CCW for 35mm tube US$ 175.20 Stock(500)
- +
X8 CW for 40mm tube US$ 175.20 Stock(500)
- +
X8 CCW for 40mm tube US$ 175.20 Stock(500)
- +
Quantity: 0 , Subtotal 0
Add to Cart

Adding to cart succeed

0 item(s) in cart, Subtotal: US$ 0

Continue Shopping View My Cart

Copy and share this link on social network or send it to your friends

Copy
Product Name Hobbywing X8 Integrated Power Propulsion System 3090 CW CCW Propeller for 30/35/40mm Carbon Tube Payload Agricultural Drones
Item NO. F37251/F37252/F37253/F37254/F37255/F37256
Weight 1.15 kg = 2.5353 lb = 40.5651 oz
Category FPV Drone and Part > RC Parts > Propellers
Brand Hobbywing
Creation Time 2020-10-14

Hobbywing X8 Integrated Power Propulsion System 3090 CW CCW Propeller for 30/35/40mm Carbon Tube Payload Agricultural Drones

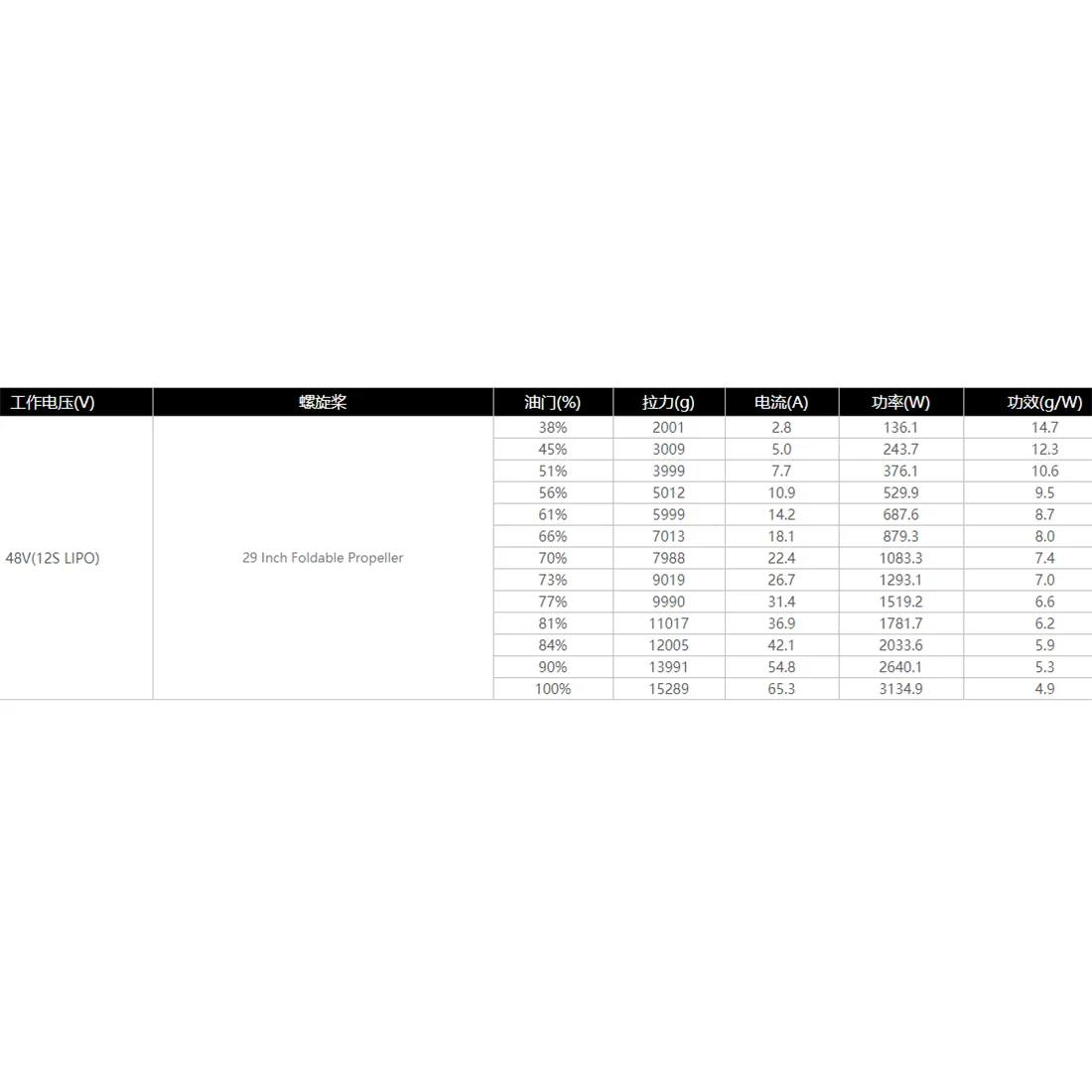

Parameter：


Maximum pulling force: 15.3kg / shaft

Recommended battery: 12S LiPo

Recommended take-off weight: 5-7kg / shaft

Powertrain weight: 1040g

Overall protection level: IPX7

Working environment temperature: -20 ℃ ~ 65 ℃

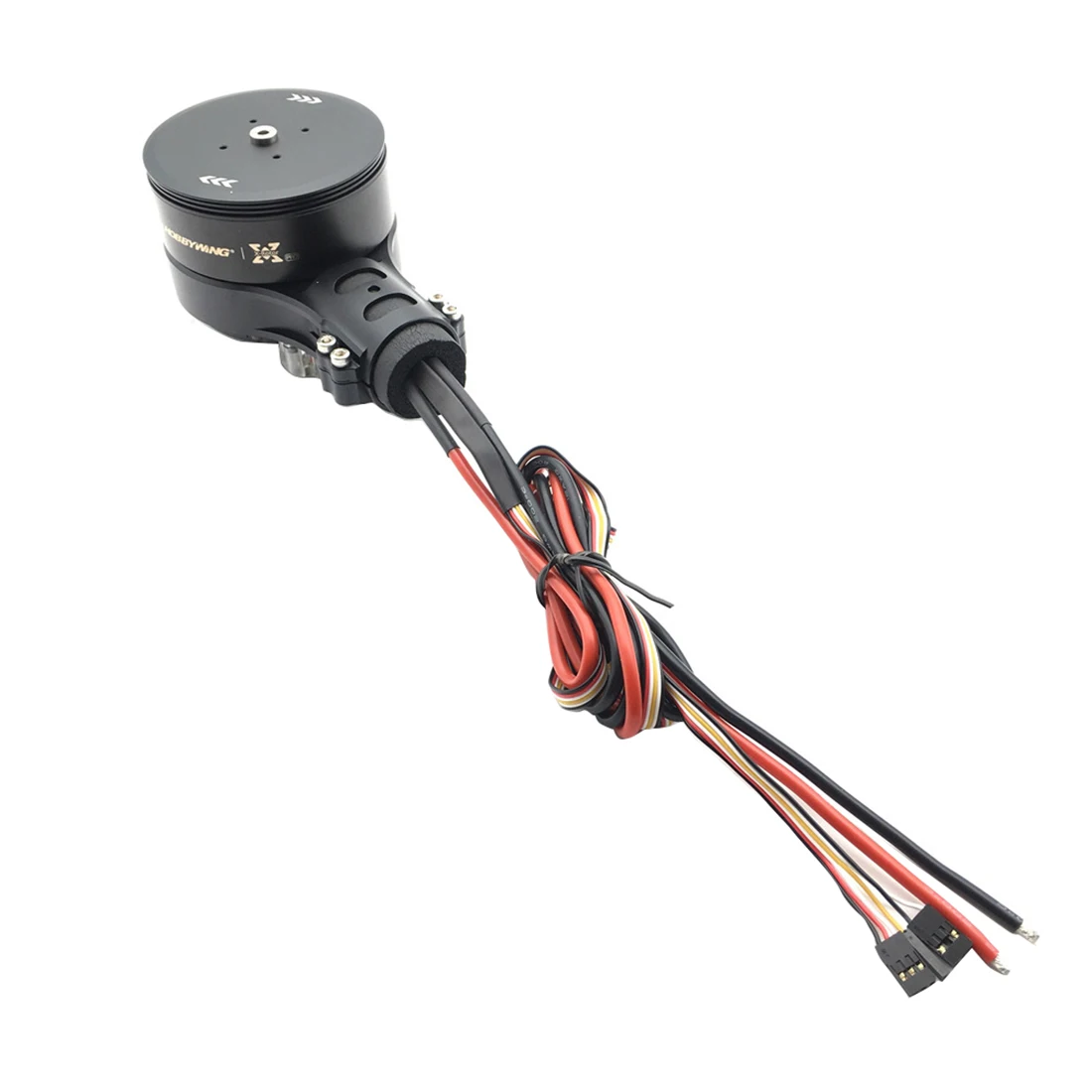

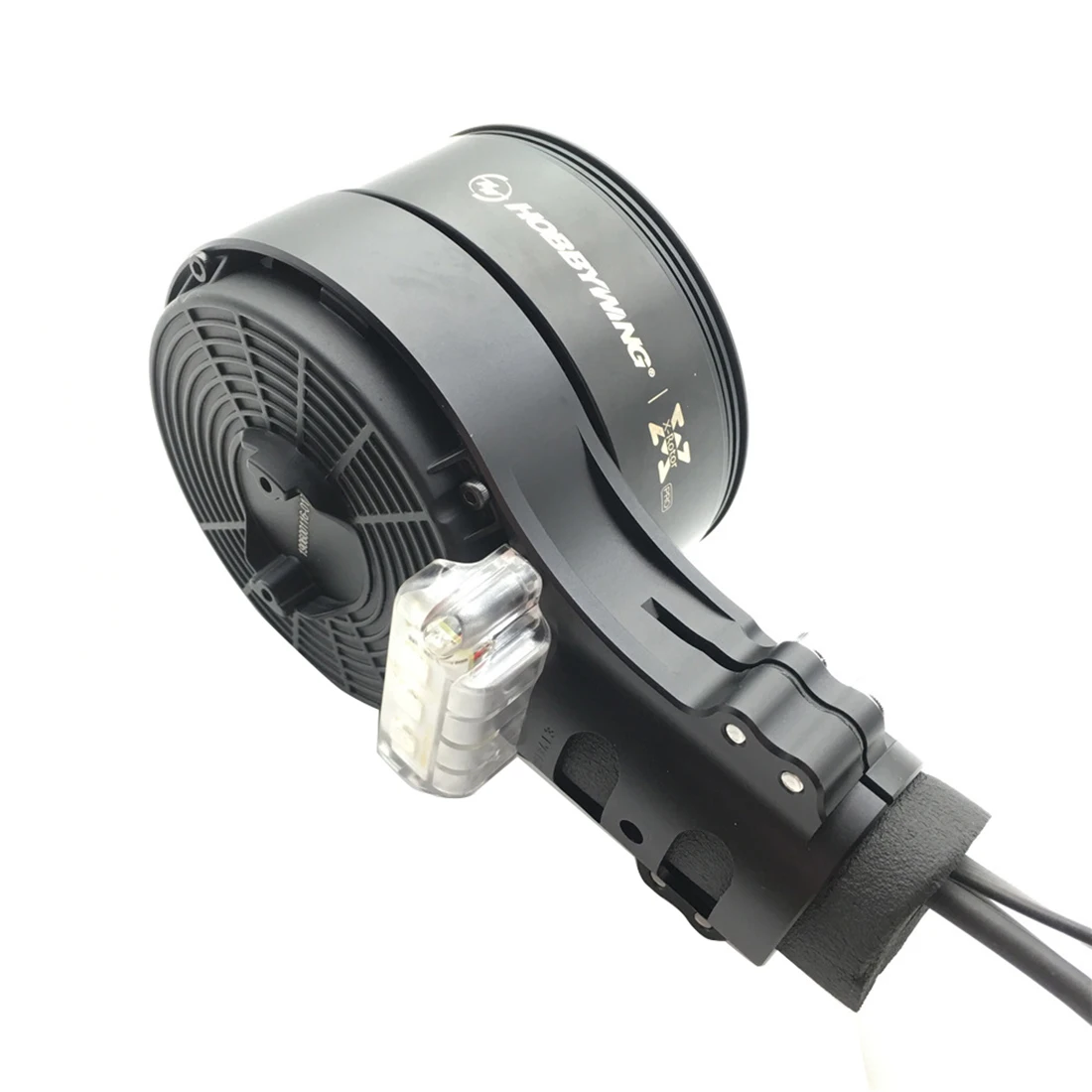

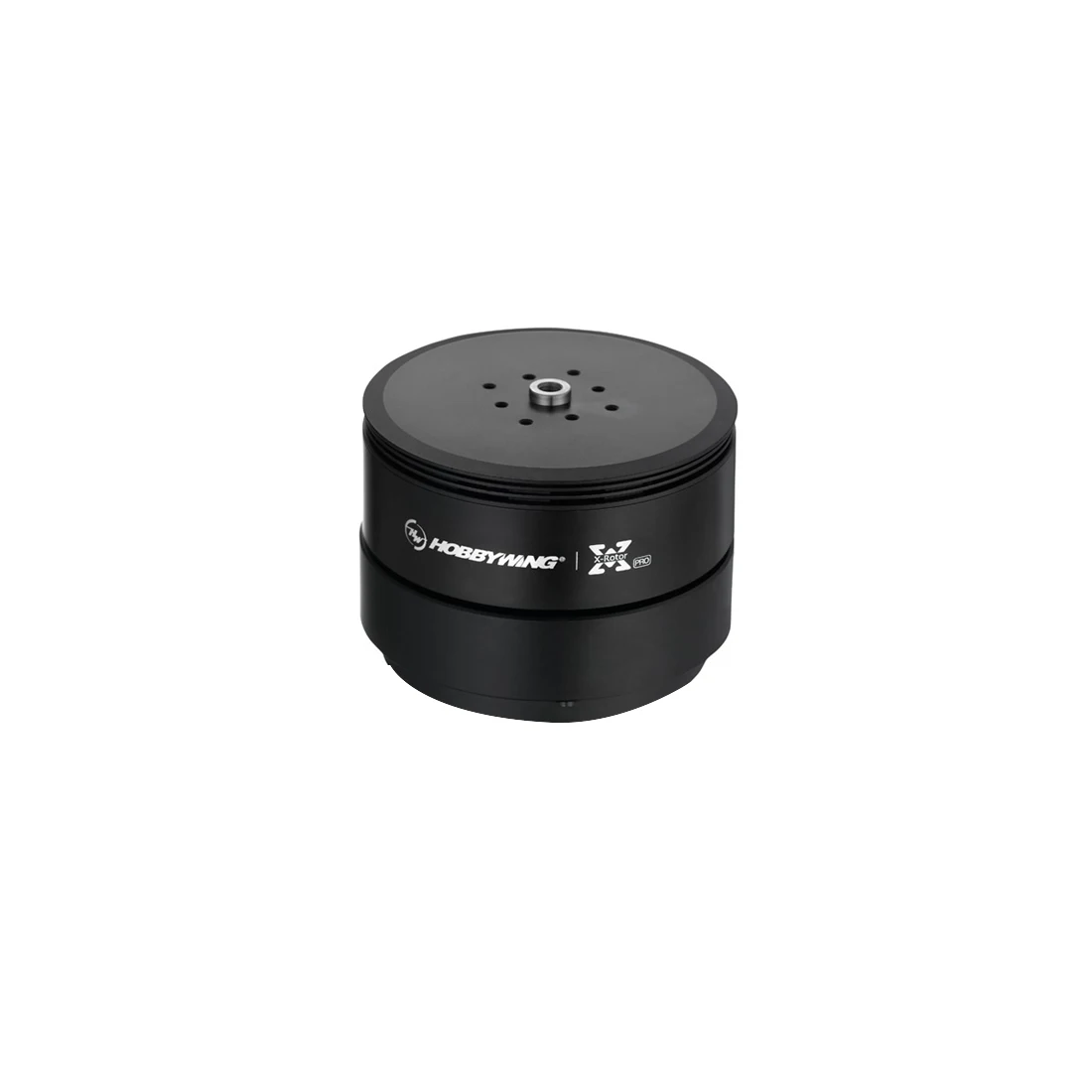

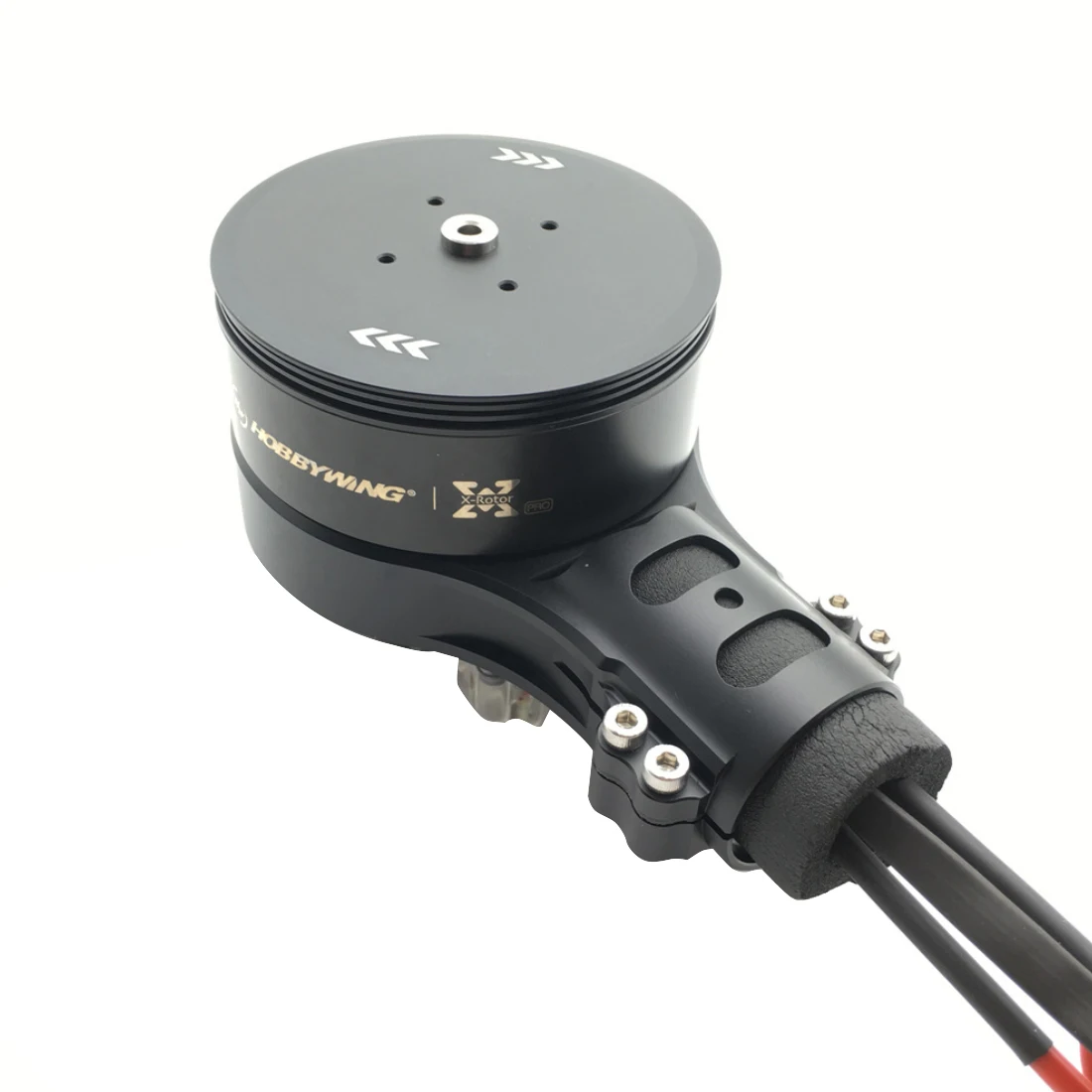

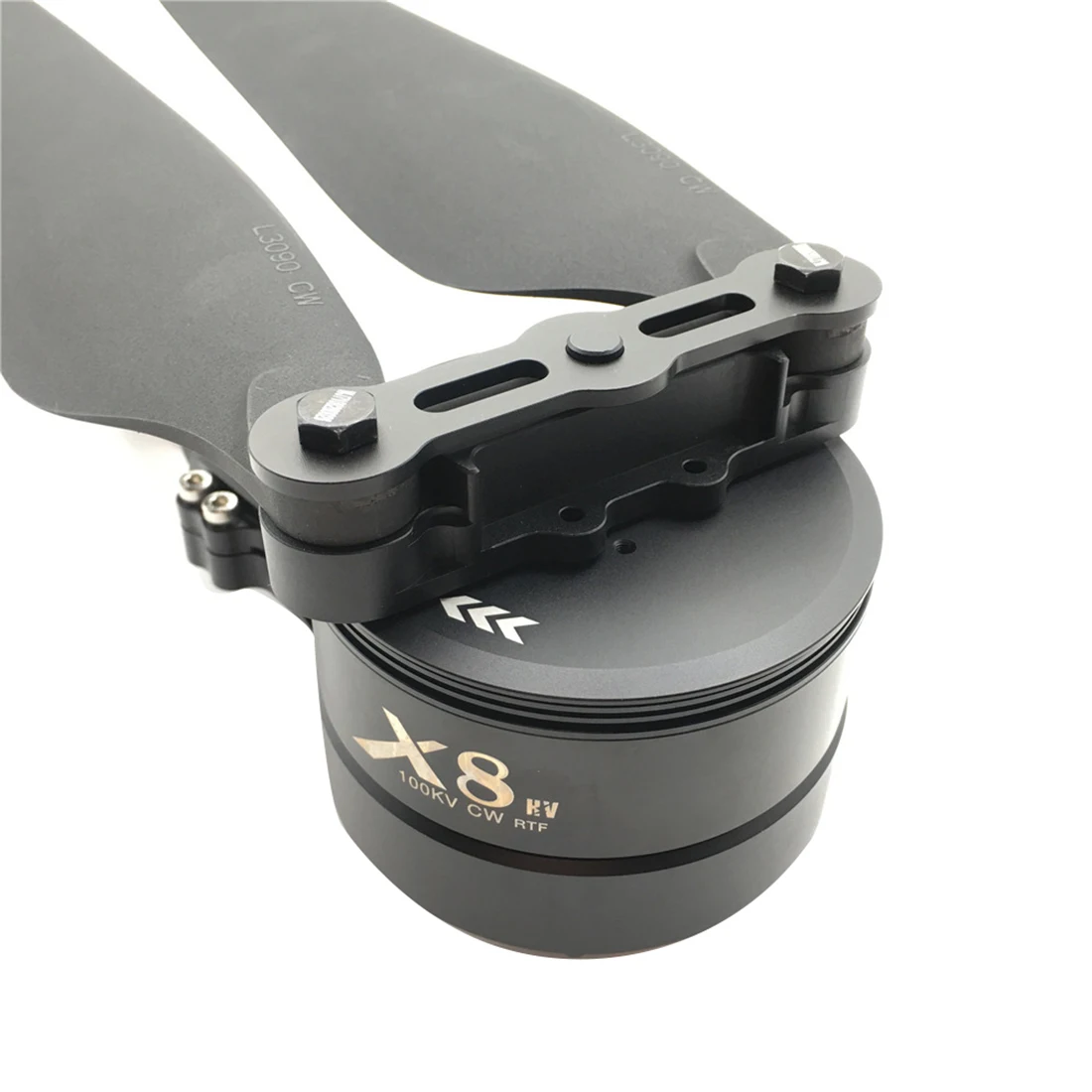

Motor:

Stator size: 81 * 20mm

KV value: 100KV

Applicable carbon tube outer diameter: Φ35mm / Φ30mm (requires the use of pipe diameter adapter)

Bearing: NSK bearing (waterproof)


ESC:

Support battery: 6-12S LiPo

PWM input signal level: 3.3V / 5V (compatible)

Compatible signal frequency: 50-500Hz

Working pulse width: 1100us-1940us (cured, does not support calibration)

Maximum allowable voltage: 52.2V

Maximum allowable current (continuous): 80 A (requires excellent heat dissipation conditions)

Maximum allowable peak current (10 seconds): 100A (requires excellent heat dissipation conditions)

BEC: None

Nozzle mounting threaded hole: Φ28.4mm-2 * M3

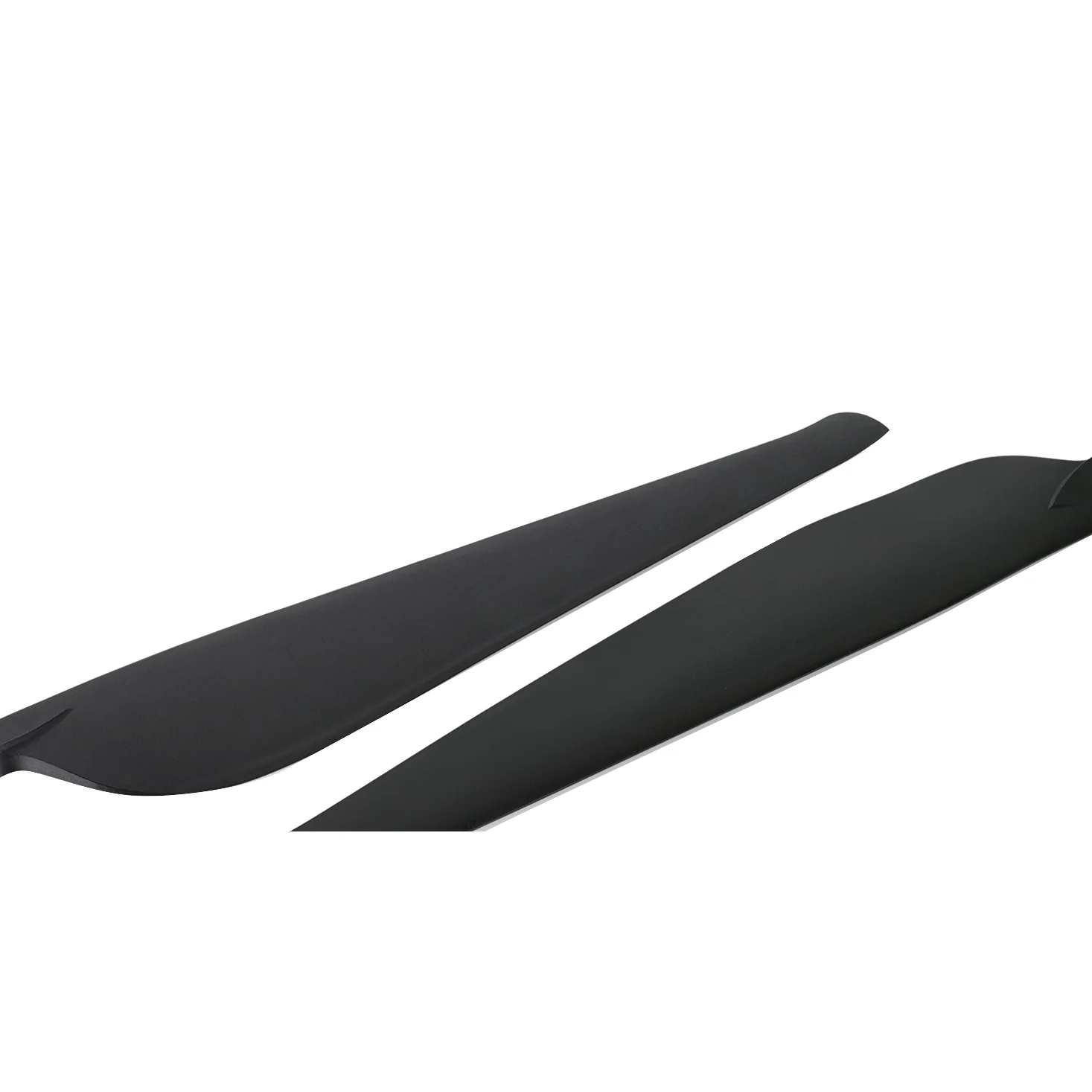

propeller:

Diameter×Pitch: 3090

Weight: 180g

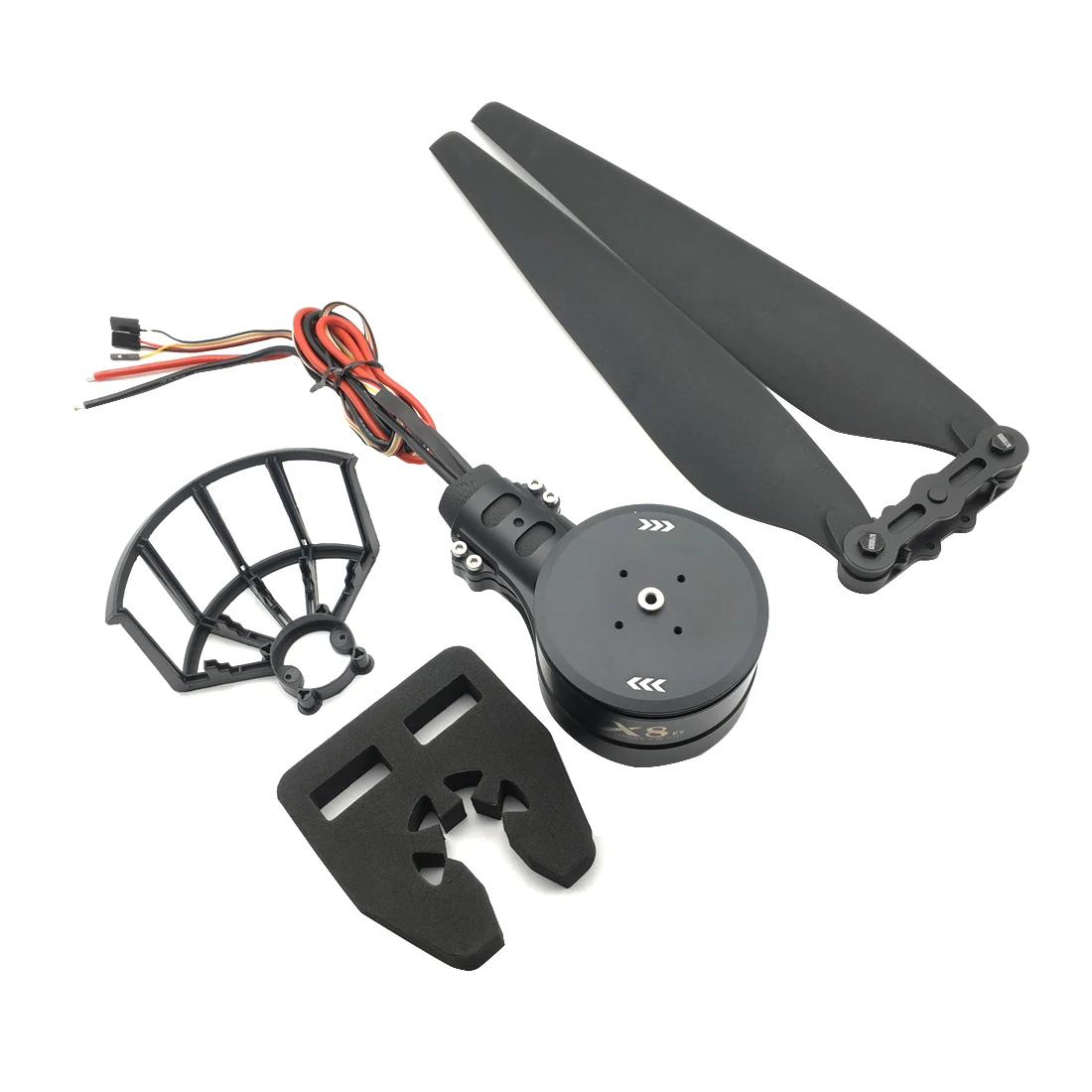

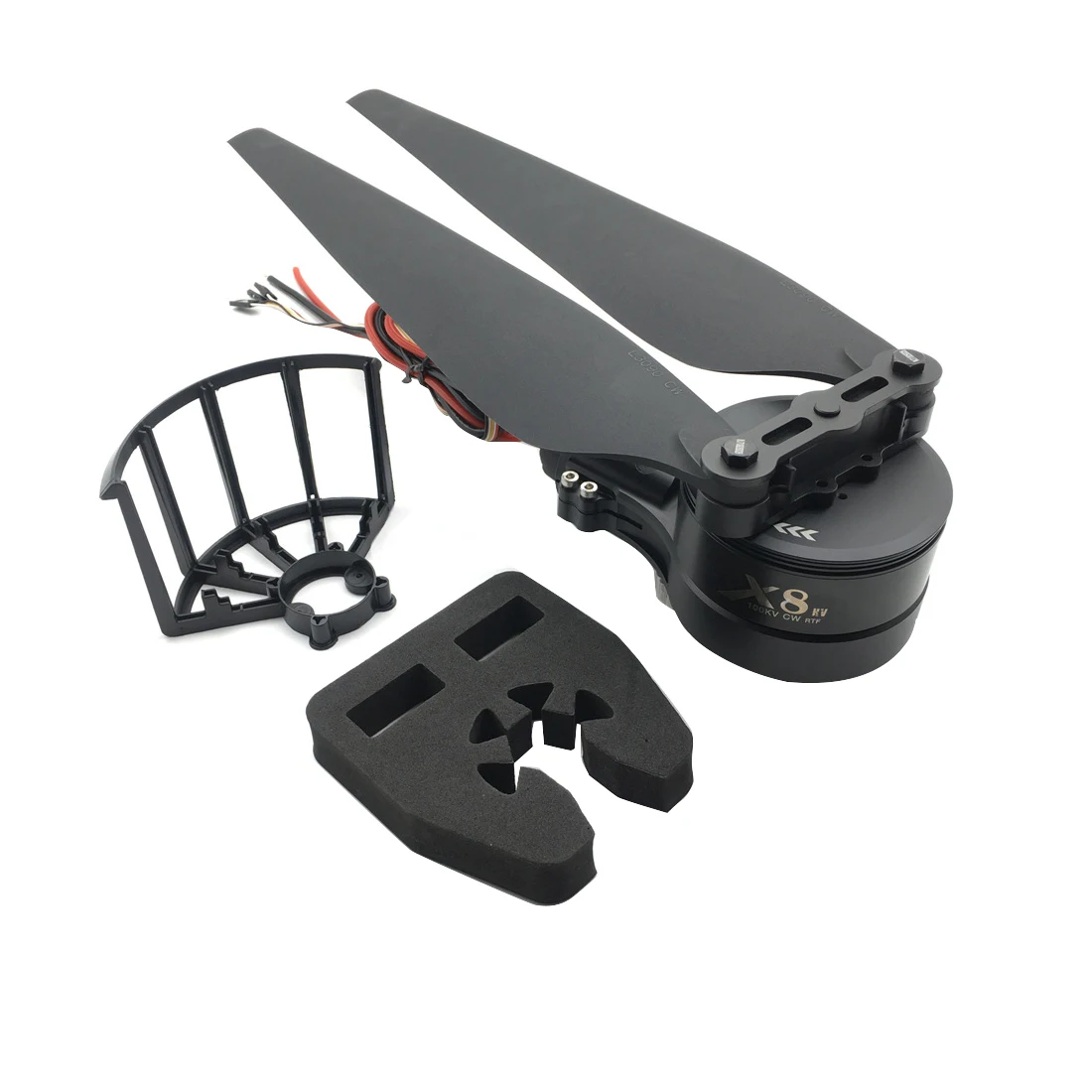

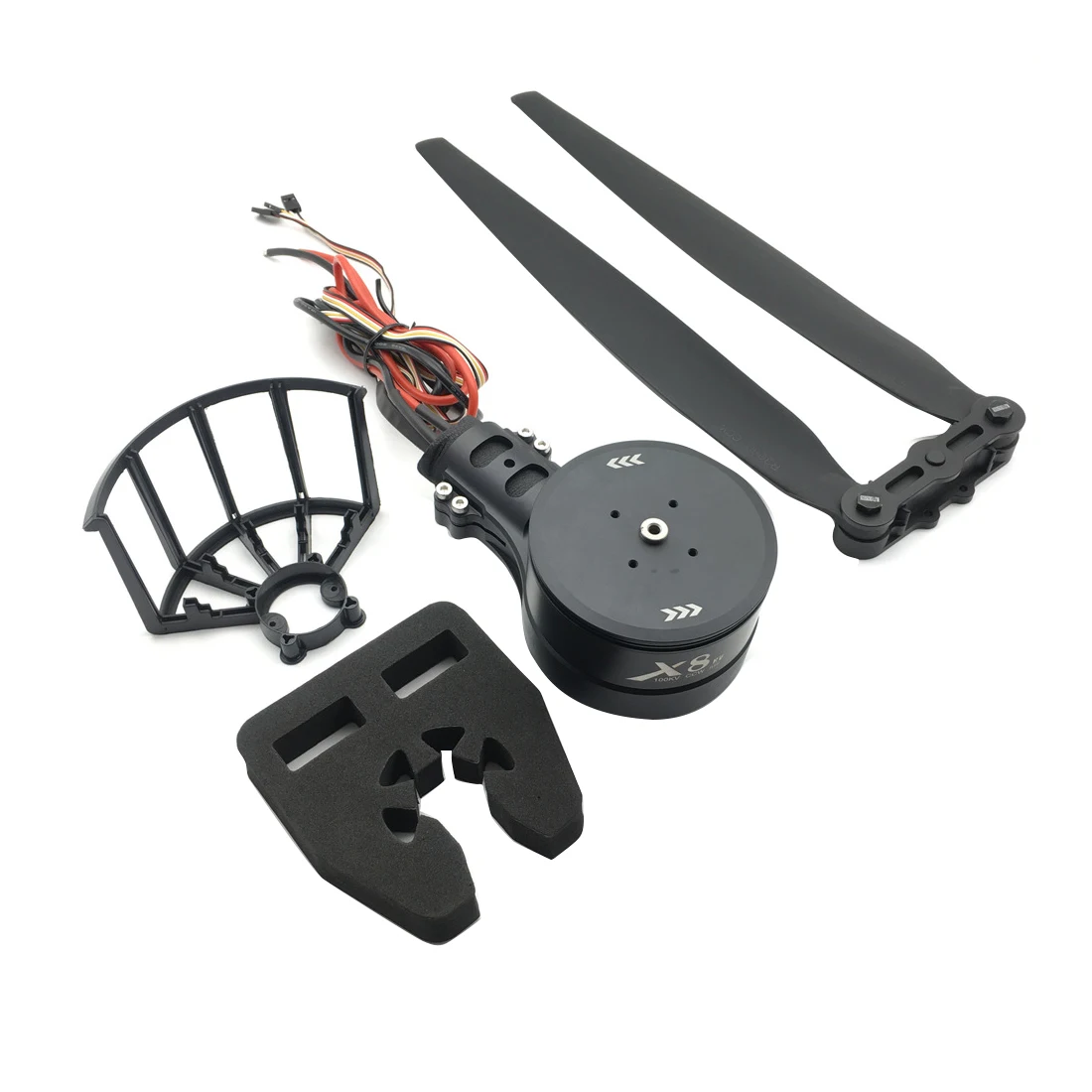

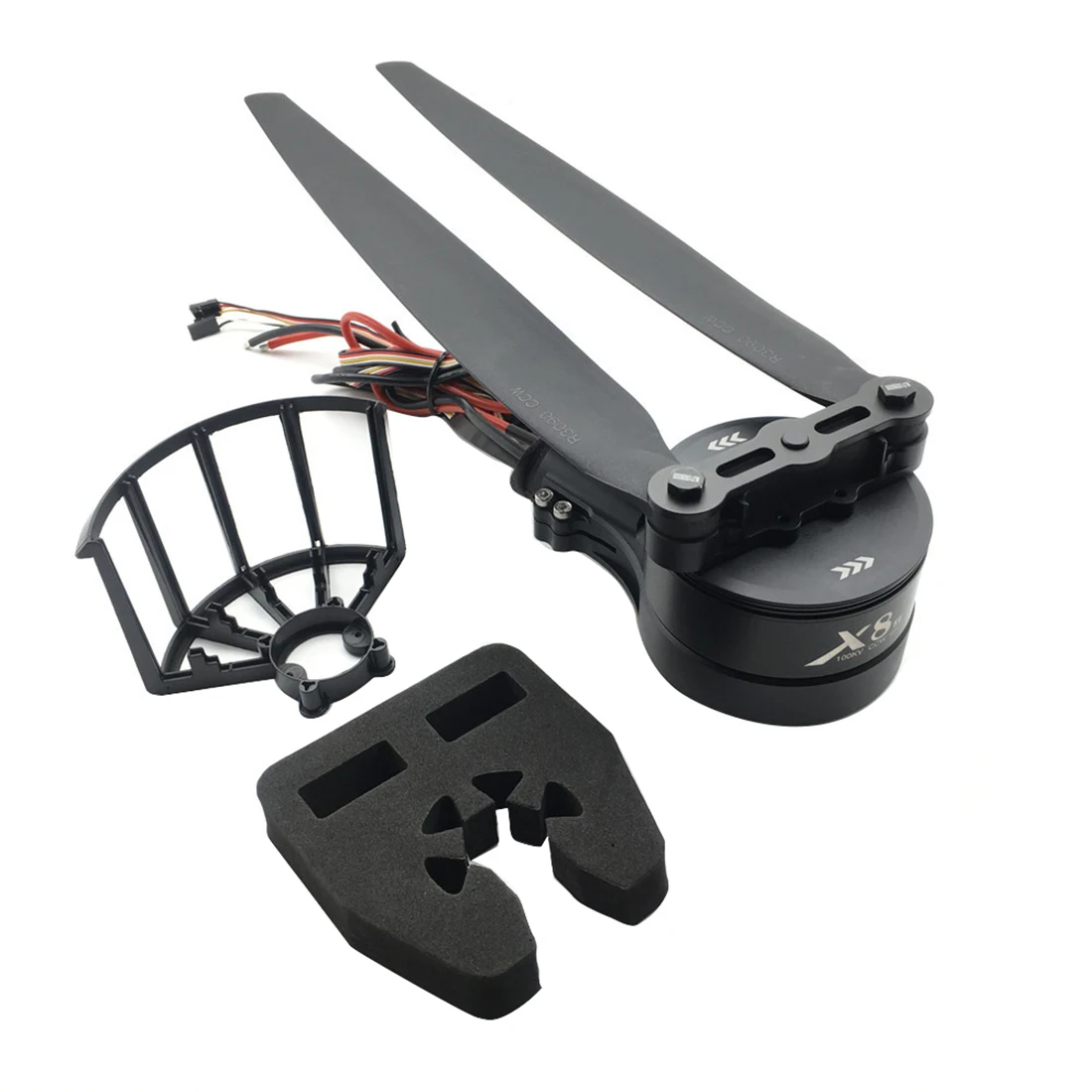

Parcel Include:

1*100KV motor(CW or CCW) Optinal

1*80A ESC

1*pair 3090 propeller

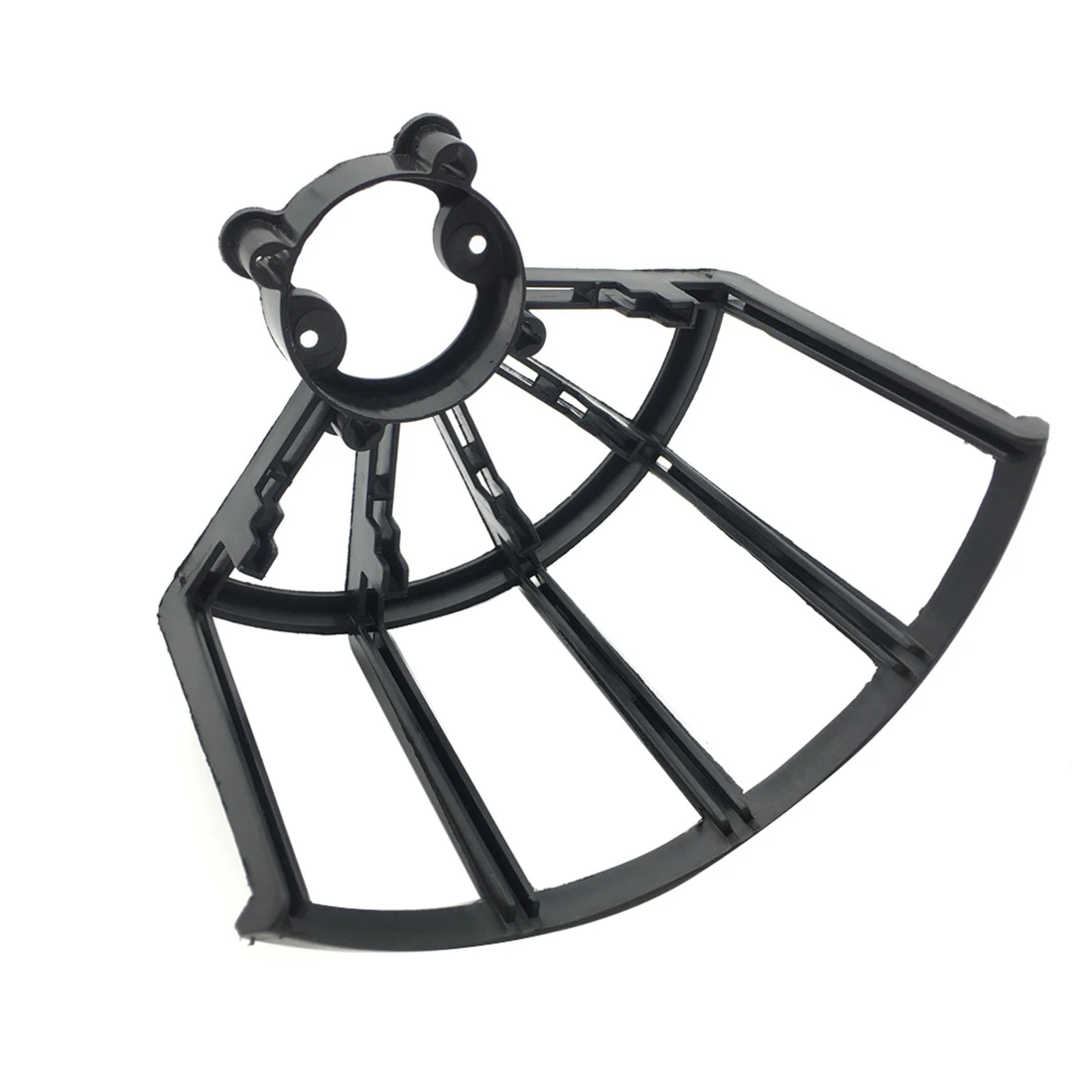

other parts(as the main picture show for you)
