Features:
Special core program for multi-rotor controllers greatly improves throttle response.
Specially optimized software for excellent compatibility with disc-type motors.
All settings except the "Timing" are preset, making usage simple, highly intelligent and adaptive.
The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.
Compatible with various flight-control systems and supports a signal frequency of up to 621Hz (Note: all throttle signals over 500Hz are non-standard signals) .
Special drive chip has much better MOSFET driving effect than common driving circuit consisted of discrete components.
MOSFET with extra-low resistance brings high performance and great current endurance.
Specifications:
Brand: Hobbywing
Model: XRotor 40A
Con.Current: 40A
Peak Current(10s): 60A
BEC: NO
LiPo Battery: 2-4S
Programmable Item: Timing(High/Intermediate)
Weight: 45g
Size: 73 * 21 * 10
Suit for: DJI F550 650 680 Quadcopter

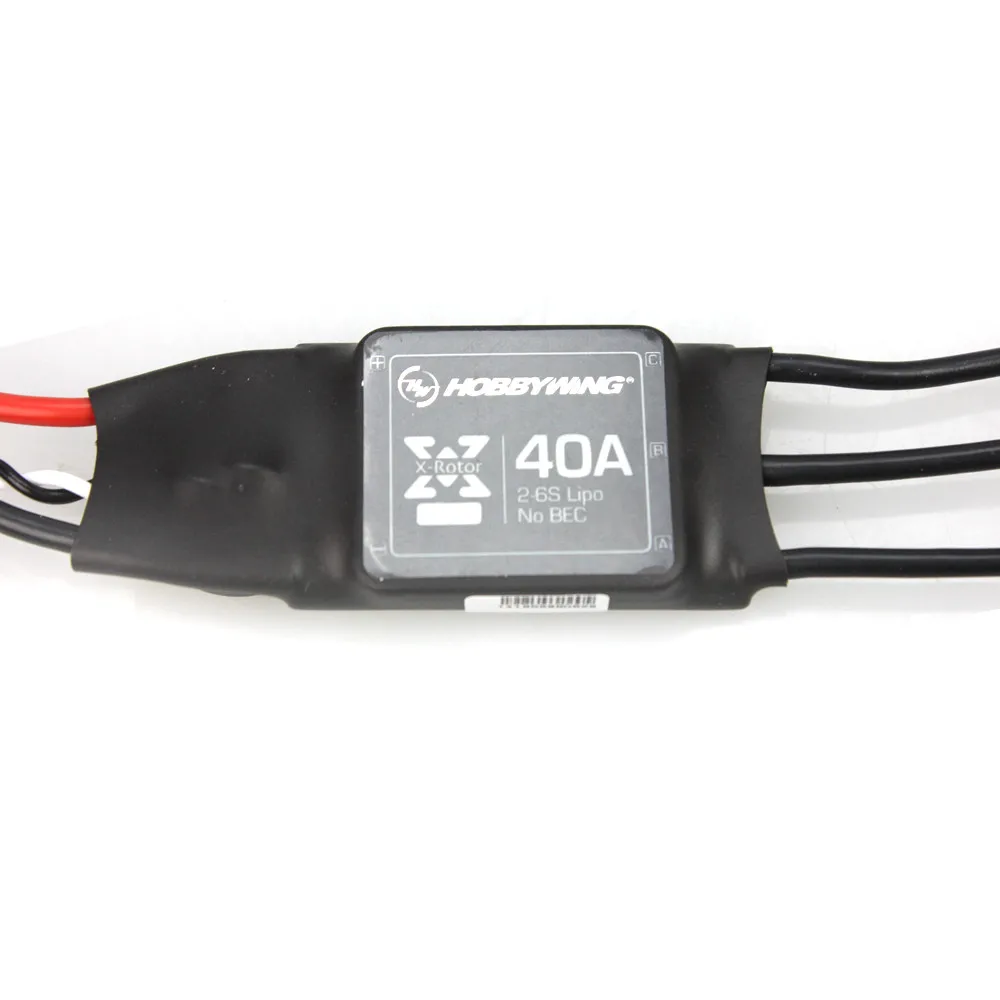

Specifications:
Brand: Hobbywing
Model: XRotor 40A
Con.Current: 40A
Peak Current(10s): 60A
BEC: NO
LiPo Battery: 2-4S
Programmable Item: Timing(High/Intermediate)
Weight: 26g
Size: 68 * 25 * 8.7
Suit for: DJI F550 650 680 Quadcopter
Specifications:
Brand: Hobbywing
Model: XRotor 20A
Con.Current: 20A
Peak Current(10s): 30A
BEC: NO
LiPo Battery: 3-4S
Programmable Item: Timing(High/Intermediate)
Weight: 14g / 1Pcs
Size: 52.4 * 21.5 * 7
Suit for: 330 450 Class Quadcopter

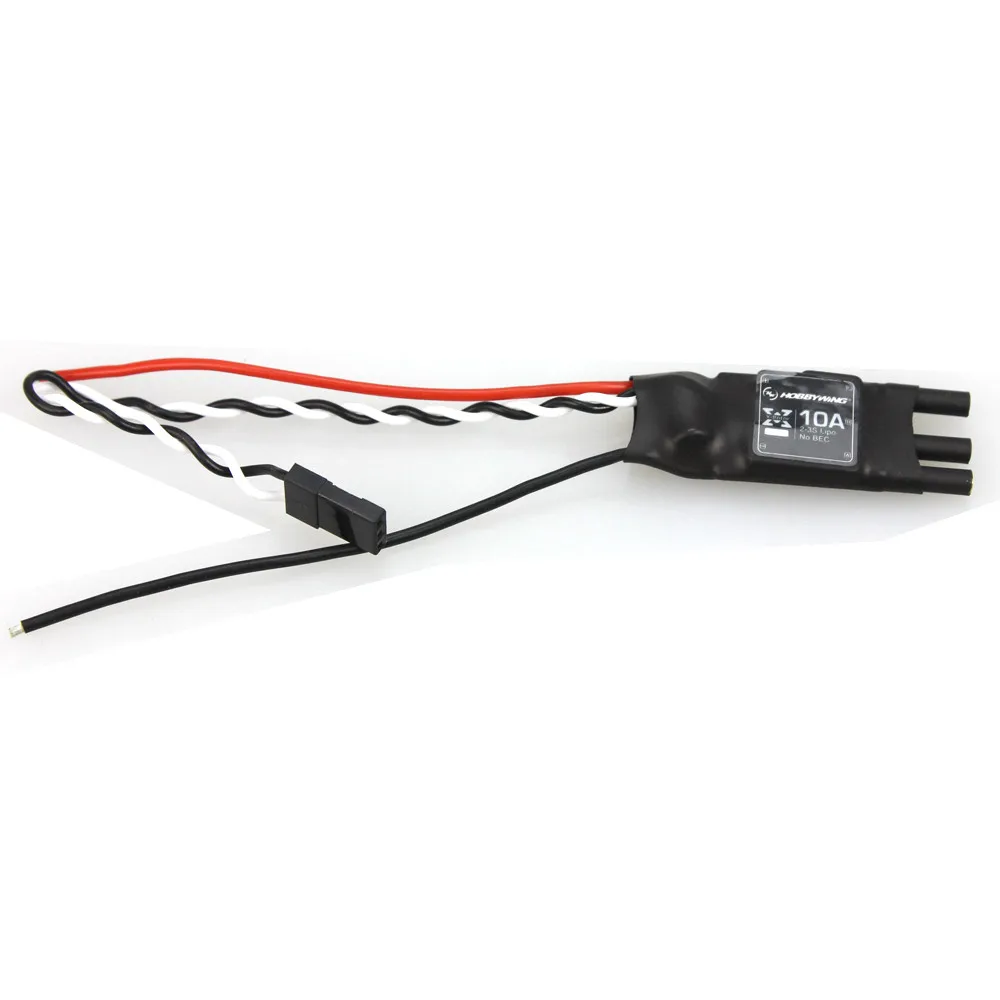

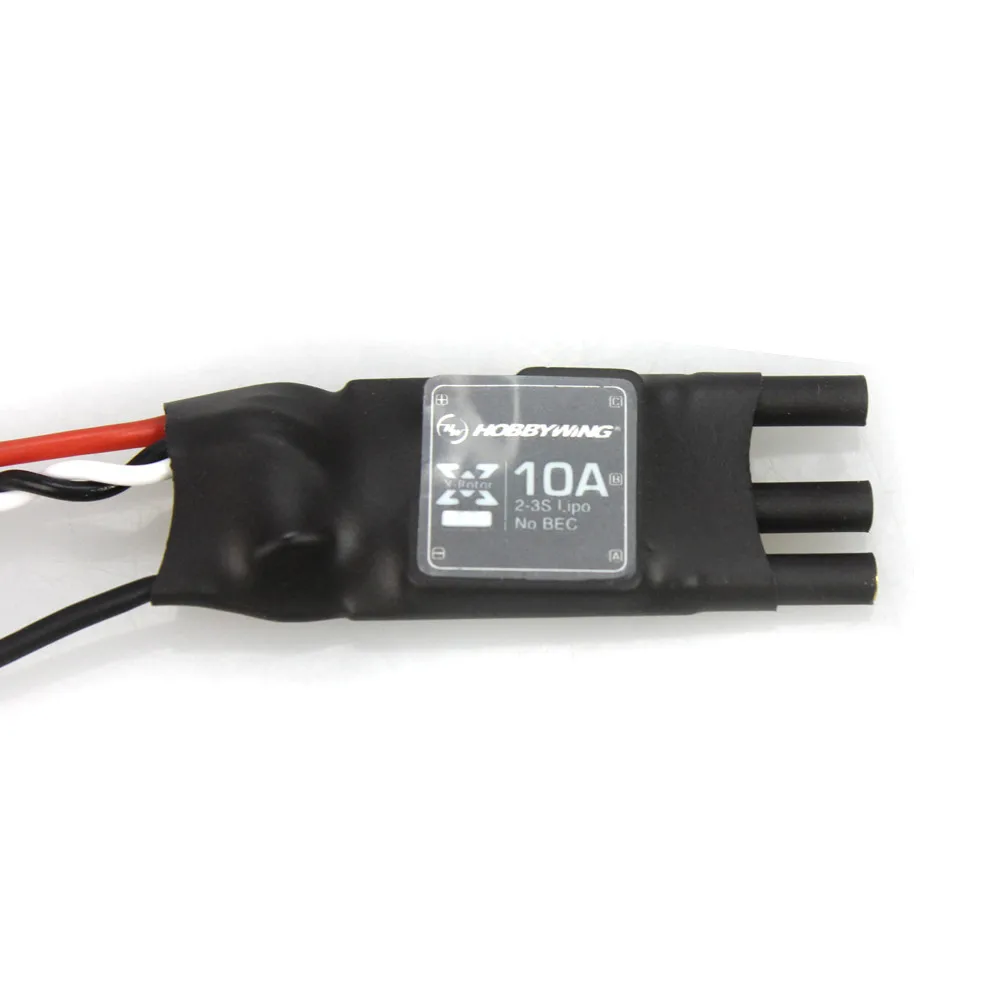

Specifications:
- Continuous current: 10A
- Burst current: 15A@10S
- No BEC output
- Battery: 2-3S
- Weight: 6.5g
- Dimension: 36.5*16.4*4.1mm
- Suit for 250mm wheelbase multicopters
